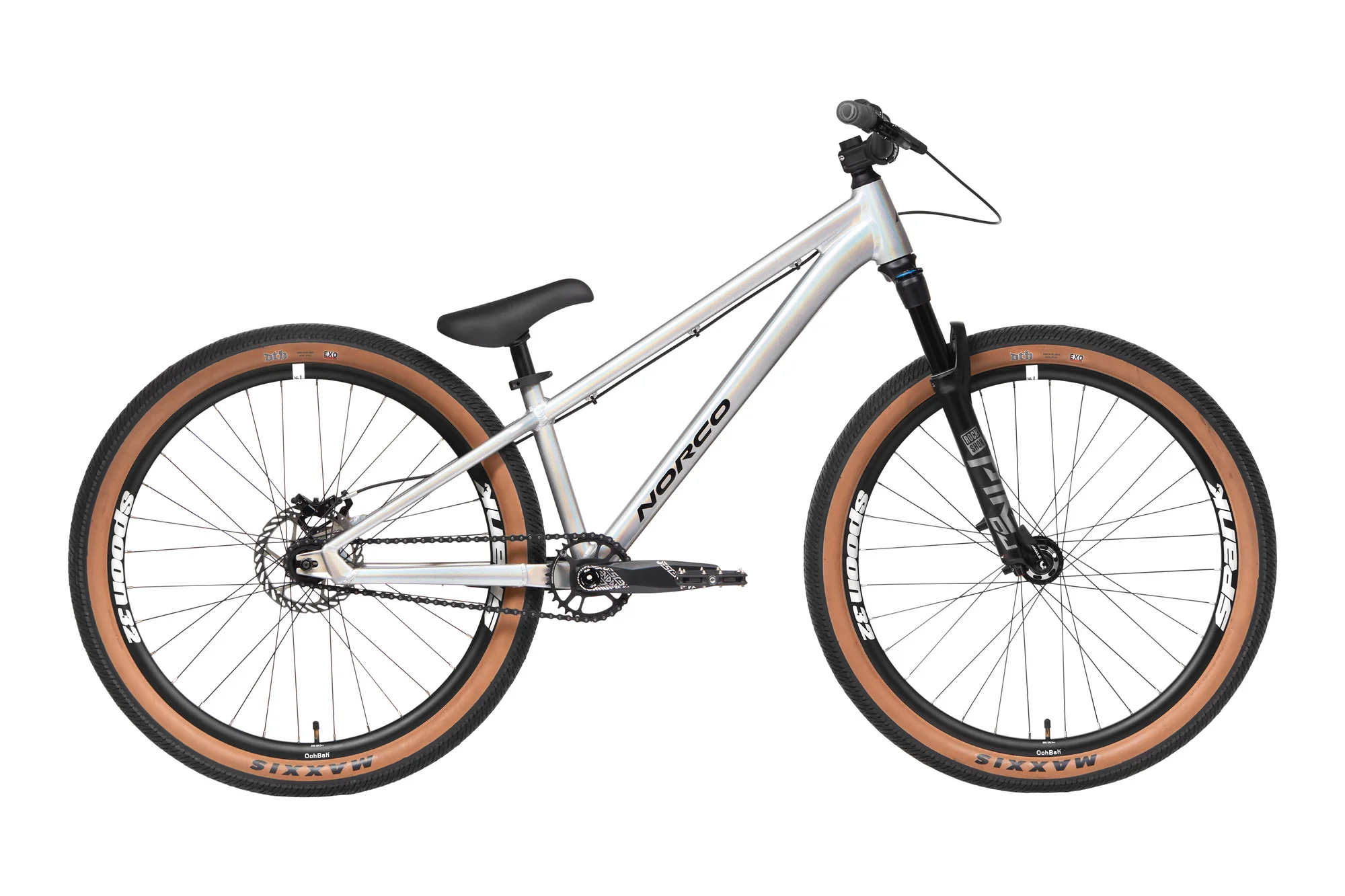

The Rampage Team is the ultimate evolution in Dirt Jumpers with a light frame that gets up to speed fast with the perfect mix of agility and stability.

The Rampage Team is Dirt Jump hungry.

It’s purpose-built for big air and features components hand-selected to rip.

REASONS IT'S RAD

• How your bike looks is just as important as how it rides.
• Lightweight aluminum frame built to last.
• Hand-picked components for function and reliability.
• Evolved frame features push the potential.
• Find your perfect ride.

SPECS

• FRAME - X6 Aluminum DJ 26"
• FORK - RockShox Pike DJ, 100mm Travel, Solo Air
• CRANKSET - Truvativ Descendant, 30T, 170mm (S, M), 175mm (L)
• BOTTOM BRACKET - SRAM DUB, BSA
• CASSETTE - 14T Single Speed
• CHAIN - KMC Z1, Black
• FRONT BRAKE - Tektro MD-280 Mechanical Disc
• FRONT BRAKE ROTOR - Tektro 160mm
• REAR BRAKE - SRAM Guide T, extra long 1800mm hose
• REAR BRAKE ROTOR - SRAM 160mm
• BRAKE LEVERS - Tektro Front, SRAM Guide Rear
• HANDLEBAR - Spank Spoon, 385mm, 40mm Rise
• STEM - Spank Spoon, 40mm Length, 31.8mm Clamp
• SEATPOST - Pivotal Stealth II, 6061 Aluminum, 27.2mm
• HEADSET - FSA Sealed Bearing, Tapered
• SADDLE - Norco/Pivotal thick padded, grip cover
• GRIPS - Norco, Small Flange
• PEDALS - VP 539 resin flat, metal pins
• SEATPOST CLAMP - Alloy QR
• FRONT HUB - Novatec Sealed Bearing, 15x100mm, 6 Bolt
• REAR HUB - Novatec Sealed Bearing, Single Speed Cassette, 6 Bolt
• RIMS - Spank Spoon, 26", 32H
• FRONT TIRE - Maxxis DHT folding 2.3
• REAR TIRE - Maxxis DHT folding 2.3
• SPOKES/NIPPLES - Sapim Stainless, Black

GEOMETRY

	S	M	L
Wheel Size	26"	26"	26"
Travel (mm front)	100
Reach	430	405	380
Stack	569	564	559
Head Tube Angle	69
Fork Offset	40
Seat Tube Length	300
Effective Seat Tube Angle	73
Rear Centre Length	389
Bottom Bracket Rise/Drop	-20
Bottom Bracket Height	322
Horizontal Top Tube	604	577	551
Wheelbase	1072	1045	1018
Standover	577	576	581
Head Tube Length	120	115	110
Trail	88
Stem Length	35
Crank Length	170
Tire Size	2.0-2.3"
