Norco Range VLT C2

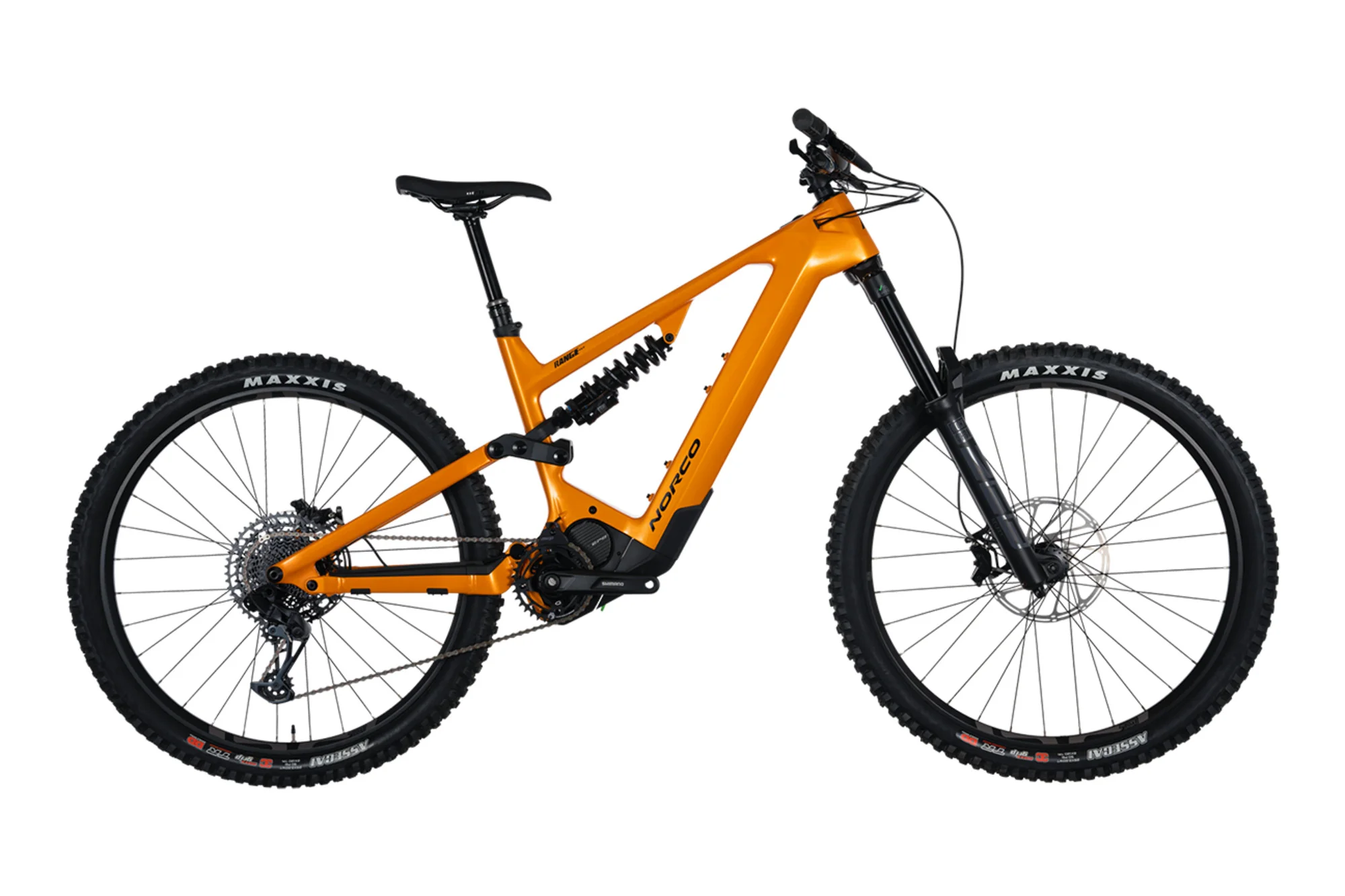

Product image 1

Norco Range VLT C2

The Range VLT C2 climbs faster than a World Cup XC pro and tackles Big Mountain and Enduro rides with all the confidence and capability the backwoods of British Columbia demands.

REASONS IT'S RAD
  • Multiple models to make it your own.
  • Best-in-class Shimano STEPS EP8 Drive System.
  • Custom select your own battery capacity.
  • Removable battery for easy charging and one-tool swaps.
  • Features the Ride Aligned™ Design System.
  • Robust components for performance and durability.
Big Mountain performance and Gen 3 VLT technology.

Shimano’s EP8 drive system combines high torque electric assist with your choice of 540Wh, 720Wh or 900Wh in-tube batteries.



SPECS

  • FRAME - Carbon Front Triangle and Seatstay, Aluminum Chainstay, 170mm Travel, Ride Aligned™
  • FORK - RockShox ZEB Select, 180mm, 44mm Offset, 1.8" Tapered, E-Rated
  • REAR SHOCK - RockShox Super Deluxe Coil Spring Select+, Custom Tune, 230x62.5mm, 400lb/in (S), 450lb/in (M), 500lb/in (L), 550lb/in (XL)
  • REAR SHIFTER - SRAM GX Eagle Single Click Trigger
  • REAR DERAILLEUR - SRAM GX Eagle Lunar
  • CRANKSET - Shimano FC-EM600, 34T, 165mm
  • CASSETTE - SRAM PG 1210 Eagle, 11-50T
  • CHAIN - SRAM SX Eagle
  • FRONT BRAKE - SRAM Code, 4 Piston, Metallic Pads
  • FRONT BRAKE ROTOR - SRAM CenterLine, 220mm
  • REAR BRAKE - SRAM Code, 4 Piston, Metallic Pads
  • REAR BRAKE ROTOR - SRAM CenterLine, 200mm
  • HANDLEBAR - Butted 6061 Alloy, 800mm, 25mm Rise
  • STEM - Aluminum, 40mm Length, 35mm Clamp
  • SEATPOST - TranzX YS105 Adjustable Dropper, 34.9mm, 125mm (S), 150mm (M), 170mm (L), 200mm (XL)
  • DROPPER LEVER - Norco Dropper Lever
  • HEADSET - FSA No.55R, Sealed Bearing
  • SADDLE - WTB Volt 250 Sport
  • GRIPS - DMR DeathGrip A20 Soft, Thin (S, M), Thick (L, XL)
  • FRONT HUB - DT Swiss 370, 15x110mm Boost, 6 bolt
  • REAR HUB - DT Swiss 370, 12x148mm Boost, HG, 6 bolt
  • RIMS - e*thirteen LG1 DH, 32H, 29"
  • FRONT TIRE - Maxxis Assegai 2.5" 3C MaxxGrip/DD/TR/WT
  • REAR TIRE - Maxxis Assegai 2.5" 3C MaxxGrip/DD/TR/WT
  • SPOKES/NIPPLES - DT Swiss Stainless Butted Front, Alpine Rear
  • VALVES - Tubeless Presta
  • SEALANT - Stan's - 200ml
  • MOTOR - Shimano STEPS EP8
  • BATTERY - Sold Separately. Removable. 900Wh, 720Wh and 540Wh Options.

Geometry

S M L XL
Wheel Size 29" 29" 29" 29"
Travel (mm front/mm rear)
180/170
Reach 415 445 475 505
Stack 622 632 641 650
Head Tube Angle
63.0
Fork Offset
44
Seat Tube Length 395 415 440 455
Effective Seat Tube Angle 76.2 76.5 76.9 77.2
Rear Centre Length
462
Bottom Bracket Drop
19
Bottom Bracket Height
356
Horizontal Top Tube 569 598 625 654
Wheelbase 1232 1267 1301 1336
Standover 707 709 726 737
Head Tube Length 100 110 120 130
Trail
140
Recommended Seatpost Drop 125 150 170 200
Maximum Post Insertion 225 250 275 300
Stem Length
40
Crank Length
165
Tire Size
2.35" – 2.6"
$1,277.25

Original: $3,649.30

-65%
Norco Range VLT C2—

$3,649.30

$1,277.25

Product Information

Shipping & Returns

Description

The Range VLT C2 climbs faster than a World Cup XC pro and tackles Big Mountain and Enduro rides with all the confidence and capability the backwoods of British Columbia demands.

REASONS IT'S RAD
  • Multiple models to make it your own.
  • Best-in-class Shimano STEPS EP8 Drive System.
  • Custom select your own battery capacity.
  • Removable battery for easy charging and one-tool swaps.
  • Features the Ride Aligned™ Design System.
  • Robust components for performance and durability.
Big Mountain performance and Gen 3 VLT technology.

Shimano’s EP8 drive system combines high torque electric assist with your choice of 540Wh, 720Wh or 900Wh in-tube batteries.



SPECS

  • FRAME - Carbon Front Triangle and Seatstay, Aluminum Chainstay, 170mm Travel, Ride Aligned™
  • FORK - RockShox ZEB Select, 180mm, 44mm Offset, 1.8" Tapered, E-Rated
  • REAR SHOCK - RockShox Super Deluxe Coil Spring Select+, Custom Tune, 230x62.5mm, 400lb/in (S), 450lb/in (M), 500lb/in (L), 550lb/in (XL)
  • REAR SHIFTER - SRAM GX Eagle Single Click Trigger
  • REAR DERAILLEUR - SRAM GX Eagle Lunar
  • CRANKSET - Shimano FC-EM600, 34T, 165mm
  • CASSETTE - SRAM PG 1210 Eagle, 11-50T
  • CHAIN - SRAM SX Eagle
  • FRONT BRAKE - SRAM Code, 4 Piston, Metallic Pads
  • FRONT BRAKE ROTOR - SRAM CenterLine, 220mm
  • REAR BRAKE - SRAM Code, 4 Piston, Metallic Pads
  • REAR BRAKE ROTOR - SRAM CenterLine, 200mm
  • HANDLEBAR - Butted 6061 Alloy, 800mm, 25mm Rise
  • STEM - Aluminum, 40mm Length, 35mm Clamp
  • SEATPOST - TranzX YS105 Adjustable Dropper, 34.9mm, 125mm (S), 150mm (M), 170mm (L), 200mm (XL)
  • DROPPER LEVER - Norco Dropper Lever
  • HEADSET - FSA No.55R, Sealed Bearing
  • SADDLE - WTB Volt 250 Sport
  • GRIPS - DMR DeathGrip A20 Soft, Thin (S, M), Thick (L, XL)
  • FRONT HUB - DT Swiss 370, 15x110mm Boost, 6 bolt
  • REAR HUB - DT Swiss 370, 12x148mm Boost, HG, 6 bolt
  • RIMS - e*thirteen LG1 DH, 32H, 29"
  • FRONT TIRE - Maxxis Assegai 2.5" 3C MaxxGrip/DD/TR/WT
  • REAR TIRE - Maxxis Assegai 2.5" 3C MaxxGrip/DD/TR/WT
  • SPOKES/NIPPLES - DT Swiss Stainless Butted Front, Alpine Rear
  • VALVES - Tubeless Presta
  • SEALANT - Stan's - 200ml
  • MOTOR - Shimano STEPS EP8
  • BATTERY - Sold Separately. Removable. 900Wh, 720Wh and 540Wh Options.

Geometry

S M L XL
Wheel Size 29" 29" 29" 29"
Travel (mm front/mm rear)
180/170
Reach 415 445 475 505
Stack 622 632 641 650
Head Tube Angle
63.0
Fork Offset
44
Seat Tube Length 395 415 440 455
Effective Seat Tube Angle 76.2 76.5 76.9 77.2
Rear Centre Length
462
Bottom Bracket Drop
19
Bottom Bracket Height
356
Horizontal Top Tube 569 598 625 654
Wheelbase 1232 1267 1301 1336
Standover 707 709 726 737
Head Tube Length 100 110 120 130
Trail
140
Recommended Seatpost Drop 125 150 170 200
Maximum Post Insertion 225 250 275 300
Stem Length
40
Crank Length
165
Tire Size
2.35" – 2.6"
