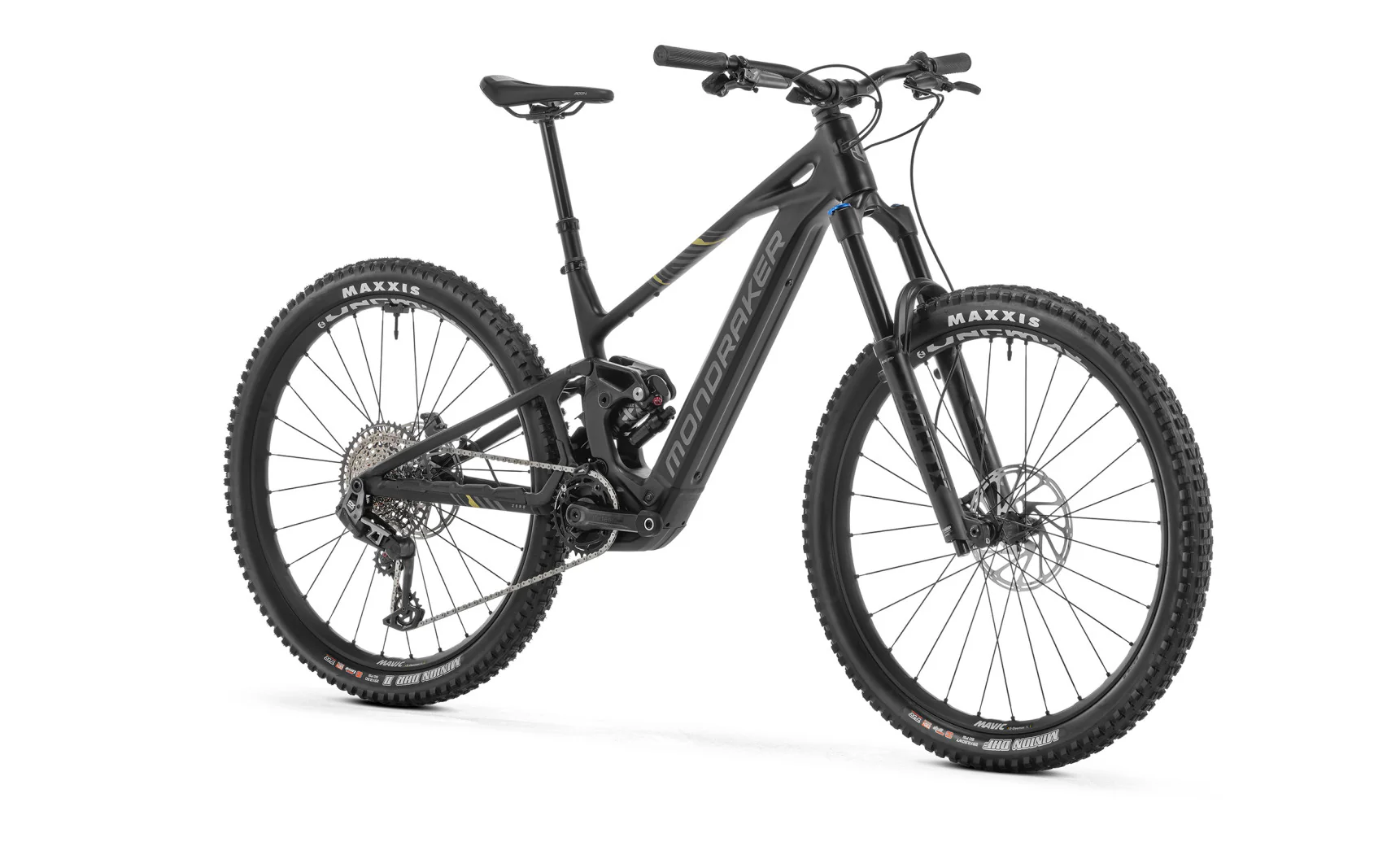

The RR build is a step up if you want to get even more out of your SLY. FOX suspension provides the 160mm Fox 36 29 Float Performance GRIP fork and a Fox Float X Performance EVOL shock. SRAM Code Bronze Stealth 4 piston brakes with 200mm rotors keep things from getting out of hand on the steeps, and Mavic E-CrossTrail SL 30mm wheels offer the best balance of compliance / rigidity out there. ONOFF have you covered with a selection of components from the all new S6 range and include a carbon fibre bar, a stem, grips and the Pija seatpost with lengths varying from 140mm to 210mm depending on frame size. The SLY RR comes in the gorgeous Black / Nimbus Grey / Tonic Gold colourway.

Specs



Frame

• 6061 Alloy Stealth Evo, hydroformed tubing

• Updated Zero Suspension System | 150mm travel

• Forward Geometry | Internal battery

• Boost 12x148mm rear axle | Tapered head tube

• One-piece Monoblock upper link

• HHG internal cable routing | MAX capacity sealed bearings

• Oversize 15mm axles | Exclusive plastic motor covers

Sizes

• S: 380mm

• M: 410mm

• ML: 435mm

• L: 460mm

• XL: 490mm

Rear Shock

• Fox Float X Performance EVOL | 185x55mm

• Trunnion top mount | 30x8mm bottom bushings

• 2-position compression (Open/Firm), rebound, air preload

Shock Settings

• CS40 compression | RL60 rebound

• Rezi B40, LML

• 0.2 volume spacer

Fork

• Fox 36 29 Float Performance GRIP | 160mm

• 3-position compression | Sweep adjust, low-speed rebound, air preload

• Tapered steerer tube | Boost 15x110mm axle | 44mm offset

Headset

• Acros custom IS52/ZS56

• Internal cable routing with sealing plugs (no blocklock)

• 1-1/8" – 1.5" head tube

Stem

• Onoff S6 | 30mm | 0° rise

• 6061 forged alloy + CNC | 31.8mm barbore

Handlebar

• Onoff S6 1.0 7050 alloy

• Rise: 25mm (L/XL: 1.5 rise) | Width: 800mm

• 8° backsweep | 5° upsweep | 31.8mm barbore

Grips

• Onoff Forest | CNC lock-on | 135mm

Seatpost

• Onoff Pija dropper | Internal routing | 31.6mm

• 1X Remote lever with bearing

• Travel by size:

  • S: 140–115mm

  • M: 160–135mm

  • ML: 180–155mm

  • L / XL: 210–185mm

Saddle

• Fizik Terra Aidon X5 | 145mm

Brakes

• Front & Rear: SRAM Code Bronze Stealth | Oversized 4-piston calipers

• Rotors: Centerline 200mm | IS 6-bolt | One-piece

• Pads: Steel-backed metal sintered

• Brake Lever: SRAM Code Bronze Stealth

  • SwingLink, lever pivot bushings

  • Tool-free reach adjust

Wheels

• Rims: Mavic E-CrossTrail SL | 29" | 30mm internal width

  • Hookless | Tubeless ready | 28 spokes

• Spokes: Mavic 28 straight-pull double-butted

• Front Hub: Mavic Infinity | Boost 15x110mm | IS 6-bolt

• Rear Hub: Mavic Infinity | ID360 freewheel | Boost 12x148mm

  • IS 6-bolt | XD Freehub

Tires

• Front: Maxxis Minion DHF 29x2.5 WT

  • Tubeless ready | 3C MAXX GRIP | EXO+ | 60TPI | Folding bead

• Rear: Maxxis Minion DHR II 29x2.5 WT

  • Tubeless ready | 3C MAXX TERRA | EXO+ | 60TPI | Folding bead

Drivetrain

• Crankset: eThirteen Helix Core ESpec Plus | 160mm (all sizes)

• Chainring: SRAM X-Sync 2 Eagle 34T | Steel | Narrow-wide | 104 BCD

• Chain: SRAM GX Eagle T-Type | 12-speed | Powerlock

• Rear Derailleur: SRAM GX Eagle AXS T-Type | 12-speed

• Shifter: SRAM Eagle AXS Pod MMX | 12-speed

• Cassette: SRAM XS-1275 | 10–52T | T-Type | 12-speed

Electronics

• Display: Purion 400 / Bosch Mini Remote / Bosch System Controller

• Motor: Bosch Performance Line SX | GEN4 SMART SYSTEM | 20 mph | Diagonal, Wide

• Battery: Bosch Compact Powertube | 400Wh

Weight

• 45.6 lbs

Geometry

	Frame size	S	M	M/L	L	XL
A	Seattube length	380 mm	410 mm	435 mm	460 mm	490 mm
B	Toptube length	595 mm	615 mm	635 mm	660 mm	685 mm
C	Bottom bracket drop	-22 mm	-22 mm	-22 mm	-22 mm	-22 mm
D	Bottom bracket height	350 mm	350 mm	350 mm	350 mm	350 mm
E	Chainstay length	455 mm	455 mm	455 mm	455 mm	455 mm
F	Seat tube angle	74º	74º	74º	74º	74º
G	Effective seattube angle	77º	77º	77º	77º	77º
H	Headtube angle	64,5º	64,5º	64.5º	64,5º	64,5º
I	Fork Offset	44 mm	44 mm	44 mm	44 mm	44 mm
J	Wheelbase	1225 mm	1250 mm	1265 mm	1290 mm	1315 mm
K	Headtube length	120 mm	120 mm	130 mm	140 mm	150 mm
L	Reach	440 mm	460 mm	480 mm	500 mm	520 mm
M	Stack	633 mm	633 mm	642 mm	651 mm	660 mm
