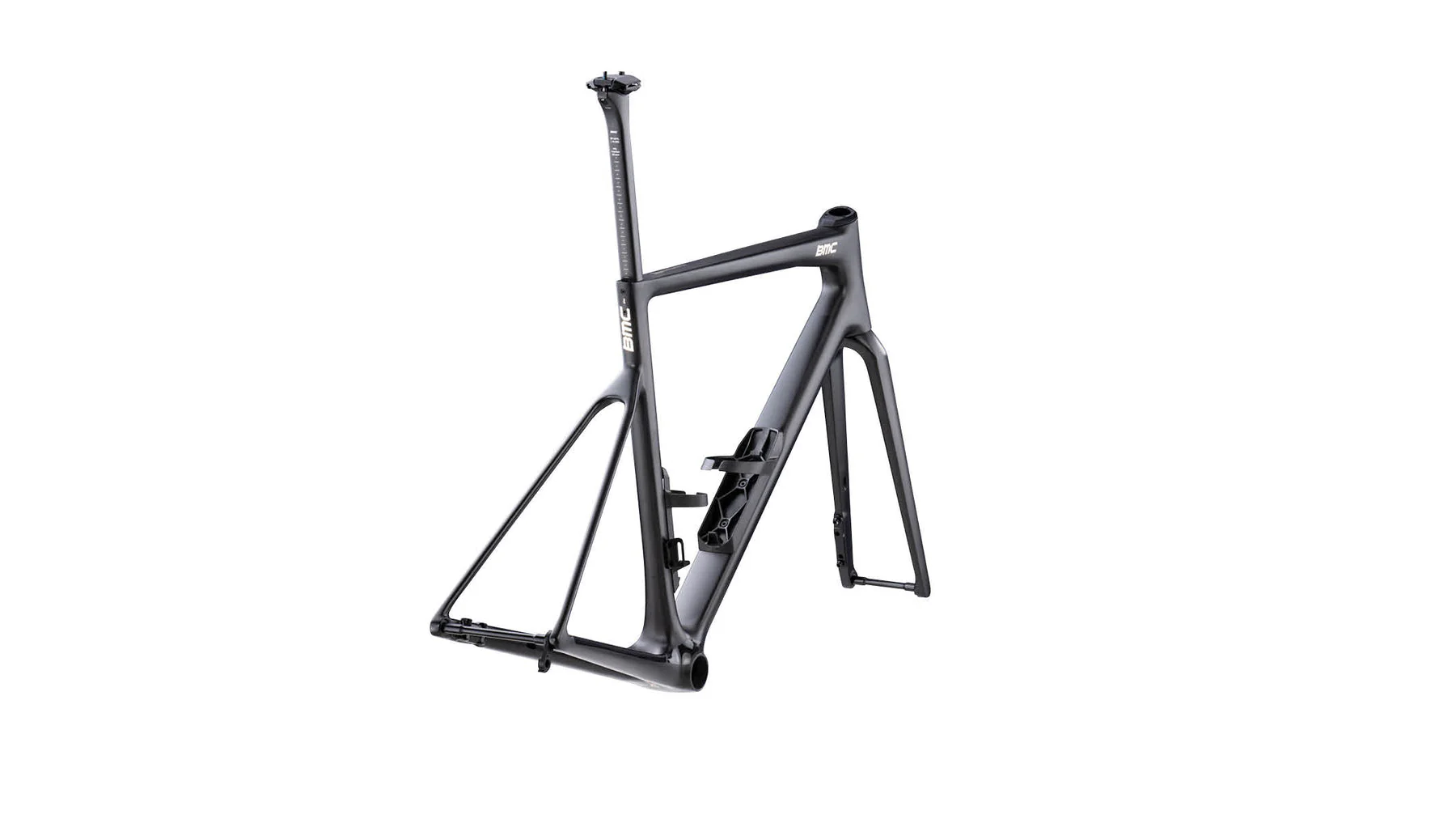

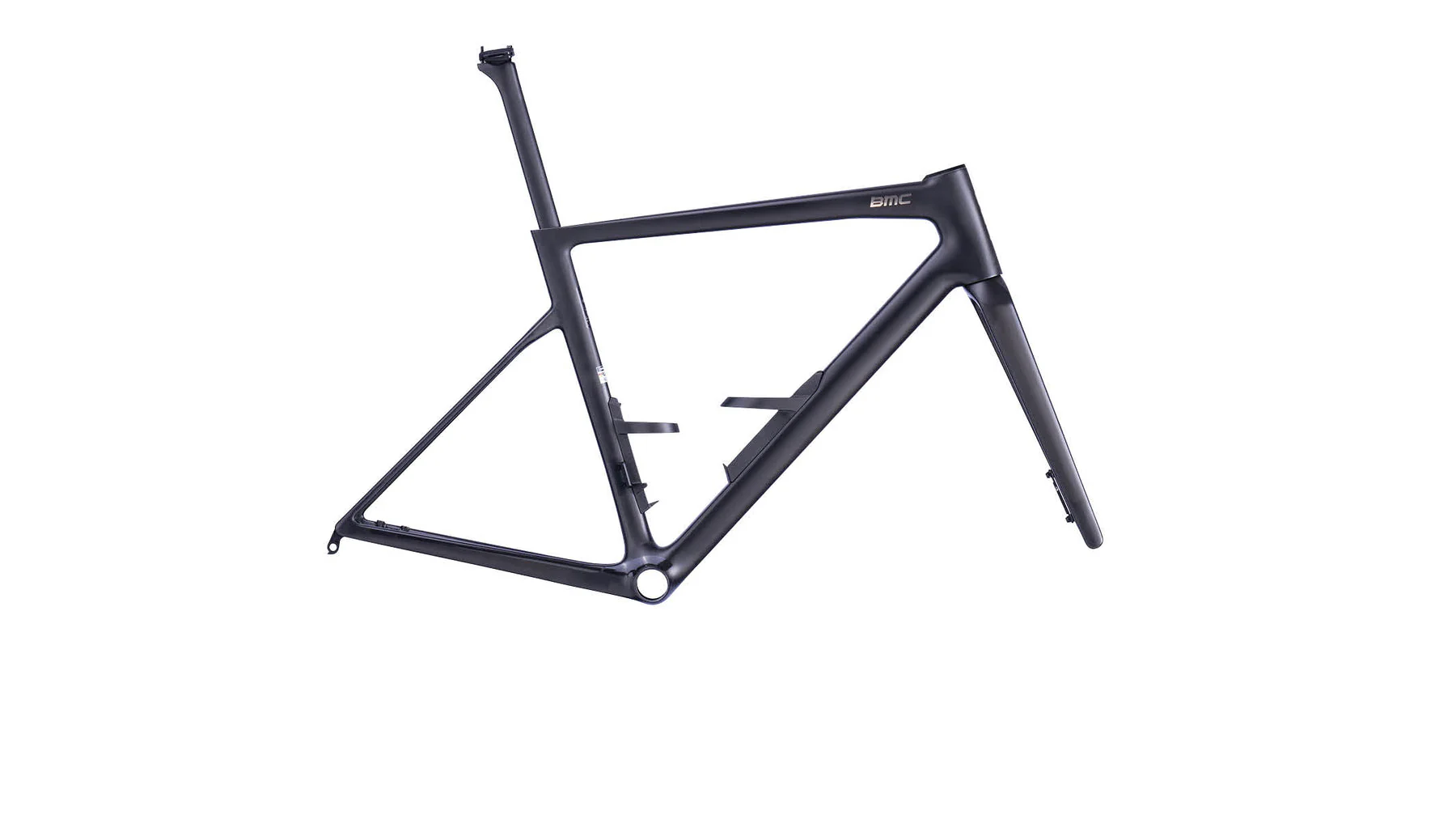

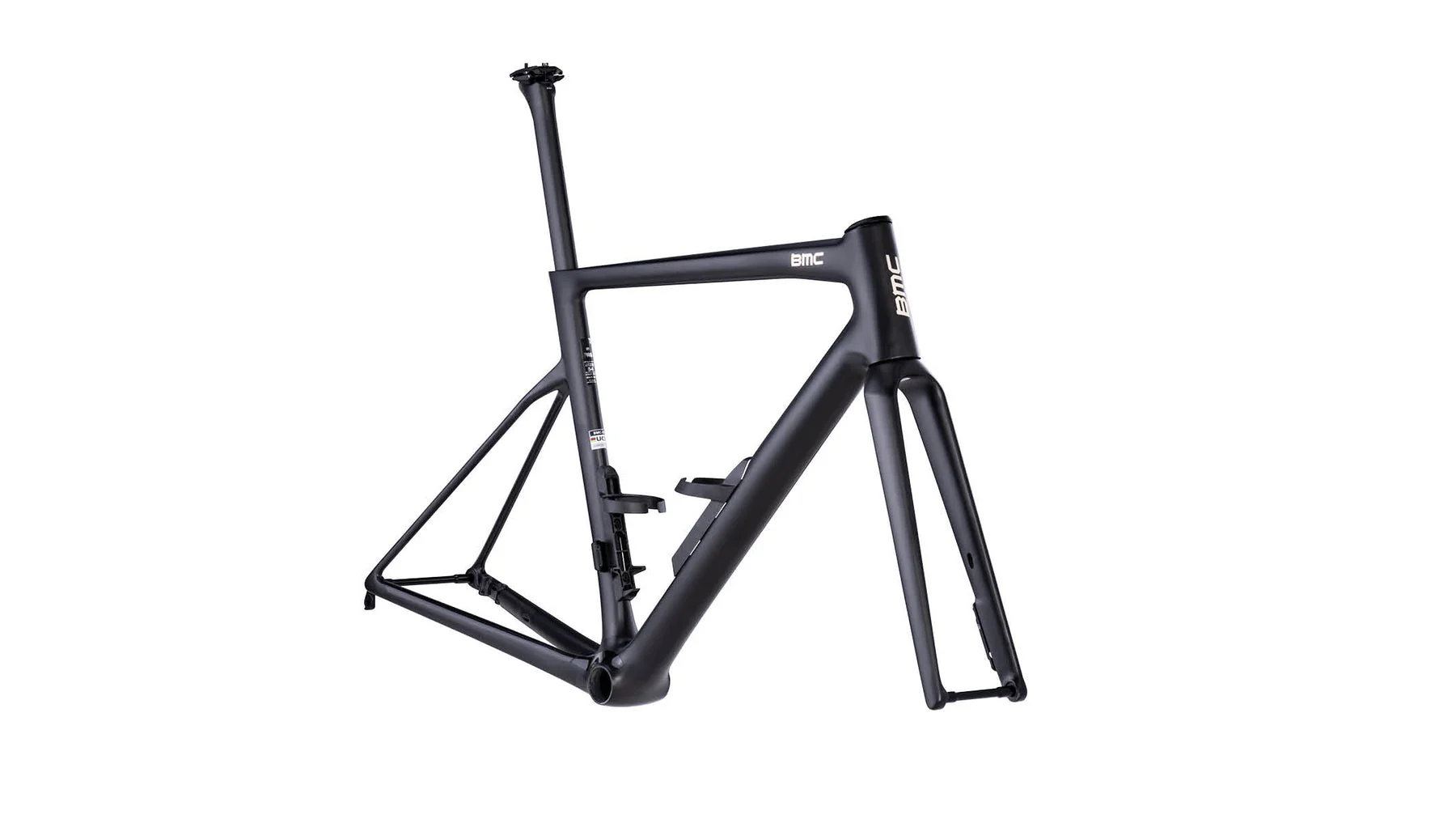

2026 BMC Teammachine SLR 01 Frameset DI

Product image 1
1 / 3

2026 BMC Teammachine SLR 01 Frameset DI

Teammachine SLR 01 is a true BMC by definition. With its high stiffness score and the lightest carbon "01" layup, mountains found their match. More speed you ask? We built superior aerodynamics making it almost as fast as a Teammachine R 01. All this comes with no compromise: our Impec Lab engineers made sure we had a full BMC ride feel including TCC Race compliance, sharp handling and a bike geometry that fit your needs.


Specs

Frame:
Teammachine SLR 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine SLR 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61



Seat

Seatpost:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 10mm Offset



Accessories

In the Box:
Aerocore Bottle Cages | Shimano Direct Mount RD hanger and Classic SRAM/Shimano RD hanger

Additional Information

Tire Clearance:
32mm measured tire

Weight:
1465g | Size 54 as pictured with all accessories

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)


Geometry

Size 47 51 54 56 58 61
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 367 377 386 392 401 409
Stack 506 530 550 565 584 608
Bar Drop 127 127 127 127 127 127
Bar Reach 70 70 70 70 70 70
Bar Width 400/436 400/436 400/436 400/436 400/436 400/436
BB Drop 69 69 69 69 69 69
Crank Length 170 170 172.5 172.5 175 175
Fork Length 369 369 369 369 369 369
Fork Rake 48 48 43 43 43 43
Front Center 568 586 589 599 614 630
Head Tube 108 133 149 165 184 211
Head Tube Angle 71.5° 71.5° 72.3° 72.3° 72.3° 72.3°
Rear Center 410 410 410 410 410 410
Seat Angle 74° 74° 73.5° 73.5° 73° 73°
Seat Tube 422 464 491 509 530 555
Seatpost Length 335 335 385 385 405 405
Seatpost Offset 10 10 10 10 10 10
Standover Height 717 752 779 797 817 843
Top Tube 515 532 552 562 582 598
Trail 63 63 63 63 63 63
Wheelbase 968 986 989 1000 1015 1030



Select Color
Select Size
From $1,621.86

Original: $4,633.89

-65%
2026 BMC Teammachine SLR 01 Frameset DI—

$4,633.89

$1,621.86

Product Information

Shipping & Returns

Description

Teammachine SLR 01 is a true BMC by definition. With its high stiffness score and the lightest carbon "01" layup, mountains found their match. More speed you ask? We built superior aerodynamics making it almost as fast as a Teammachine R 01. All this comes with no compromise: our Impec Lab engineers made sure we had a full BMC ride feel including TCC Race compliance, sharp handling and a bike geometry that fit your needs.


Specs

Frame:
Teammachine SLR 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine SLR 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61



Seat

Seatpost:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 10mm Offset



Accessories

In the Box:
Aerocore Bottle Cages | Shimano Direct Mount RD hanger and Classic SRAM/Shimano RD hanger

Additional Information

Tire Clearance:
32mm measured tire

Weight:
1465g | Size 54 as pictured with all accessories

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)


Geometry

Size 47 51 54 56 58 61
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 367 377 386 392 401 409
Stack 506 530 550 565 584 608
Bar Drop 127 127 127 127 127 127
Bar Reach 70 70 70 70 70 70
Bar Width 400/436 400/436 400/436 400/436 400/436 400/436
BB Drop 69 69 69 69 69 69
Crank Length 170 170 172.5 172.5 175 175
Fork Length 369 369 369 369 369 369
Fork Rake 48 48 43 43 43 43
Front Center 568 586 589 599 614 630
Head Tube 108 133 149 165 184 211
Head Tube Angle 71.5° 71.5° 72.3° 72.3° 72.3° 72.3°
Rear Center 410 410 410 410 410 410
Seat Angle 74° 74° 73.5° 73.5° 73° 73°
Seat Tube 422 464 491 509 530 555
Seatpost Length 335 335 385 385 405 405
Seatpost Offset 10 10 10 10 10 10
Standover Height 717 752 779 797 817 843
Top Tube 515 532 552 562 582 598
Trail 63 63 63 63 63 63
Wheelbase 968 986 989 1000 1015 1030
