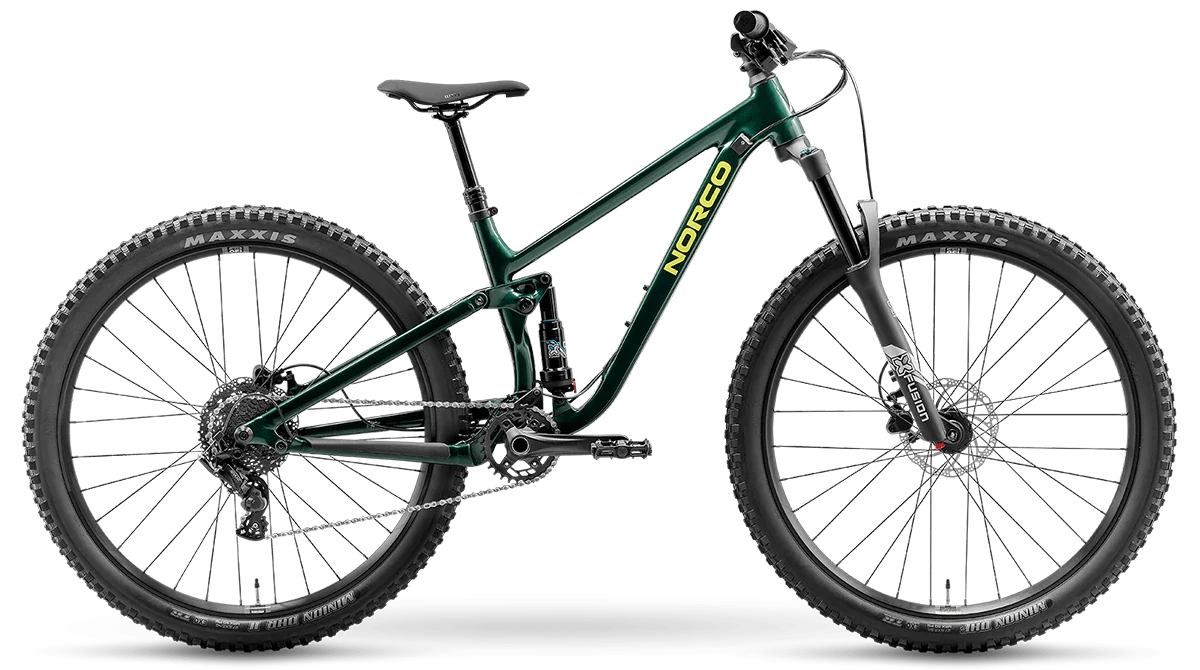

The Fluid FS 27.5” elevates small riders’ trail experience.

Show them everything you love about riding. 

Progressive frame design for a premium, next-level Trail ride.

Details

• Fluid Dynamics
• Holistic design for uncompromised Trail performance.
• Premium Double Butted aluminum frame.
• No-compromise Components
• 27.5” Wheels roll smooth and light.







Specs

Frameset

Frame
6061 Alloy, 120mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™

Fork
X-Fusion RC32 Air, 130mm Travel, 46mm Offset, 15×110mm Boost

Rear Shock
X-Fusion 02 Pro R, 190×42.5mm Standard

---

Drivetrain

Rear Shifter
microSHIFT Advent, 9-speed

Rear Derailleur
microSHIFT Advent, 9-speed, Short Cage, Clutch

Crankset
Prowheel Junior Alloy, 30T, 155mm

Bottom Bracket
Prowheel Cartridge BB

Cassette
microSHIFT Advent, 11–38T, 9-speed

Chain
KMC X9, 9-speed

---

Brakes

Front Brake
Tektro HD-J285, 2-Piston, Resin Pads, 2-finger lever

Front Rotor
Tektro TR160-22, 160mm, 6-bolt

Rear Brake
Tektro HD-J285, 2-Piston, Resin Pads, 2-finger lever

Rear Rotor
Tektro TR160-22, 160mm, 6-bolt

Brake Levers
Tektro HD-J285

---

Components

Handlebar
Norco 6061 Alloy DB, 750mm, 20mm Rise

Stem
Norco 6061, 35mm Length, 31.8mm Clamp

Seatpost
TranzX YSP18BKL, 31.6mm, 100mm Drop, Kids Tune

Headset
Tapered 1-1/8"–1.5" (ZS44/28.6 | ZS56/40)

Saddle
WTB Solano Medium, 142 × 240mm, Steel Rails

Grips
Norco Youth Lock-On, 115mm Length

Seatpost Clamp
Norco Alloy Nutted Clamp, 34.9mm ID

---

Wheels

Front Hub
Formula DC-511, 15×110mm Boost, 32h, 6-bolt

Rear Hub
Formula DC-3248, 12×148mm Boost, HG, 32h, 6-bolt

Rims
WTB ST, 27mm Internal Width, 32h

Front Tire
Maxxis Minion DHF, EXO, 27.5×2.5", Folding

Rear Tire
Maxxis Minion DHR II, EXO, 27.5×2.4", Folding

Geometry
