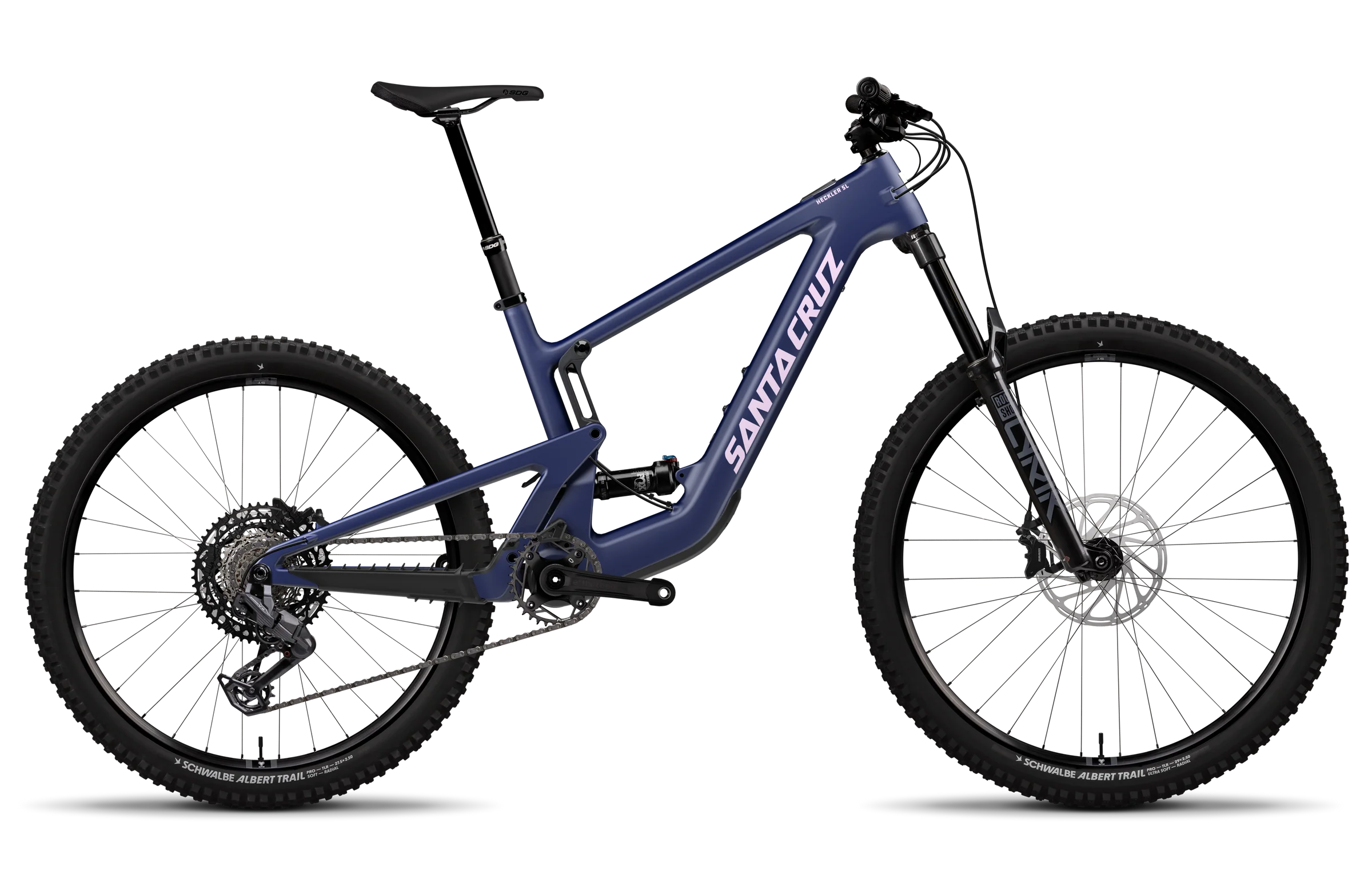

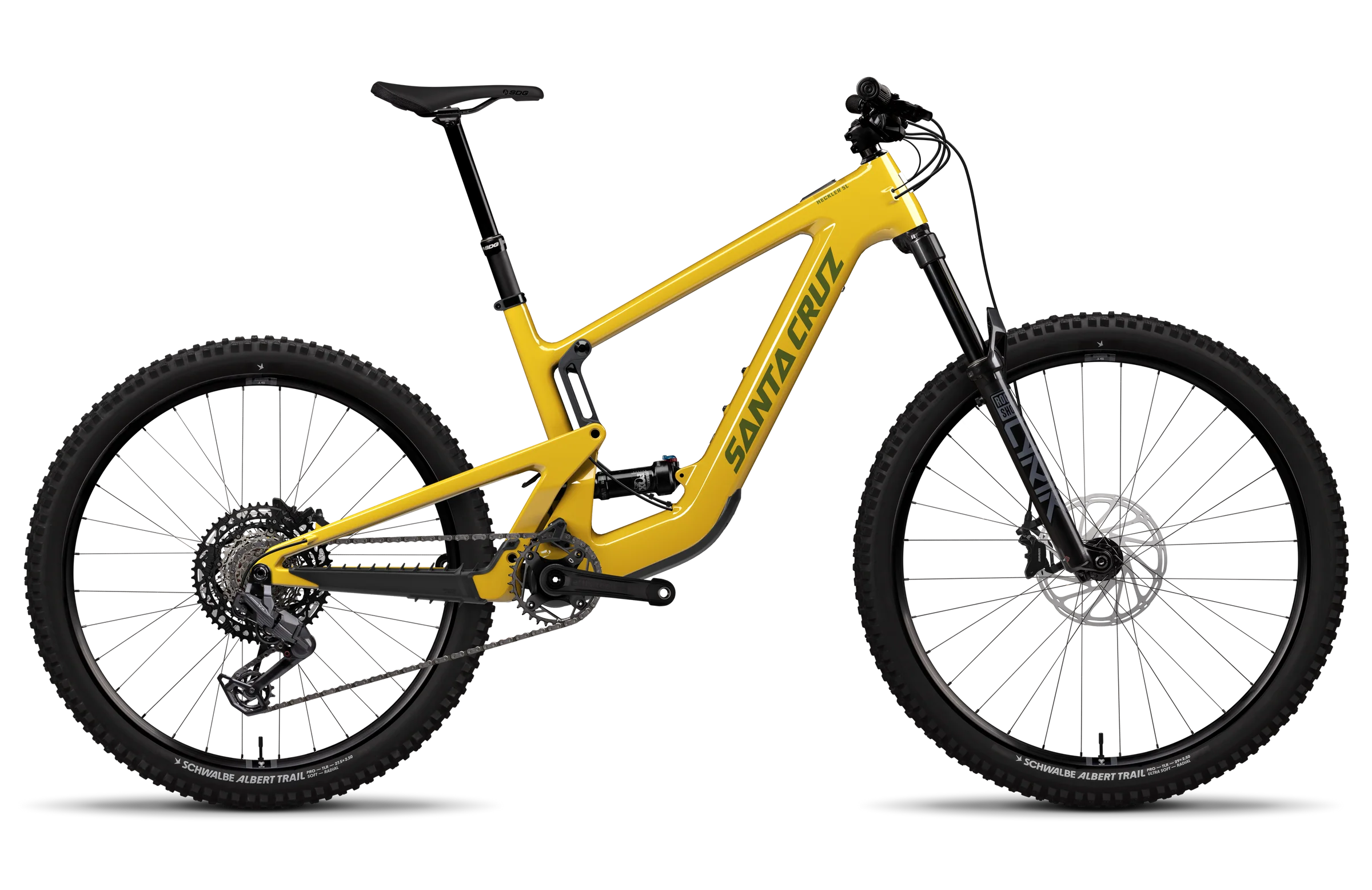

A sneaky ebike that’s lightweight, powerful and has surprising range. All the on-trail traits of a Santa Cruz combined with the FAZUA RIDE 60 drive unit. 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry makes the Heckler SL a natural handling trail bike. Just with the added power of an ebike.

• RockShox Lyrik Base Fork
• FOX Float Performance Shock
• SRAM 70 Eagle T-Type Drivetrain
• Fazua Ride 60 Drive Unit



Specifications

Suspension

• Fork: RockShox Lyrik Base, 160mm Travel

• Rear Shock: FOX Float Performance, 210x55mm

• Shock Stroke: 55mm

• Shock Bushing Size (Front): 30x8

• Shock Bushing Size (Rear): 30x8

• Fork Offset: 44mm

Drivetrain

• Rear Derailleur: SRAM 70 Eagle T-Type, 12-speed

• Shifter: SRAM 90 Eagle T-Type, Single Click, 12-speed

• Crankset: e*thirteen Helix eSpec, 165mm

• Cassette: SRAM XS 1270 Eagle T-Type, 10-52T

• Chain: SRAM 70 Eagle T-Type, Flattop, 12-speed

• Bottom Bracket: Fazua DU with E-TOR spindle

Brakes

• Front Brake: SRAM DB8

• Front Rotor: SRAM Centerline, 200mm

• Rear Rotor: SRAM Centerline, 200mm

• Rear Brake Mount: PM 200mm

• Max Rotor Size: 220mm

Cockpit

• Handlebar: Burgtec Alloy Bar or e13 TRS Base Bar

• Stem: OneUp Enduro Stem, 42mm or e13 TRS Base Stem, 40mm

• Grips: Santa Cruz Bicycles House Grips

• Headset: Cane Creek 10 IS Integrated (IS41/52)

Seat & Post

• Seatpost: SDG Tellis Dropper, 31.6mm

• Saddle: SDG Bel-Air V3 Max

Wheels

• Front Rim: WTB ST Tough 30

• Front Hub: SRAM MTH 716, 15x110mm, 6-Bolt, 32H

• Front Tire: Schwalbe Albert 29" x 2.5", Trail Radial Ultra Soft

• Rear Rim: WTB ST Tough 30

• Rear Hub: SRAM MTH 746, 12x148mm, HG, 6-Bolt, 32H

• Rear Tire: Schwalbe Albert 27.5" x 2.5", Trail Radial Soft

E-Bike System

• Drive Unit: Fazua Ride 60

• Battery: Fazua Energy 430Wh Integrated

Specs & Clearances

• Headset: Integrated (IS41/52)

• Max Tire Clearance: 2.6"

• Max Chainring Size: 36T

• UDH Compatible: Yes

• Shock Length: 210mm
