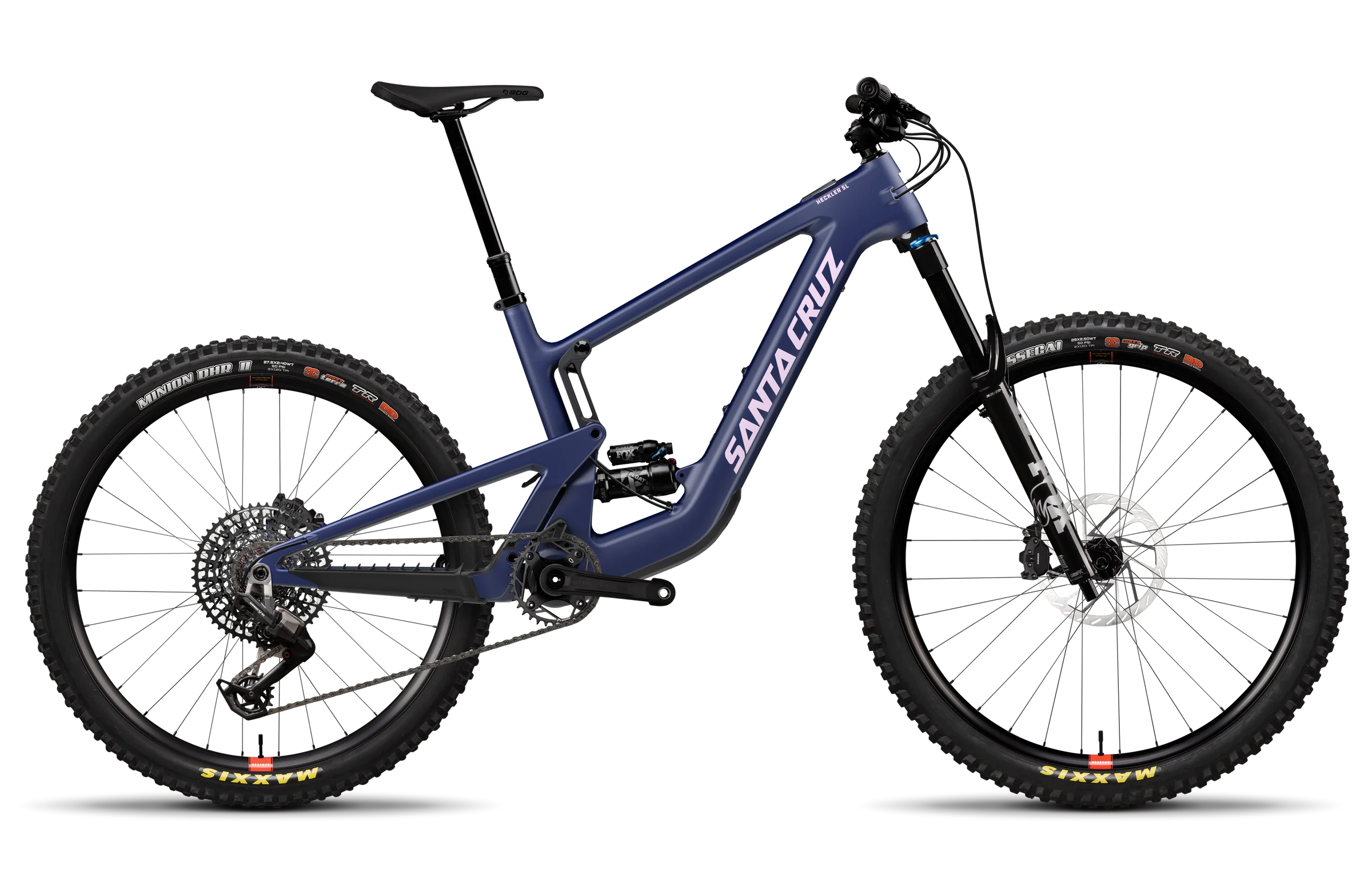

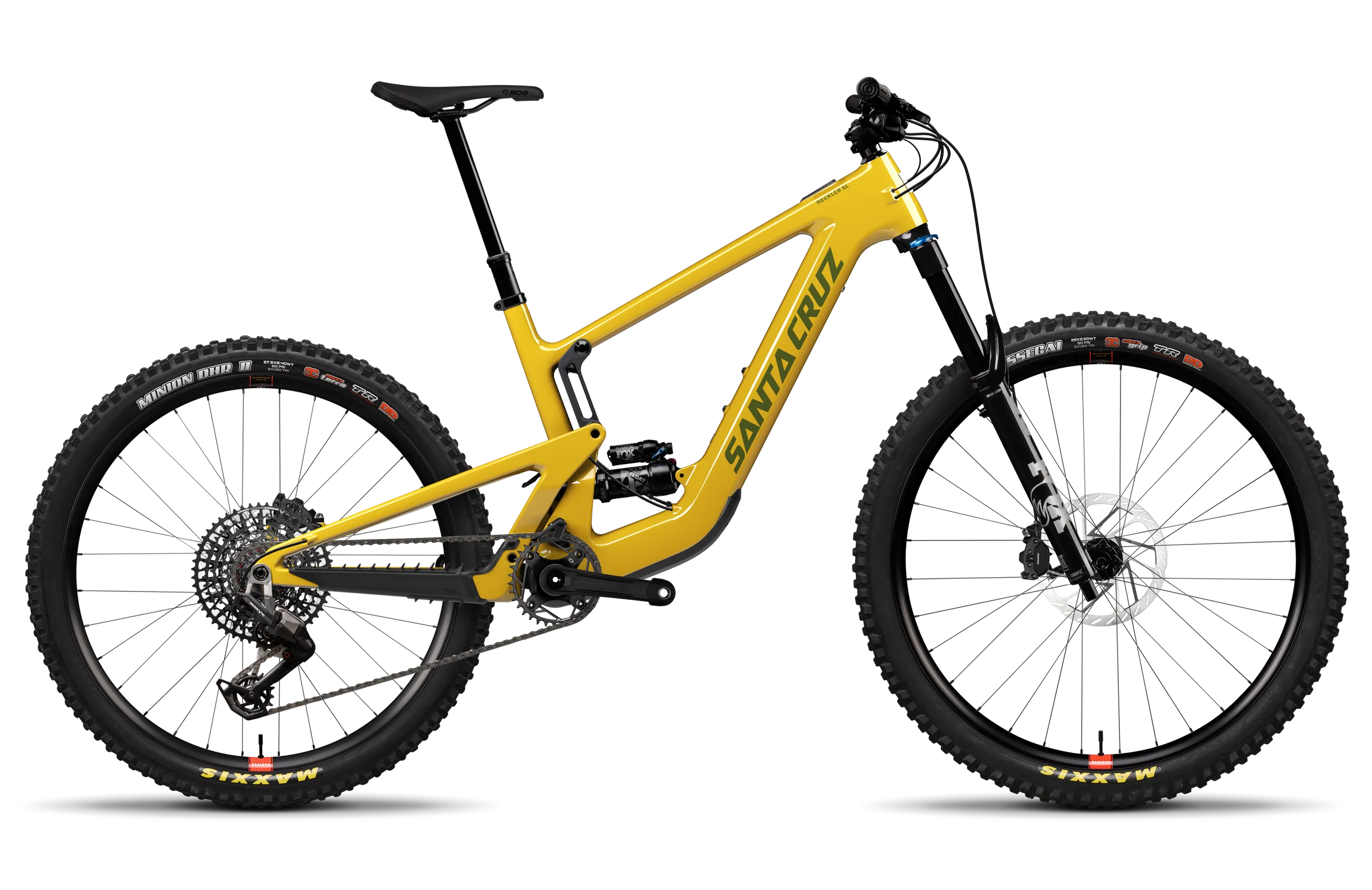

A sneaky ebike that’s lightweight, powerful, and has surprising range. It combines all the on-trail traits of Santa Cruz with the FAZUA RIDE 60 drive unit. With 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry, the Heckler SL is a trail bike—but with hidden superpowers.

Specs

Frame
Frame: Carbon C MX 150mm Travel VPP™
Weight: 44.35lbs / 20.12 kg
Wheel Size: MX

Suspension
Fork: FOX 36 Float Performance, Grip, 160mm
Shock: FOX Float X Performance, 210x55

Drivetrain
Bottom Bracket: N/A
Cassette: SRAM XS 1275 Eagle T-Type, 10-52t
Chain: SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide: OneUp Chainguide
Crankset: E13 Helix eSpec, 165mm
Rear Derailleur: SRAM 90 Eagle T-Type, 12spd
Right Shifter: SRAM 90 Eagle T-Type, Single Click, 12spd

Brakes
Front Brakes: SRAM Maven Base
Front Rotor: SRAM HS2 200mm
Rear Rotor: SRAM HS2 200mm

Cockpit
Grips / Bar Tape: Santa Cruz Bicycles House Grips
Handlebars: OneUp Aluminum Bar
Headset: Cane Creek 10 IS Integrated Headset
Saddle: SDG Bel-Air V3, Max Lux-Alloy
Seatpost: OneUp Dropper Post, 31.6
Stem: OneUp Enduro Stem, 42mm

Wheels
Front Rim: Reserve 30|HD AL
Front Hub: E13 SL, 15x110, 6-Bolt, 32h
Front Tire: Schwalbe Albert, 29x2.5, Trail Radial Ultra Soft
Rear Rim: Reserve 30|HD AL
Rear Hub: E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Rear Tire: Schwalbe Albert, 27.5x2.5, Trail Radial Soft

Ebike
Battery: Fazua 480Wh Integrated Battery
Drive Unit: Fazua Ride 60

Specs
Bottom Bracket Shell: Fazua DU w/ E-TOR spindle
Rear Brake Mount: PM 200mm
Shock Length: 210mm
Fork Axle to Crown: 571mm
Fork Offset: 44mm
Front Derailleur Mount: No
Headset: IS 41 / IS52
Max Chainring Size: 36t
Max Rotor Size: 220mm
Max Tire Clearance: 2.6"
Rear Spacing: 148mm
Shock Bushing Size Front: 30x8
Shock Bushing Size Rear: 30x8
Shock Stroke: 55mm
UDH Compatible: Yes



Size Guide

Size	Rider Height	Reach
Small	5'1" – 5'5"	435mm
Medium	5'5" – 5'9"	460mm
Large	5'8" – 6'1"	480mm
X-Large	6'0" – 6'4"	500mm
XX-Large	6'3" – 6'7"	525mm



Geometry
