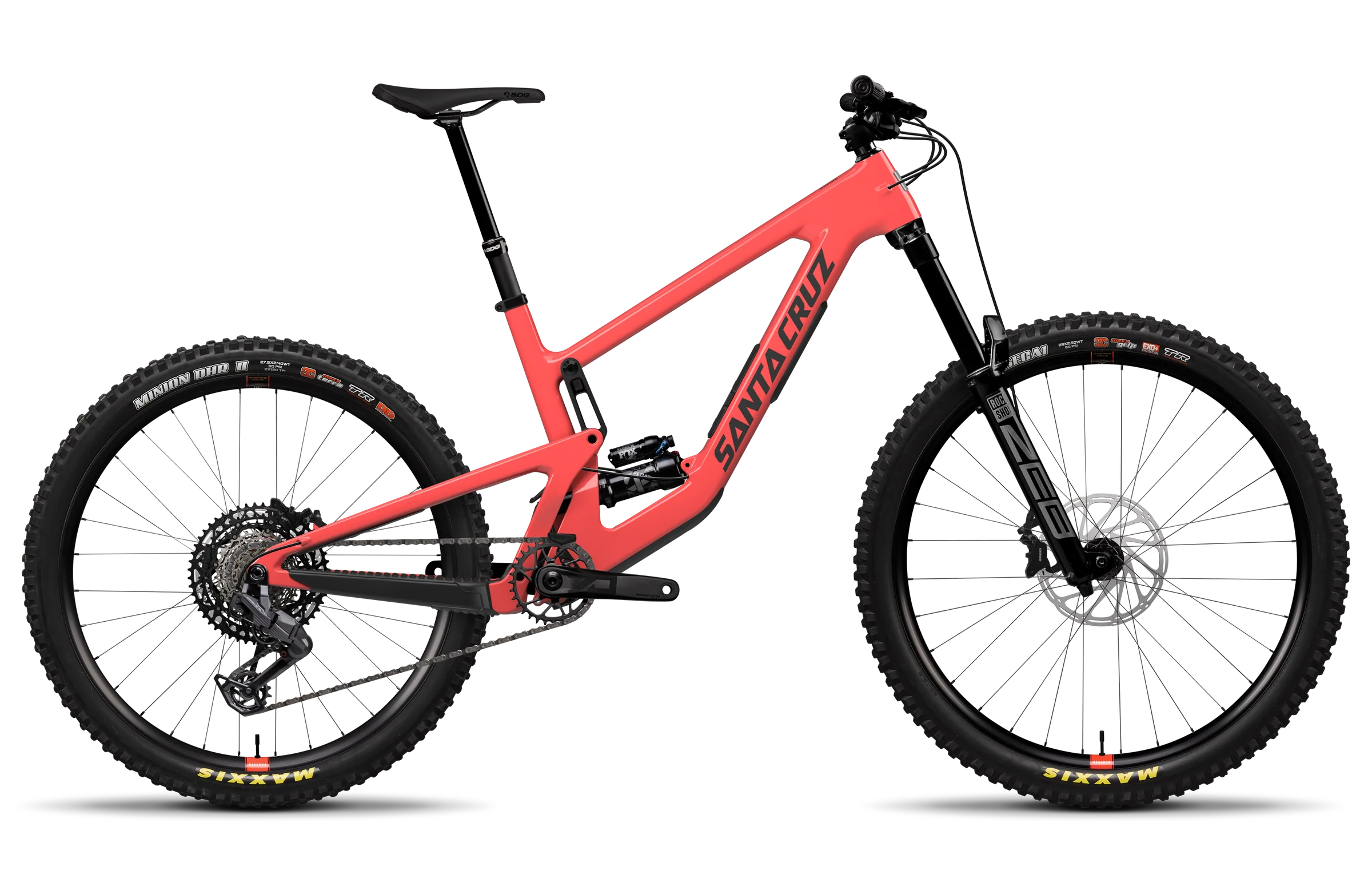

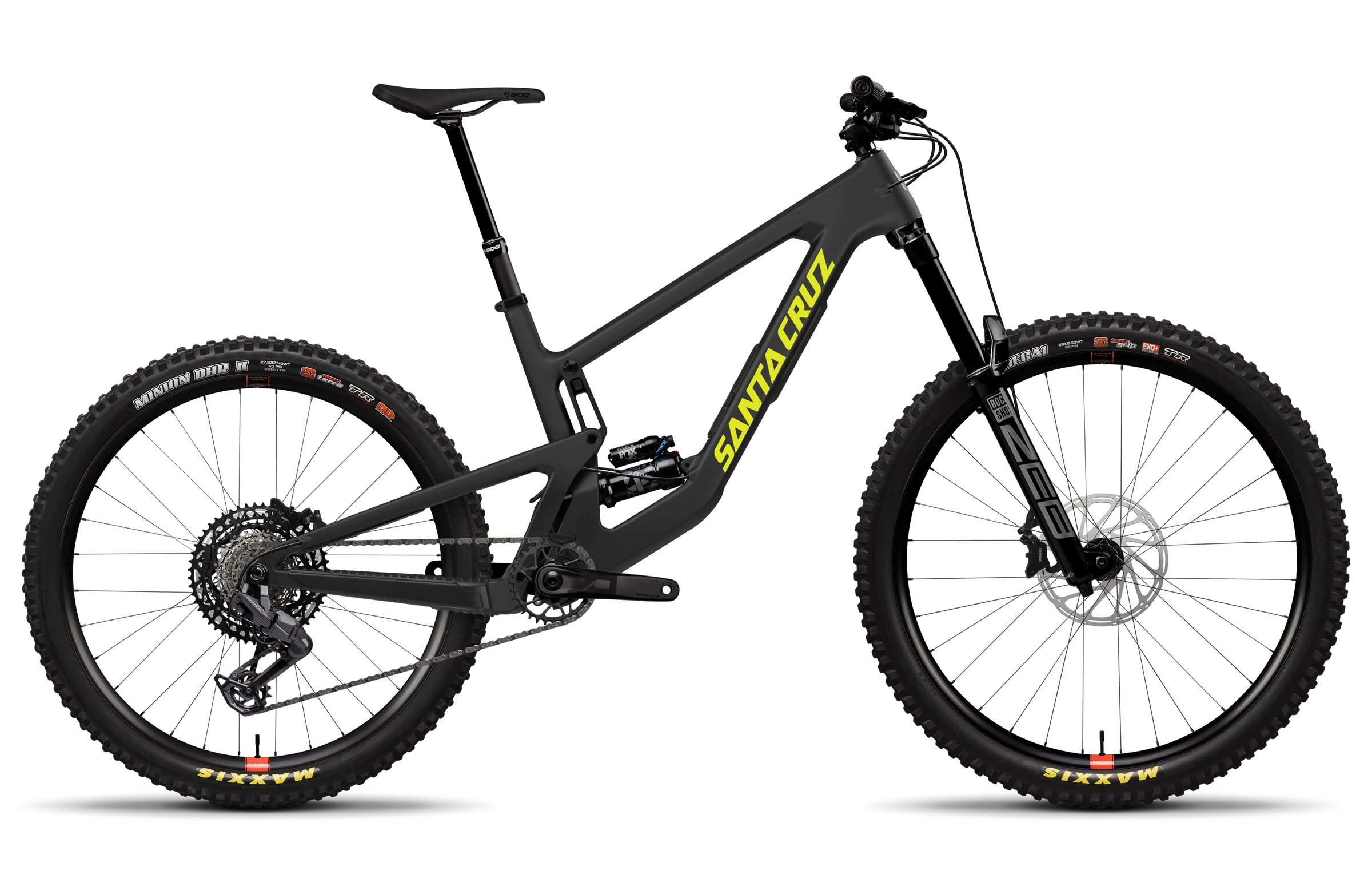

Load up the van, hit the road, climb a mountain, hammer it back down, huck the gap, throw the bike back in the van, drive to the bike park and do laps on laps. Hell, you could even rock up to the startline of the world's wildest races. The Nomad’s forte is being ready and willing to go wherever, whenever. The only thing it needs is a rider willing to press send.

• FOX 38 Float Performance Fork
• FOX Float X Performance Shock
• SRAM 90 Eagle T-Type Drivetrain

Specifications

Frame & Suspension

• Fork: RockShox Zeb Base, 170mm

• Shock: FOX Float X Performance, 230x65

Drivetrain

• Rear Derailleur: SRAM 70 Eagle T-Type, 12-speed

• Shifter: SRAM 90 Eagle T-Type, 12-speed

• Crankset: SRAM 70 Eagle DUB T-Type, 32t

• Cassette: SRAM XS 1270 Eagle T-Type, 10-52t

• Chain: SRAM 70 Eagle T-Type, Flattop, 12-speed

• Bottom Bracket: SRAM DUB 73mm MTB Wide BB

Brakes

• Front Brake: SRAM DB8

• Front Rotor: SRAM Centerline, 200mm

• Rear Rotor: SRAM Centerline, 200mm

Cockpit

• Handlebars: Burgtec Alloy Bar

• Stem: OneUp Enduro Stem, 42mm

• Grips: Santa Cruz Bicycles House Grips

• Headset: Cane Creek 10 IS Integrated Headset

• Seatpost: SDG Tellis Dropper, 31.6mm

• Saddle: SDG Bel-Air V3, Steel Rails

Wheels & Tires

• Front Rim: Reserve 30|TR AL

• Front Hub: SRAM MTH 716, 15x110, 6-Bolt, 32h

• Front Tire: Maxxis Assegai 29" x 2.5", 3C MaxxGrip, EXO+

• Rear Rim: Reserve 30|HD AL

• Rear Hub: SRAM MTH 746, 12x148, HG, 6-Bolt, 32h

• Rear Tire: Maxxis Minion DHR II 27.5" x 2.4", 3C MaxxTerra, Double Down

Tech Specs

• Headset Type: Integrated (IS41/52)

• Seat Post Diameter: 31.6mm

• Seat Clamp Diameter: 36.4mm

• Rear Brake Mount: 200 PM

• Bottom Bracket Shell: 73mm Threaded

• Max Tire Clearance: 2.5"

• Water Bottle Mounts: 1

• Shock Size: 230mm x 65mm

• Shock Bushing Size (Front/Rear): 30x8mm

• Fork Offset: 44mm

Geometry
