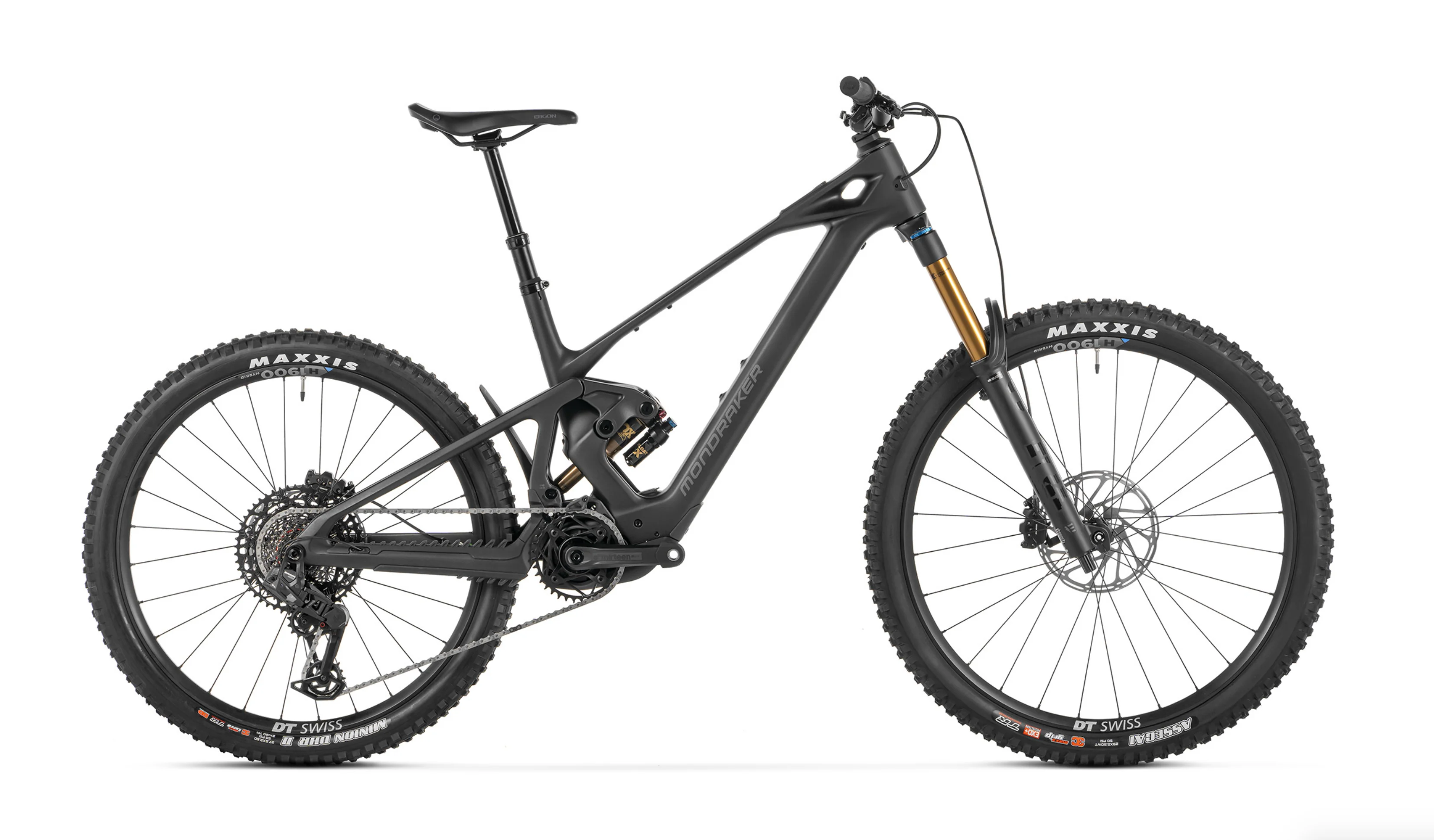

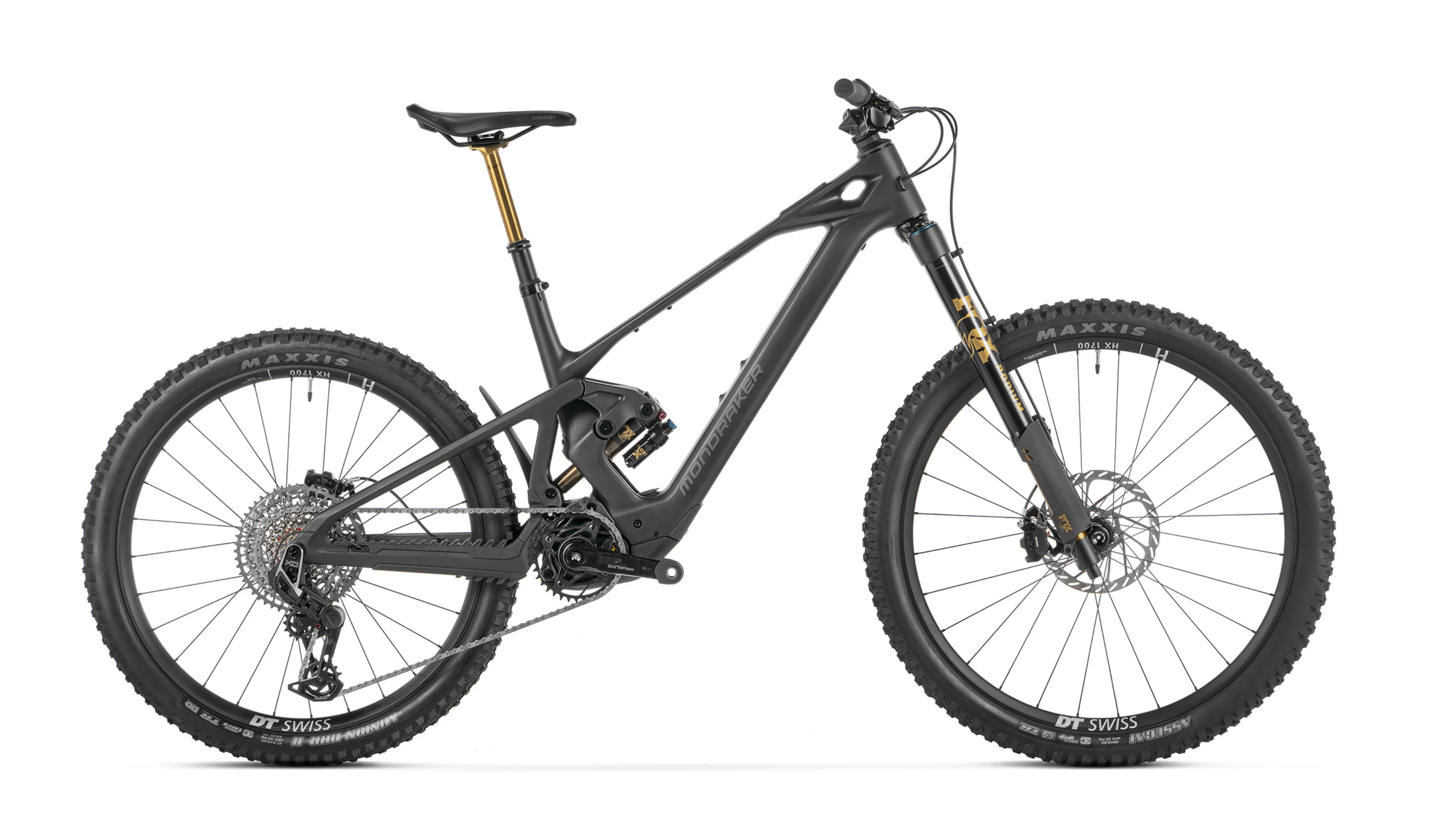

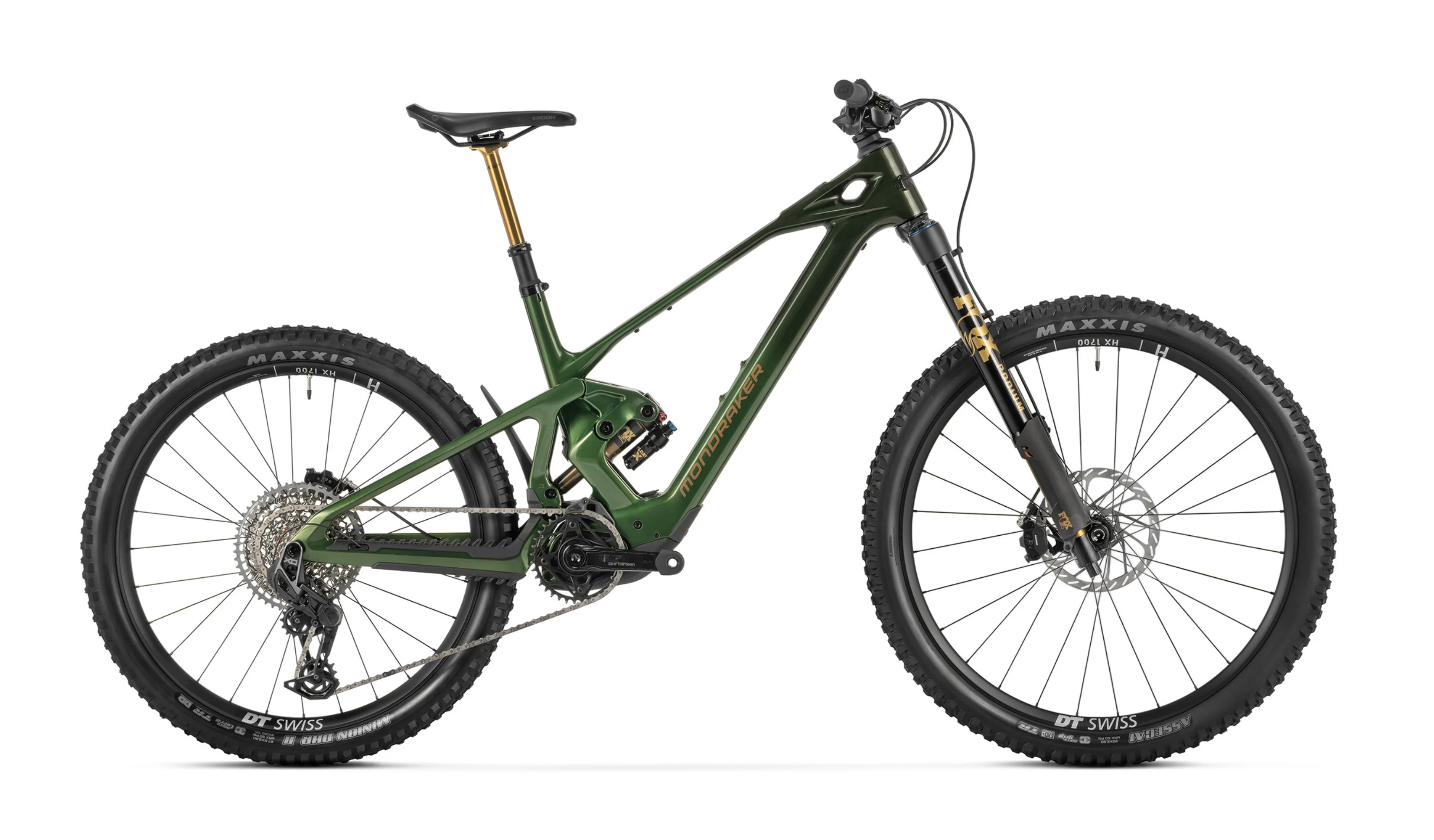

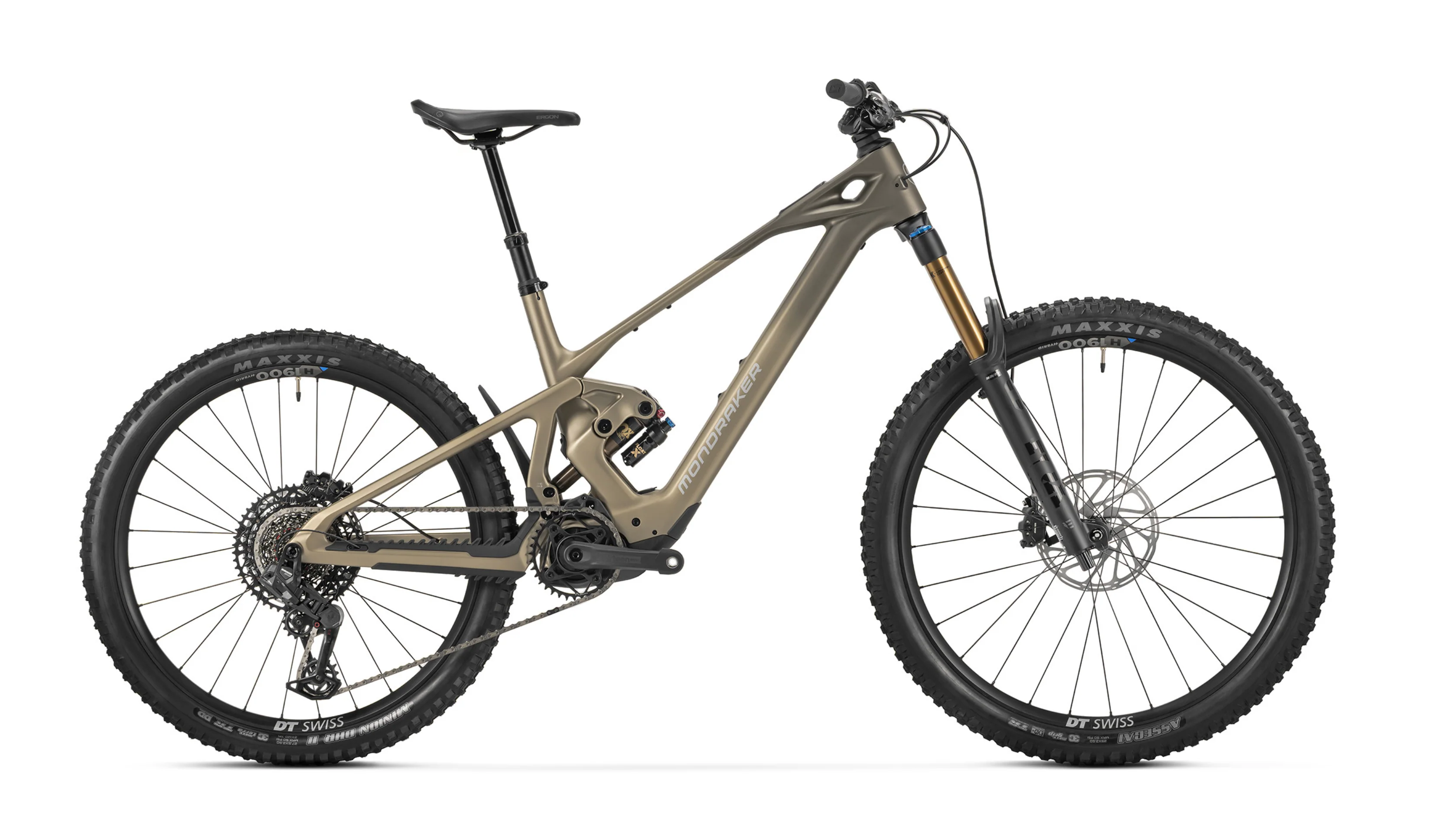

The flagship Mondraker e-MTB that boasts a new level of performance, achieved from the latest frame design and ZERO suspension kinematics, with seamless integration of the powerful new Avinox M2S drive system.
Frame
Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
Shock settings
CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
Fork
Fox 38 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle
Ergon SM10 E-Mountain Black.
Front brake
Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
Rear brake
Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
Brake lever
Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust
Rims
DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes.
Spokes
DT Swiss Straightpull spokes, DT Hybrid I, black
Front hub
DT Swiss 370, Boost 15x110mm, IS 6 bolts
Rear hub
DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire
Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Crankset
e*thirteen Helix Race e*spec alloy. All sizes: 155mm
Rings
Sram Eagle 36T T-Type, 104BCD, steel, CL55
Chain
Sram GX Eagle T-Type, 12s Flattop, w/Powerlock
Rear derrailleur
Sram S1000 Eagle AXS, T-Type, 12s
Shift levers
Sram Eagle AXS Pod Controller w/discrete clamp, 12s
Casette
Sram XS 1270, 10-52T, T-Type, 12s
Others
Sram AXS Extension Cord / Avinox 4A Charger
Weight
22.8 Kg
Display
Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)
Motor
Avinox M2S
Battery
Avinox 800Wh Battery
|
Frame size
|
S | M | M/L | L | XL | |
|---|---|---|---|---|---|---|
| A | Seattube length | 380mm | 410mm | 435mm | 460mm | 490mm |
| B | Toptube length | 586mm | 606mm | 628mm | 650mm | 672mm |
| C | Bottom bracket drop | 6mm | 6mm | 6mm | 6mm | 6mm |
| D | Bottom bracket height | 345mm | 345mm | 345mm | 345mm | 345mm |
| E | Chainstay length | 450mm | 450mm | 450mm | 455mm | 455mm |
| F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| G | Effective seattube angle | 77° | 77° | 77° | 77° | 77° |
| H | Headtube angle | 63.5° | 63.5° | 63.5° | 63.5° | 63.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1241mm | 1261mm | 1286mm | 1315mm | 1339mm |
| K | Headtube length | 110mm | 110mm | 120mm | 130mm | 140mm |
| L | Reach | 440mm | 460mm | 480mm | 500mm | 520mm |
| M | Stack | 631mm | 631mm | 640mm | 649mm | 658mm |
| N | Stem Length | null | null | null | null | null |
| O | Fork Height | null | null | null | null | null |
Original: $9,487.46
-65%$9,487.46
$3,320.61Product Information
