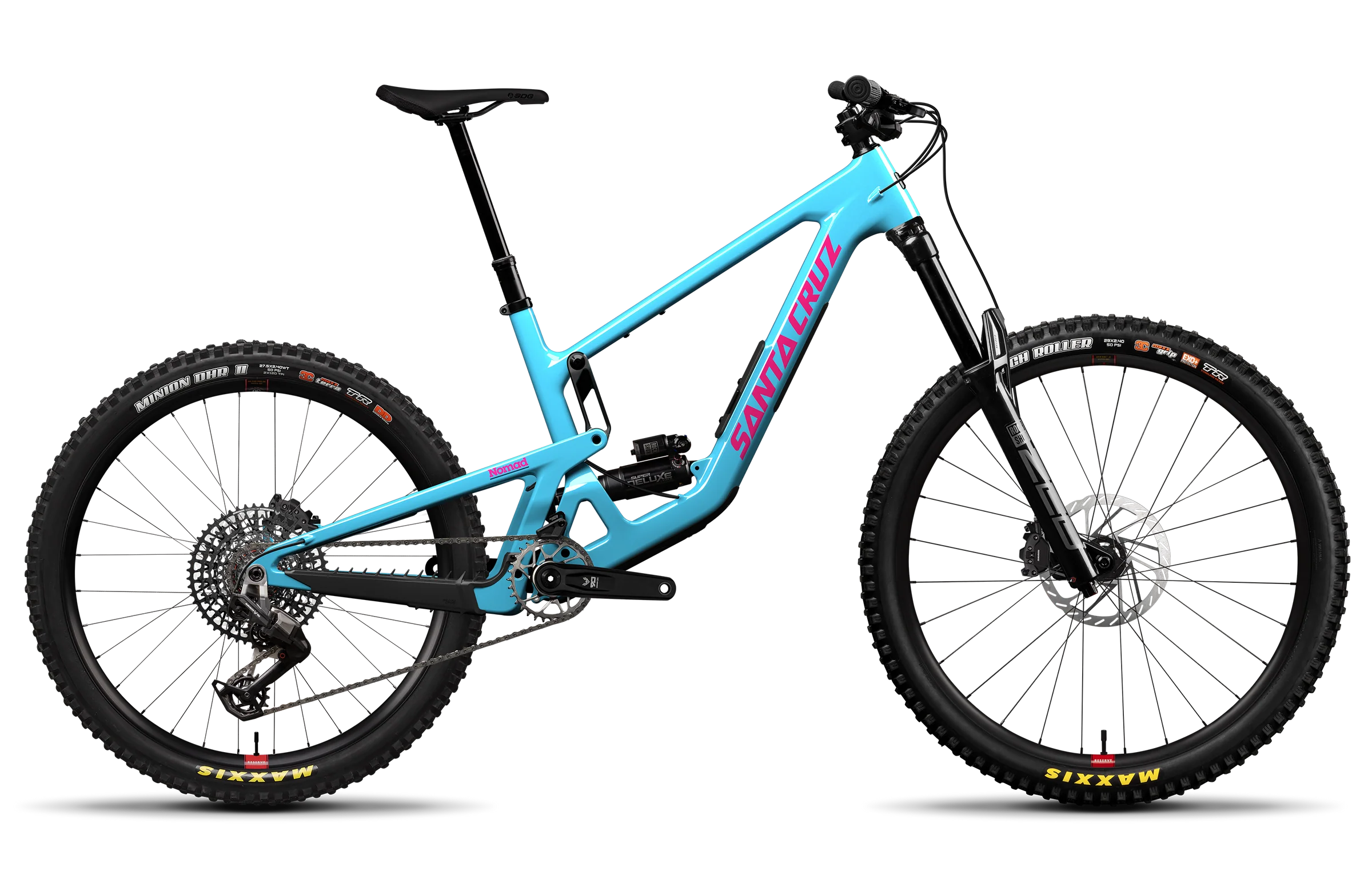

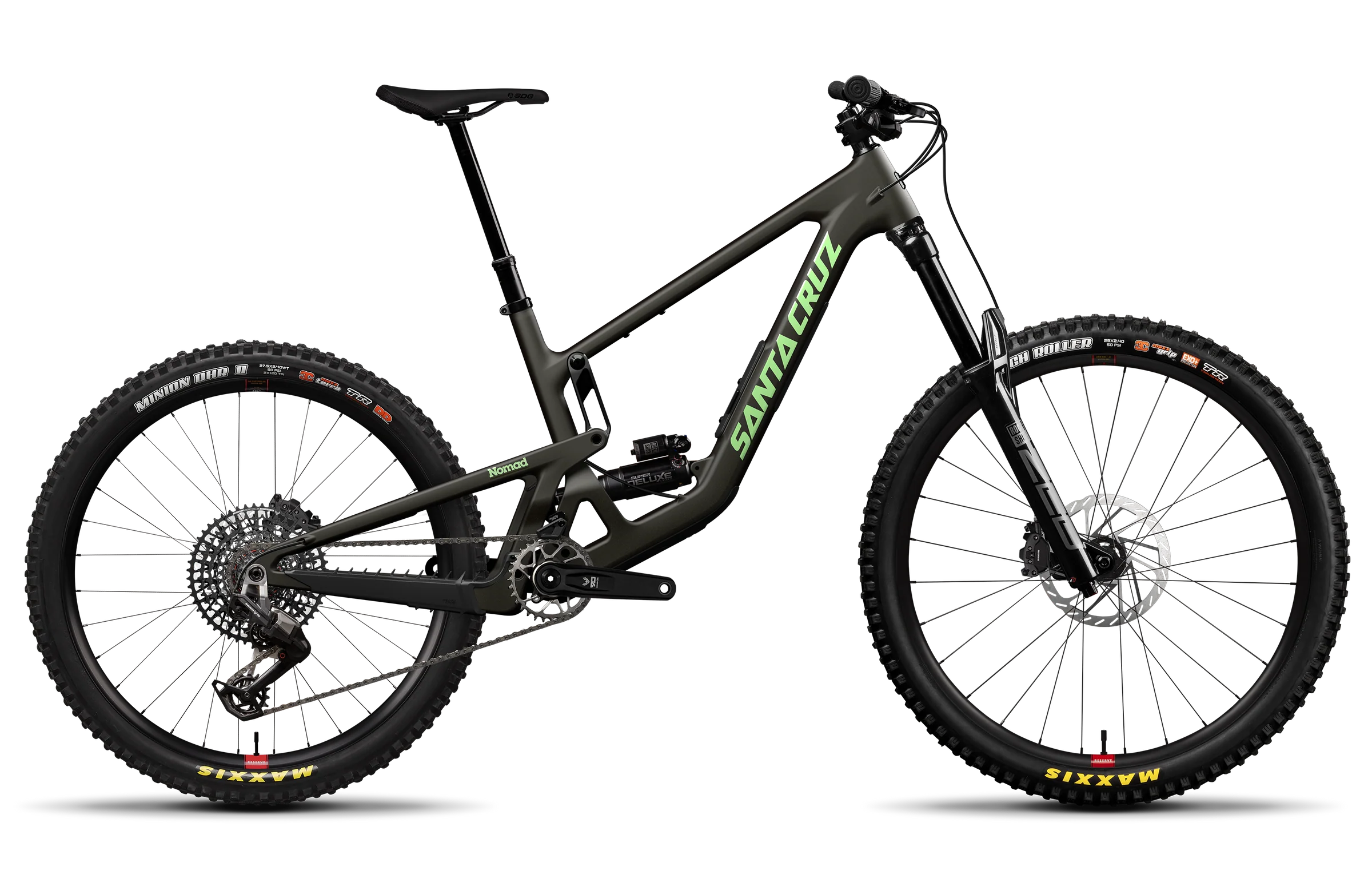

2027 Santa Cruz Nomad 7 90-Kit
Zip it into the bag, chuck it in the van, or toss it over the tailgate—when you get to the trails, you’ll be happy you’re on a Nomad. The refined suspension offers efficient climbing, less reactivity under braking, and improves traction everywhere in between. In short, you’ll be more comfortable, more composed, and more confident no matter what the trail throws your way.
- Carbon CC Frame
- RockShox Zeb Select Fork
- RockShox Super Deluxe Select Shock
- SRAM 90 Eagle T-Type Drivetrain
LIGHTER IS BETTER
The new Nomad’s a bit lighter than before—86 grams, to be precise. A lot of that savings comes from the slimmed-down downtube, but we redesigned the layup throughout the frame. It’s not just weight savings for weight savings sake, though: reducing the amount of material in the downtube makes it more compliant, and leaves you feeling fresher at the end of a long descent. You’ll feel it in your hands and feet at the bottom, and feel it even more (less?) the next day.
Specs
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
| Frame | |
|---|---|
|
Material |
Carbon CC |
|
Frame |
Carbon CC MX 170mm Travel VPP™ |
|
Travel |
170mm |
|
Weight |
35.15 lbs / 15.94 kg |
|
Wheel Size |
MX |
| Suspension | |
|
Fork |
RockShox Zeb Select, 170mm |
|
Shock |
RockShox Super Deluxe Select, 230x65 |
| Drivetrain | |
|
Bottom Bracket |
SRAM DUB 73mm MTB Wide BB |
|
Cassette |
SRAM XS 1275 Eagle T-Type, 10-52t |
|
Chain |
SRAM GX Eagle T-Type, Flattop, 12spd |
|
Chainguide |
OneUp Chainguide |
|
Crankset |
SRAM 90 Eagle DUB T-Type, 32t S: 165mm, M-XXL: 170mm |
|
Rear Derailleur |
SRAM 90 Eagle T-Type, 12spd |
|
Right Shifter |
SRAM 90 Eagle T-Type, 12spd |
| Brakes | |
|
Brakes |
SRAM Maven Base |
|
Front Rotor |
SRAM HS2 200mm |
|
Rear Rotor |
SRAM HS2 200mm |
| Cockpit | |
|
Grips / Bar Tape |
Santa Cruz Bicycles House Grips |
|
Handlebars |
OneUp Aluminum Bar, 35mm S: 800mm, 20mm Rise, M-XXL: 800mm, 35mm Rise |
|
Headset |
Cane Creek 50 IS Integrated Headset |
|
Saddle |
SDG Bel-Air V3 Lux-Alloy |
|
Seatpost |
OneUp Dropper Post, 31.6 S: 150mm, M: 180mm, L-XL: 210mm, XXL: 240mm |
|
Stem |
OneUp Enduro Stem All Sizes: 42mm |
| Wheels | |
|
Front Rim |
Reserve 30|TR AL |
|
Front Hub |
DT Swiss 370, 15x110, 6-Bolt, 28h |
|
Front Tire |
Maxxis High Roller, 29"x2.4", 3C MaxxGrip, EXO+ |
|
Rear Rim |
Reserve 30|HD AL |
|
Rear Hub |
DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 32h |
|
Rear Tire |
Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down |
|
Valves |
Reserve Fillmore Valves |
| Specs | |
|
Bottom Bracket Shell |
73mm Threaded |
|
Rear Brake Mount |
Postmount 200mm |
|
Chainguide Standard |
Integrated upper guide+2-bolt ISCG 05 bash mount |
|
Chainline |
55mm |
|
Downtube Storage |
Glovebox |
|
Shock Length |
230mm |
|
Fork Axle to Crown |
588mm |
|
Fork Compatibility |
170-180mm |
|
Fork Offset |
44 |
|
Headset |
Integrated (IS41/52) |
|
Max Chainring Size |
36t |
|
Max Rotor Size |
223mm |
|
Rear Spacing |
148mm |
|
Rear Travel |
170mm |
|
Recommended Sag |
30% |
|
Seat Clamp Diameter |
36.4 |
|
Seat Post Diameter |
31.6 |
|
Shock Bushing Size Front |
30x8 |
|
Shock Bushing Size Rear |
30x8 |
|
Shock Stroke |
65mm |
|
Suspension System |
VPP™ |
|
UDH Compatible |
Yes |
|
Water Bottle Mounts |
1 |
Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach (Hi/Lo) | 435/433 | 455/453 | 475/473 | 495/493 | 520/518 |
| Stack (Hi/Lo) | 624/626 | 633/635 | 643/645 | 660/662 | 669/671 |
| Head Tube Angle (Hi/Lo) | 63.6°/63.3° | 63.6°/63.3° | 63.6°/63.3° | 63.6°/63.3° | 63.6°/63.3° |
| Head Tube Length | 100 | 110 | 120 | 140 | 150 |
| Rear Center (Hi/Lo) | 438/439 | 441/442 | 444/445 | 447/448 | 451/452 |
| Front Center (Hi/Lo) | 781/780 | 805/805 | 830/830 | 858/858 | 888/888 |
| BB Height (Hi/Lo) | 346/342.5 | 346/342.5 | 346/342.5 | 346/342.5 | 346/342.5 |
| BB Drop Front (Hi/Lo) | 26.5/30 | 26.5/30 | 26.5/30 | 26.5/30 | 26.5/30 |
| BB Drop Rear (Hi/Lo) | 8/11.5 | 8/11.5 | 8/11.5 | 8/11.5 | 8/11.5 |
| Wheelbase (Hi/Lo) | 1219/1219 | 1246/1247 | 1276/1274 | 1305/1306 | 1339/1339 |
| Top Tube Length (Hi/Lo) | 569/569 | 587/586 | 604/605 | 627/628 | 651/652 |
| Seat Tube Length | 380 | 400 | 420 | 450 | 500 |
| Seat Tube Angle (Hi/Lo) | 78°/77.7° | 78.2°/78.1° | 78.6°/78.4° | 78.7°/78.5° | 78.9°/78.7° |
| Seat Tube Angle at Saddle Height (Hi/Lo) | 77.4/77.1 at 680 | 77.4/77.1 at 730 | 77.4/77.1 at 780 | 77.4/77.1 at 830 | 77.4/77.1 at 870 |
| Standover Height (Hi/Lo) | 711/707 | 719/715 | 722/718 | 726/722 | 732/728 |
Original: $6,057.12
-65%$6,057.12
$2,119.99Product Information
