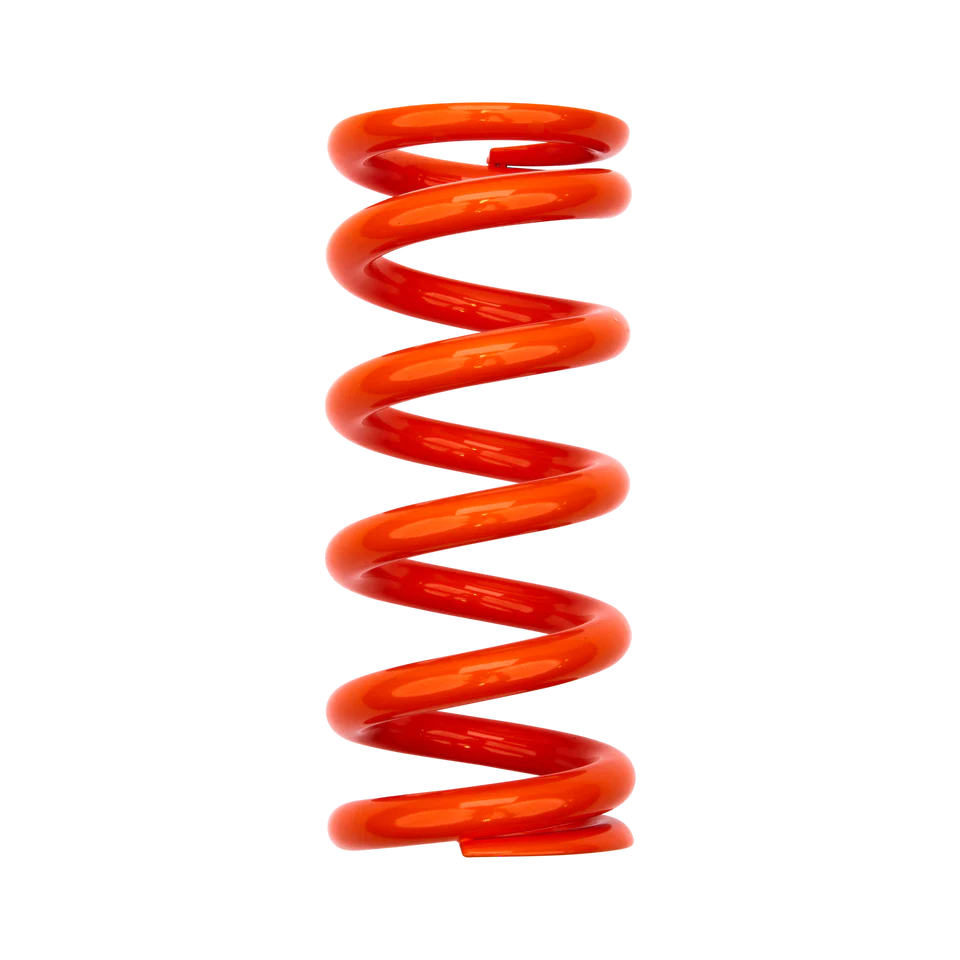

SLS (Super Light Steel) springs are now available from FOX for DHX and DHX2 rear shocks. These SLS springs are a lighter weight steel spring option offered in addition to our standard steel springs. The new SLS springs from FOX are lighter than titanium springs at more affordable prices. A proprietary surface treatment and stress relief process removes residual stresses from the spring, allowing them to withstand higher stresses. Each spring is optimized by using a smaller wire diameter and fewer coils, creating a lighter spring.

Some springs may be too long or short to fit on certain model shocks. Please refer to the charts below before purchasing a new spring for your shock. Please contact FOX directly with fit/application inquiries.



2022-2027 DHX/DHX Live Valve Neo and 2027 DHX2 Spring Fitment
Eye-to-Eye	Travel	Shortest TLG Spring that Fits	Longest TLG Spring that Fits
165mm (T)*	40-45mm	3.947in/100.2mm	4.485in/113.9mm
185mm (T)	47.5-55mm	4.341in/110.3mm	5.273in/133.9mm
190mm*	40-45mm	3.947in/100.2mm	4.485in/113.9mm
205mm (T)	57.5-65mm	4.735in/120.3mm	6.061in/153.9mm
210mm	47.5-55mm	4.341in/110.3mm	5.273in/133.9mm
225mm (T)	67.5-75mm	5.128in/130.3mm	6.848in/173.9mm
230mm	57.5-65mm	4.735in/120.3mm	6.061in/153.9mm
250mm	67.5-75mm	5.128in/130.3mm	6.848in/173.9mm

                          *Eye-to-eye not available in MY26 DHX2



2021-2025 DHX2 Spring Fitment
Eye-to-Eye	Travel	Shortest TLG Spring that Fits	Longest TLG Spring that Fits
7.5in	2in	4.32in/109.7mm	4.83in/122.7mm
7.875in	2in	4.32in/109.7mm	5.21in/132.3mm
8.5in	2.5in	4.82in/122.4mm	5.83in/148.1mm
9.5in	3in	5.32in/135.1mm	6.84in/173.7mm
10.5in	3.5in	5.82in/147.8mm	7.83in/198.9mm
185mm (T)	55mm	4.48in/113.8mm	5.30in/134.6mm
210mm	47.5-55mm	4.49in/114.0mm	5.60in/142.2mm
205mm (T)	57.5-65mm	4.88in/123.9mm	6.09in/154.7mm
230mm	57.5-65mm	4.88in/123.9mm	6.39in/162.3mm
225mm (T)	67.5-75mm	5.27in/133.8mm	6.88in/174.7mm
250mm	67.5-75mm	5.28in/134.1mm	7.18in/182.4mm



2016-2020 DHX2 Spring Fitment
Eye-to-Eye	Travel	Shortest TLG Spring that Fits	Longest TLG Spring that Fits
7.875in	2.25in	4.381in/  111.3mm	5.03in/ 127.9mm
8.5in	2.5in	4.633in/  117.7mm	5.65in/ 143.7mm
8.75in	2.75in	4.883in/  124.0mm	5.90in/ 150.0mm
9.5in	3in	5.133in/  130.4mm	6.66in/ 169.1mm
10.5in	3.5in	5.635in/  143.1mm	7.65in/ 194.4mm
185mm (T)	50-55mm	4.305in/  109.3mm	5.02in/ 127.6mm
210mm	50-55mm	4.307in/  109.4mm	5.42in/ 137.6mm
205mm (T)	60-65mm	4.699in/  119.4mm	5.81in/ 147.6mm
230mm	60-65mm	4.699in/  119.4mm	6.20in/ 157.6mm
225mm (T)	70-75mm	5.092in/  129.3mm	6.60in/ 167.6mm
250mm	70-75mm	5.093in/  129.4mm	6.99in/ 177.6mm



All VAN/Bomber CR Spring Fitment
Eye-to-Eye	Travel	Shortest TLG Spring that Fits	Longest TLG Spring that Fits
7.5in	2in	4.05in/102.9mm	5.15in/130.8mm
7.875in	2in	4.05in/102.9mm	5.53in/140.5mm
7.875in	2.25in	4.30in/109.2mm	5.53in/140.5mm
8.5in	2.5in	4.55in/115.6mm	6.15in/156.2mm
8.75in	2.75in	4.80in/121.9mm	6.40in/162.6mm
9.5in	3in	5.05in/128.3mm	7.15in/181.6mm
10.5in	3.5in	5.55in/141.0mm	8.15in/207.0mm
185mm (T)	50-55mm	4.21in/106.9mm	5.19in/131.8mm
210mm	47.5-55mm	4.43in/112.5mm	5.92in/150.4mm
205mm (T)	57.5-65mm	5.00in/127.0mm	5.97in/151.6mm
230mm	57.5-65mm	5.22in/132.6mm	6.71in/170.4mm
225mm (T)	67.5-75mm	5.78in/146.8mm	6.76in/171.7mm
250mm	67.5-75mm	6.00in/152.4mm	7.50in/190.5mm
