OVERVIEW

Atlas is designed to bridge the needs of AM and FR/DH riders: light enough for AM, tough enough for FR and DH, providing the ultimate in versatility.

FEATURES

6061-T6 aluminum. · Four bolt bar clamp holds bar securely in position. · Interlocking U-Shaped Handlebar Clamp Geometry. · Faceplate eliminates stress risers which cause your bar to bend or break. · Opposing bolts on steer tube clamp provides extreme clamping power while reducing stress on the steer tube. · Available in 1 1/8 with a 31.8mm bar clamp only Laser etched logos.

SPECS & COLOURS

BUILT FOR: AM/XC/DH

SIZES: 50mm, 65mm RISE: 0(Deg)

BAR DIAMETER: 31.8mm STACK HEIGHT: 40mm

WEIGHT: 150 grams (50mm), 170 grams (65mm)

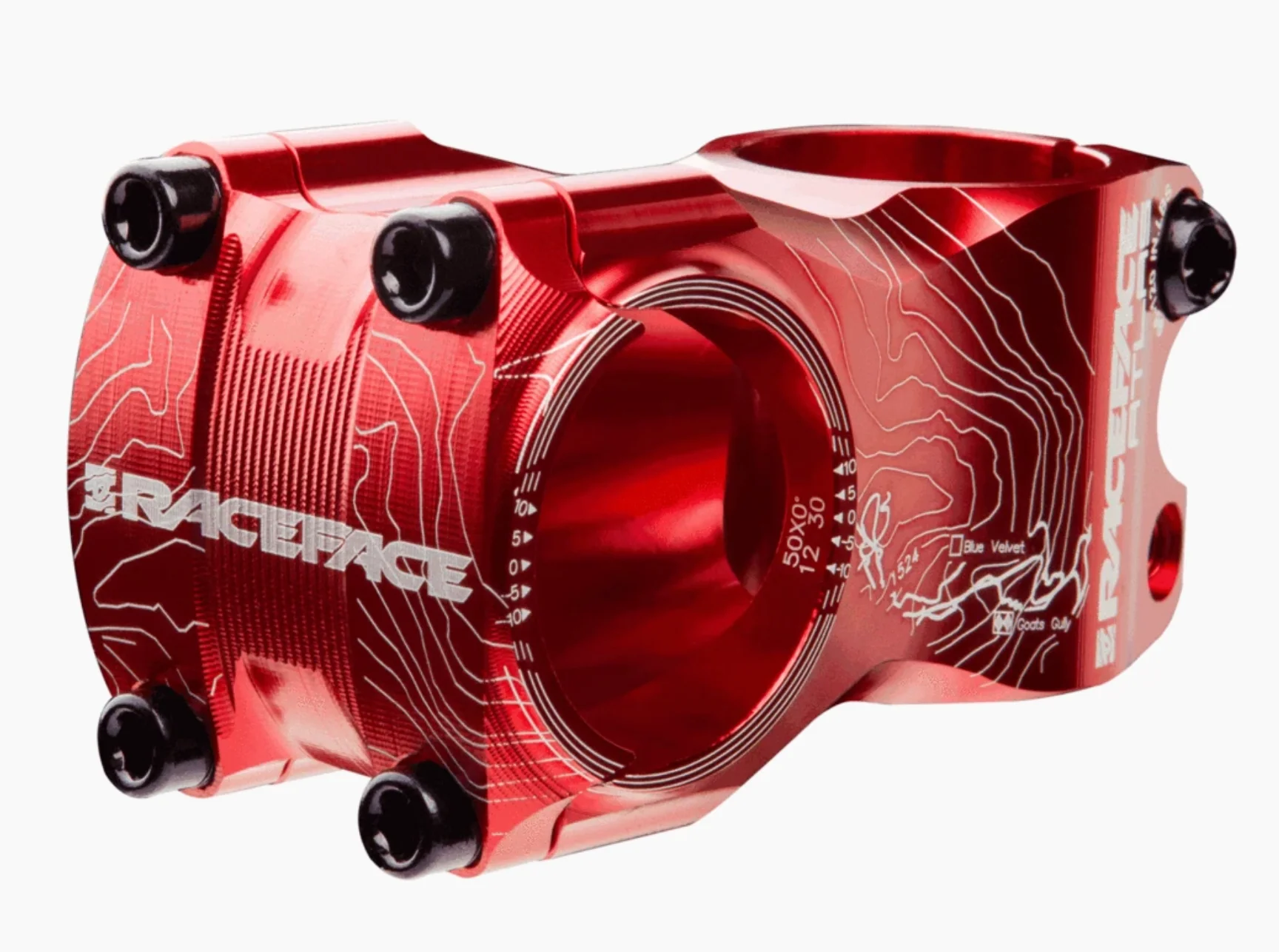

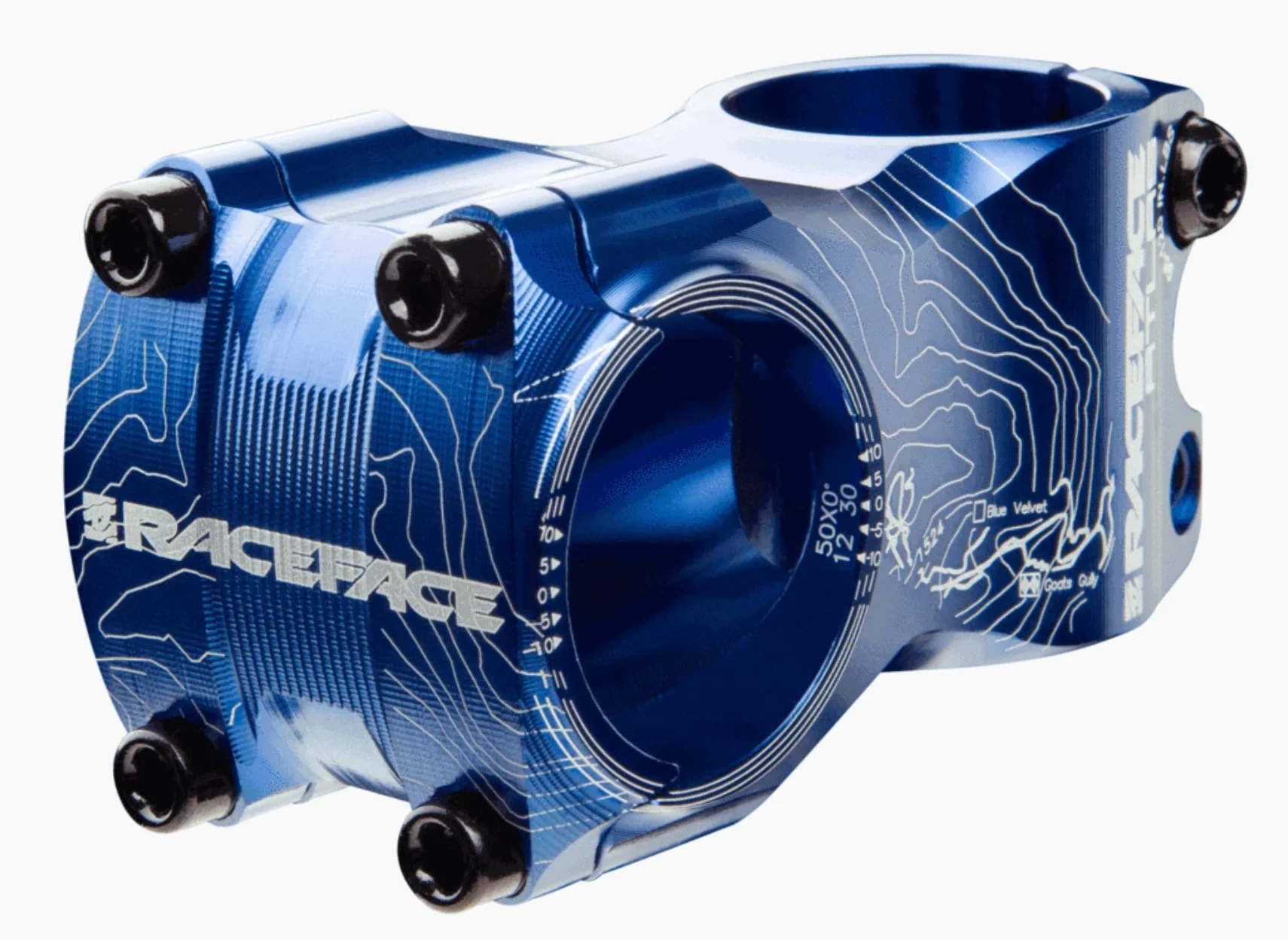

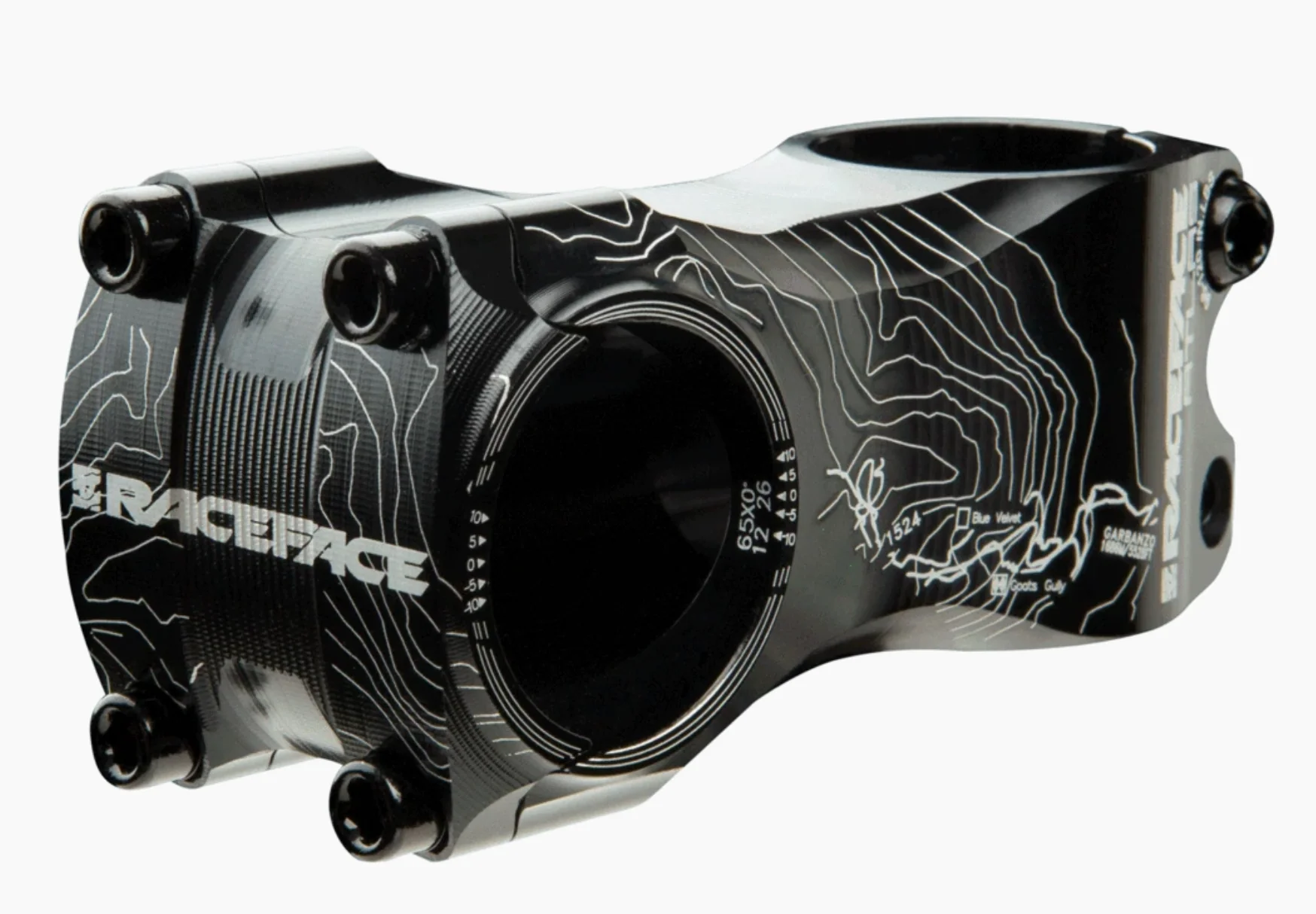

COLOUR: Black, Red, Blue
