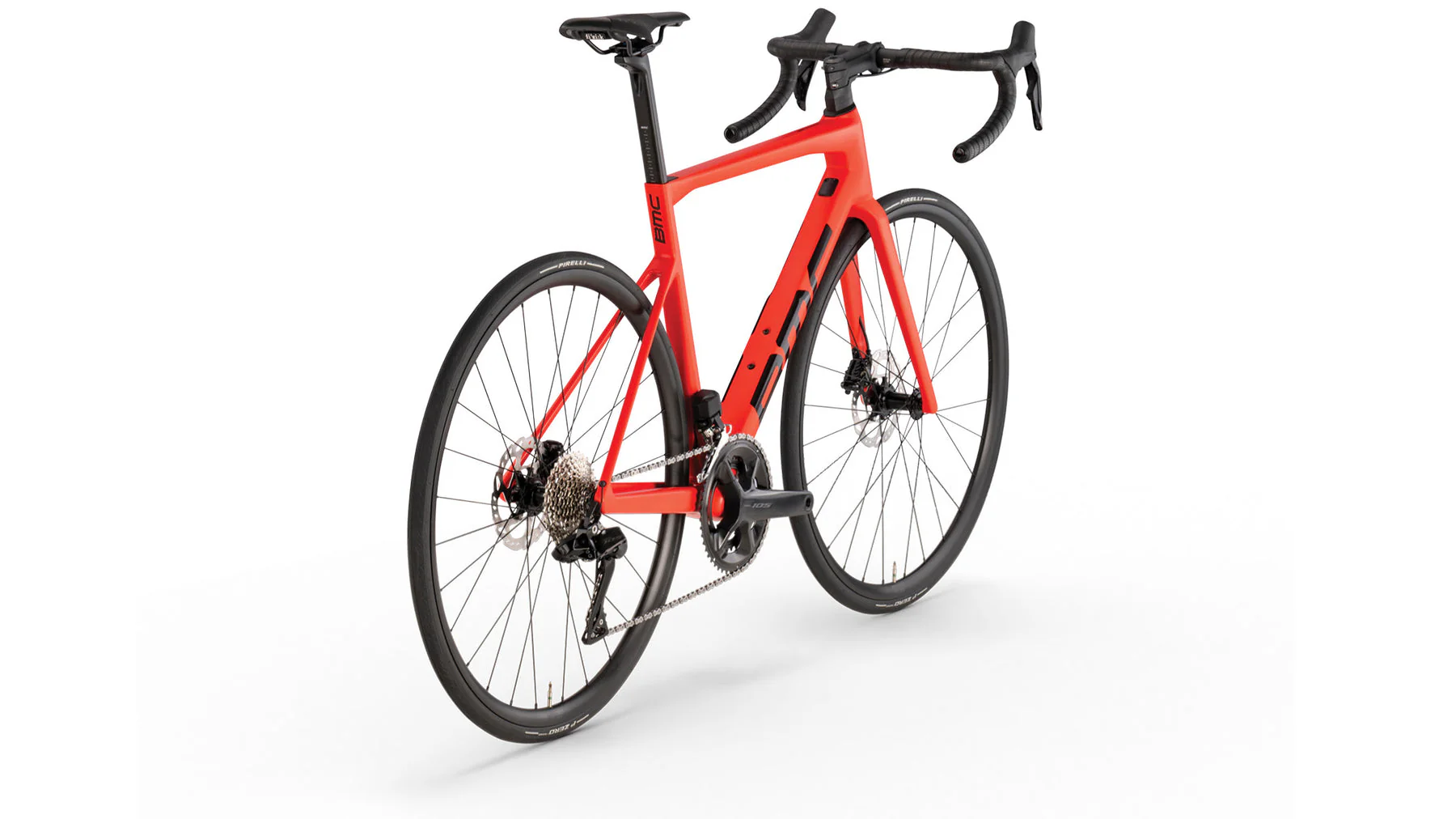

Reimagine road performance with BMC Teammachine SLR's speed, handling, and efficiency. Featuring ICS integrated cable routing and the new Shimano 105 Di2 groupset.

Specs

Frameset

• Frame: Teammachine SLR Carbon

  • Aerocore Design | ICS Technology Stealth Cable Routing

  • Stealth Dropout Design | TCC Race Compliance Level

  • Flat-Mount Disc | 12x142mm Thru-Axle

  • Optimized for Aerocore Bottle Cages

• Fork: Teammachine SLR Carbon

  • ICS Stealth Cable Routing | TCC Race Compliance

  • Flat-Mount Disc | 12x100mm Thru-Axle

  • 48mm Offset (Sizes 47–51) | 43mm Offset (Sizes 54–61)

---

Cockpit

• Stem: BMC RSM 01 | Integrated Cockpit System (ICS)

• Handlebar: BMC HB D4 03 | Alloy 6061

  • 135mm Drop | 70mm Reach | 6° Flare

---

Seat

• Seatpost: Teammachine SLR Carbon | D-Shaped | 15mm Offset

• Saddle (Options):

  • Fizik Antares R7 | S-Alloy Rails | 140mm

  • Selle Italia Model X Superflow | FeC Alloy Rails | 145mm

---

Drivetrain

• Crankset: Shimano 105 FC-R7100

• Chainrings: 50/34T

• Cassette: Shimano 105 CS-R7101 | 11–34T

• Chain: Shimano CN-M6100

• Front Derailleur: Shimano 105 Di2 FD-R7150

• Rear Derailleur: Shimano 105 Di2 RD-R7150

• Shifters: Shimano 105 Di2 ST-R7170

• Gearing: 2 x 12

• Bottom Bracket: Shimano Press Fit BB-RS500

---

Brakes

• Levers/Calipers: Shimano 105 BR-R7170 | Hydraulic Disc

• Rotors: Shimano SM-RT70 | Centerlock

  • Rotor Size (F/R): 160mm / 160mm

---

Wheels & Tires

• Rims: PRD23 | 23mm Width

• Hubs: Shimano HB-TC500-12 (Front) & FH-TC500-HL (Rear) | 28H | Centerlock

• Tires: Pirelli P Zero Road | 26mm

• Tubeless: Non-Tubeless Rims & Tires | Clincher Setup

---

Additional Information

• Tire Clearance: 30mm

• Weight (Without Pedals): 8.3 kg

• ASTM Classification: Level 1

• System Weight Limit: 110 kg

• General Product Safety Regulation (GPSR): Certified

• Color Code: red blk blk

• Marketing Color: Neon Red

• Paint Code: Cromax H0418

• HEX Display: #df2d22

• LAB Color Scan: 50, 67, 52

Geometry

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	367	377	386	392	401	409
Stack	506	530	550	565	584	608
Bar Drop	135	135	135	135	135	135
Bar Reach	70	70	70	70	70	70
Bar Width	390/414	390/414	390/414	410/434	410/434	430/454
BB Drop	69	69	69	69	69	69
Crank Length	170	170	172.5	172.5	175	175
Fork Length	368	368	368	368	368	368
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	110	130	145	165	184	210
Head Tube Angle	71.5	71.5	72.3	72.3	72.3	72.3
Rear Center	410	410	410	410	410	410
Seat Angle	73.5	73.5	73.5	73.5	73.5	73.5
Seat Tube	423	468	504	524	545	574
Seatpost Length	330	380	380	380	380	380
Seatpost Offset	15	15	15	15	15	15
Standover Height	717	752	779	797	817	843
Stem Angle	-8	-8	-8	-8	-8	-8
Stem Length	90	100	100	110	110	120
Top Tube	517	534	549	559	574	589
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	1000	1015	1030
