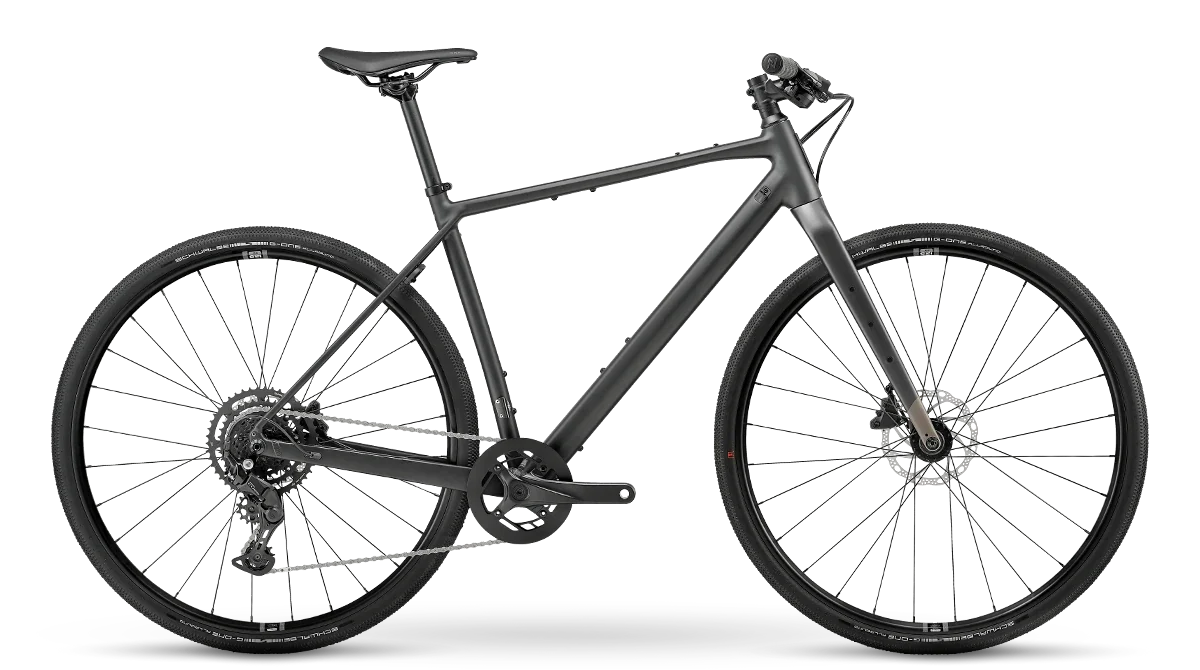

Singletrack, dirt roads, city parks, even the most remote back country trails – are you roaming or racing? If drops aren't your thing but you want the freedom of gravel riding, Search A Flat Bar is ready for your next adventure with modern gravel geo, a lightweight aluminum frame, carbon fork with adventure mounts, Shimano CUES 1x9 drivetrain, tire clearance up to 50c, and full-coverage fender, toptube bag, and water bottle mounts.



A progressive, modern gravel bike.

Search A Flat Bar features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.

The updated, longer fork adds stability and new-school geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.

Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.



Details

• Progressive and confidence-inspiring.
• A lightweight frame with options.
• Simplified Maintenance
• Wider Tire Clearance
• Adventure-Ready Mounts
• No Other Way Limited Lifetime Warranty.



Specs

Frameset
• Frame: Search Butted Aluminum w/ Smooth Welds
• Fork: Search Carbon, 51mm Offset, 12x100mm TA

Drivetrain
• Rear Shifter: Shimano CUES SL-U4000 Rapid Fire
• Rear Derailleur: Shimano CUES RD-U4000
• Crankset: Prowheel, 38T, ST, 170mm (S1–S4), 172.5mm (S5)
• Bottom Bracket: Shimano Cartridge Bearing, 68mm BSA
• Cassette: Shimano CS-LG300, 11-46T, 9-speed
• Chain: KMC Z9

Brakes
• Front Brake: Tektro HD-R280 Hydraulic
• Front Brake Rotor: Tektro 6-Bolt, 160mm
• Rear Brake: Tektro HD-R280 Hydraulic
• Rear Brake Rotor: Tektro 6-Bolt, 160mm
• Brake Levers: Tektro HD-R280 Hydraulic, Hydro 3-Finger Levers w/ Reach Adjust

Components
• Handlebar: Norco Alloy, 620mm (S1–S2), 640mm (S3–S5), 15mm rise
• Stem: Norco Alloy, 70mm Length, 31.8mm Clamp
• Seatpost: Aluminum, 27.2mm
• Headset: FSA Integrated Sealed Bearings No. 42, Tapered 1-1/8"–1.5" (IS42/28.6 | IS52/40)
• Saddle: Selle Royale SRX Gravel, 148mm
• Grips: Norco Lock-On, 130mm length
• Seatpost Clamp: Aluminum, Bolted, 31.8mm

Wheels
• Front Hub: Formula, 12x100mm, 28H, 6-Bolt
• Rear Hub: Formula, 12x142mm, HG, 28H, 6-Bolt
• Rims: WTB ST i25 2.0, 28H, 25mm internal width
• Front Tire: Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
• Rear Tire: Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
• Spokes/Nipples: Sapim Leader 2.0mm, Black w/ Black Brass Nipples
