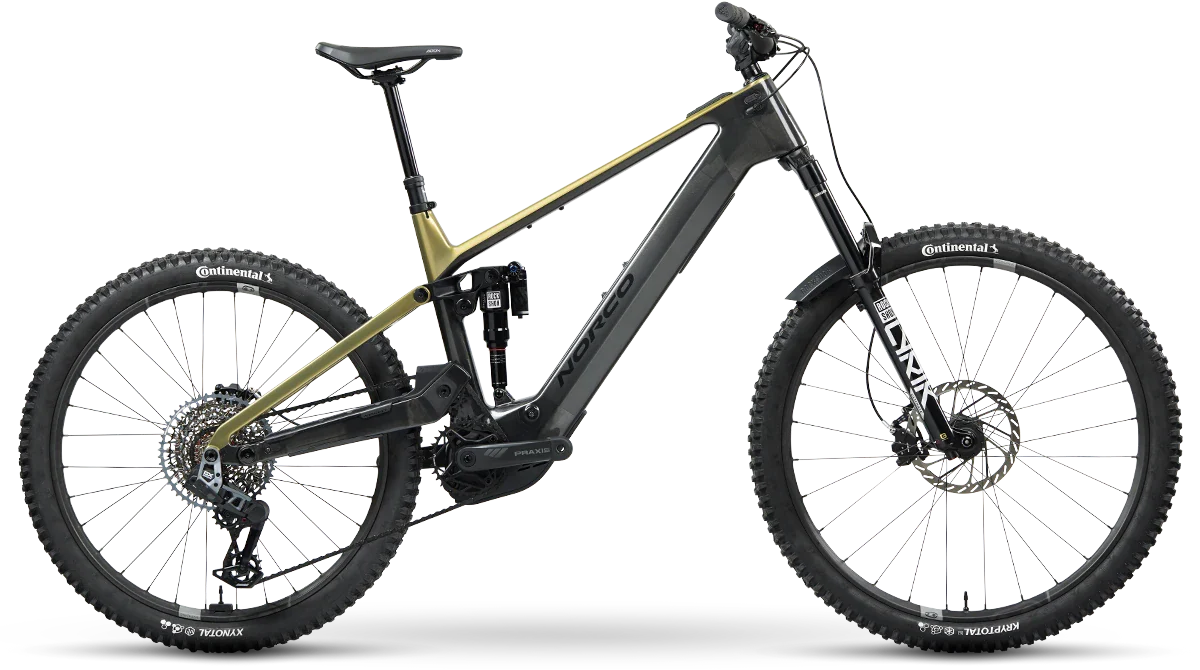

Start fast and finish strong on the new Sight VLT CX. Now with the new Bosch Performance Line CX motor, it’s almost 20% lighter than our previous generation, so you can commit harder and ride longer than ever before. The high pivot suspension layout with 160/150mm travel provides smooth, confident handling through rough terrain; this bike punches above its weight without losing playfulness.

New Bosch eMTB technology for a powerful lightweight package featuring VPS_HP suspension.

The new Bosch Performance Line CX drive unit is lighter and quieter than previous models, without losing the exceptional torque and power the CX system is known for.

The VPS_HP (Virtual Pivot Suspension | High Pivot) layout has a rearward axle path that moves out of the way of square-edged hits, maintaining momentum and smooth handling through the rough.

Details

• The perfect blend of power and low weight
• Quieter motor – all you hear is the trail
• Maximum drive unit durability
• Train harder, ride longer
• Uncompromised ride quality across sizes
• VPS_HP suspension platform
• Bosch eBike Flow App – personalize your experience and stay up to date
• Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes
• No Other Way Limited Lifetime Warranty

Specifications

Frameset

• Frame: Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

• Fork: RockShox Lyrik Ultimate RC2, 160mm Travel, 44mm Offset, E-MTB Rated, Fender Included

• Rear Shock: RockShox Super Deluxe Ultimate, 205x60mm TR

Drivetrain

• Rear Shifter: SRAM AXS POD Controller, Discrete Clamp

• Rear Derailleur: SRAM GX Eagle AXS T-Type, 12-speed

• Crankset: Praxis Carbon Bosch, 34T, 165mm

• Bottom Bracket: Bosch BES3 DU

• Cassette: SRAM 1275 Eagle T-Type, 10-52T, 12-speed

• Chain: SRAM GX Eagle T-Type, 12-speed

Brakes

• Front Brake Rotor: SRAM HS2, 200mm, 2mm thickness, 6-bolt

• Rear Brake: SRAM Maven Silver, Organic Pads

• Rear Brake Rotor: SRAM HS2, 180mm, 2mm thickness, 6-bolt

• Brake Levers: SRAM Maven Silver

Components

• Handlebar: OneUp Carbon, 800mm, 35mm Rise

• Stem: Norco Alloy, 40mm Length, 35mm Clamp

• Seatpost: TranzX YSI08FL RAD+ Travel Adjust Dropper, 31.6mm

  • 125mm (S1)

  • 150mm (S2)

  • 170mm (S3)

  • 200mm (S4, S5)

• Headset: FSA No.55 Sealed Bearing, 1 1/8"–1.5" Tapered (ZS44/28.6 | ZS56/40)

• Saddle: Fizik Terra Aidon X5

• Grips: WTB Wavelength, 130mm Length

• Seatpost Clamp: Norco Alloy Nutted Clamp, 34.9mm ID

Wheels

• Front Hub: Crank Bros. Synthesis Carbon Enduro, 15x110mm Boost, 32h, 6-bolt

• Rear Hub: Crank Bros. Synthesis Carbon Enduro, 12x148mm Boost, XD, 32h, 6-bolt

• Rims: Crank Bros. Synthesis Carbon Enduro

  • Front: 31.5mm, 28h

  • Rear: 29.5mm, 32h

  • Wheel Size: 29" Front / 27.5" Rear

• Front Tire: Continental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable

• Rear Tire: Continental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable

• Spokes/Nipples: Sapim D-Light (front), Sapim Race (rear)

Electric Components

• Drive Unit: Bosch Performance Line CX

• Battery: Bosch PowerTube 800Wh

• Switch: Bosch BRC 3300 Mini Remote, 22.2mm

• Power Button: Bosch BRC 3100 System Controller

Weight

• Total Weight: 21.7 kg (48 lbs)

• Weight Size: S3

Additional Features

• Feature 1: Bosch Smart System Rim Magnet

• Feature 2: Bosch PowerMore 250 Range Extender (Not Included)

		2	3	4	5
	Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
	Travel (mm front/mm rear)	160/150
	Reach	447.5	472.5	497.5	522.5
	Stack	627	636	645	654
HTA	Head Tube Angle	64
OS	Fork Offset	44
ST	Seat Tube Length	395	415	445	475
STA	Effective Seat Tube Angle	77.25	77.5	77.75	78
RC	Rear Centre Length	432	436	440	444
RC	Rear Centre Length at Sag	441	445	449	453
BB	Bottom Bracket Drop	25/5
BBH	Bottom Bracket Height	349
HTT	Horizontal Top Tube	589	613	637	661
WB	Wheelbase	1222	1255	1289	1322
SOH	Standover	701	711	714	729
HT	Head Tube Length	115	125	135	145
	Trail	133
	Recommended Seatpost Drop	150	170	200
	Maximum Post Insertion	250	270	300	330
	Stem Length	40
	Crank Length	165
	Tire Size	2.35" – 2.6"
	Water Bottle Compatible	1 x 620 mL	1 x 750 mL
