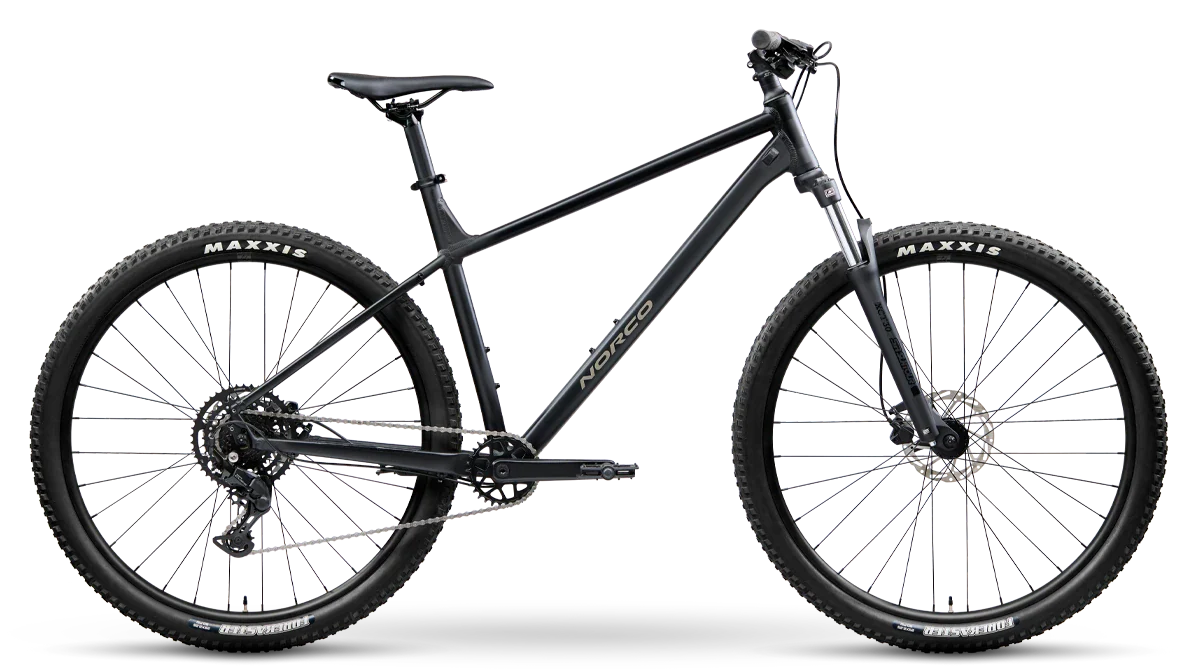

The Storm 100 features a progressive off-road design and features that’ll help you discover your favourite way to ride.

Details

• Progressive design for nimble, confident trail performance.
• The perfect amount of suspension for comfort and control on the trail.
• Mechanical systems protected from the elements.
• Stop on a dime.
• Size-specific wheels optimize the ride.
• Versatile frame features to take you anywhere.
• No Other Way Limited Lifetime Warranty.

The Storm 100 opens up the world of off-road adventure.

It’s built for off-road adventure, but the lightweight aluminum Storm 100 is more than happy to lead a double life on city streets and park paths.



Specs

Frameset

• Frame: Aluminum | Smooth Welding | 10x135mm QR

• Fork: Suntour XCT-30 DS Coil | 100mm Travel | 46mm Offset | 9x100mm QR

Drivetrain

• Rear Shifter: Shimano CUES SL-U4000 | 9-Speed

• Rear Derailleur: Shimano CUES RD-U4000 | 9-Speed | GS

• Crankset: Prowheel Alloy | 30T

  • 170mm (S–M), 175mm (L–XXL)

• Bottom Bracket: Cartridge | ST 73mm | 113mm Axle Length

• Cassette: Shimano CUES CS-LG300-9 | 11–46T | 9-Speed

• Chain: KMC CUES XGlide | 9/10/11-Speed Compatible

Brakes

• Front Brake: Tektro HD-M275 | Resin Pads

• Rear Brake: Tektro HD-M275 | Resin Pads

• Front Rotor: Tektro | 160mm | 6-Bolt

• Rear Rotor: Tektro | 160mm | 6-Bolt

• Brake Levers: Tektro HD-M275

Components

• Handlebar: 6061 Alloy DB

  • 750mm (S) | 780mm (M–XXL) | 30mm Rise

• Stem: Alloy | 50mm Length | 31.8mm Clamp

• Seatpost: Alloy | 31.6mm

  • 300mm (S), 400mm (M–XXL)

• Headset: Zero Stack | 1-1/8" Steer

  • ZS44/28.6 (Top) | ZS44/30 (Bottom)

• Headset Spacers: 3 x 10mm

• Saddle: Norco XC | Steel Rails

• Grips: DDK Lock-On | 139mm Length

• Pedals: Nylon Flat Pedals

• Seatpost Clamp: Norco Alloy QR | 34.9mm Inner Diameter

Wheels

• Front Hub: Formula DC-1420 | 9x100mm QR | 32h | 6-Bolt

• Rear Hub: Formula DC-1422 | 10x135mm QR | HG | 32h | 6-Bolt

• Rims: DP 27 | 27mm Inner Width | 32h

• Spokes/Nipples: Stainless Steel | 14g

• Front Tire: Maxxis Forekaster | 29x2.25"

  • Size S: 27.5x2.25" | Wire Bead

• Rear Tire: Maxxis Forekaster | 29x2.25"

  • Size S: 27.5x2.25" | Wire Bead

Weight

• Weight: 15.27 kg / 33.6 lbs

• Size Measured: Large
