Whether your goal is to escape on gravel back roads, far from cars and crowds, toe the start line at your first gravel race, or simply get the most versatile bike on the road or dirt, no bike is better than the new Diverge. It's quite simply the fastest, most capable - and just maybe the most fun - alloy bike we've ever made, delivering a ride that's quick and lively, but stable and confidence inspiring when the terrain gets rough. With all-new gravel geometry and category leading tire clearance, the new Diverge represents everything we've learned over more than 40 years of riding road, gravel and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. It's the ultimate getaway vehicle.

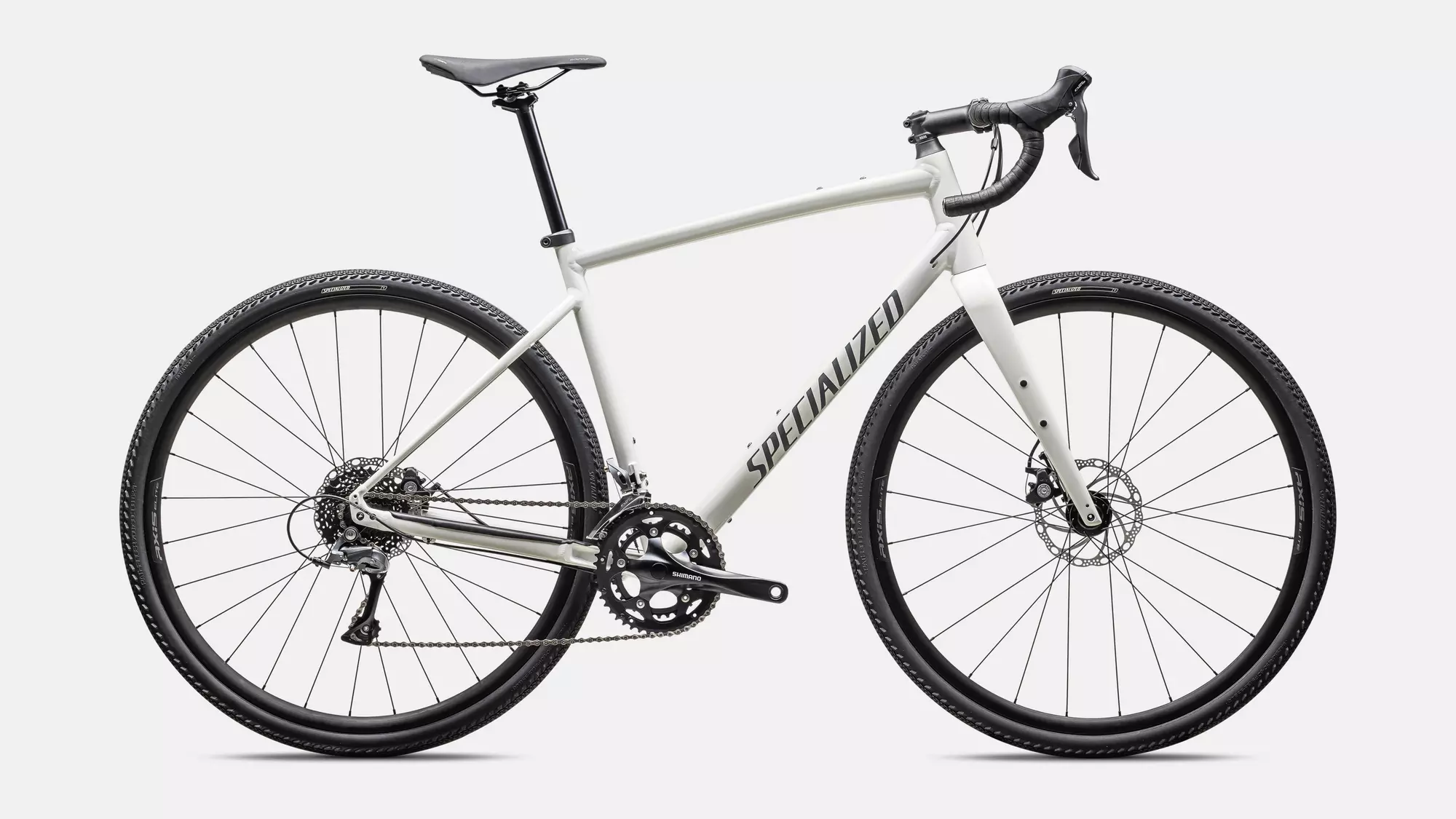

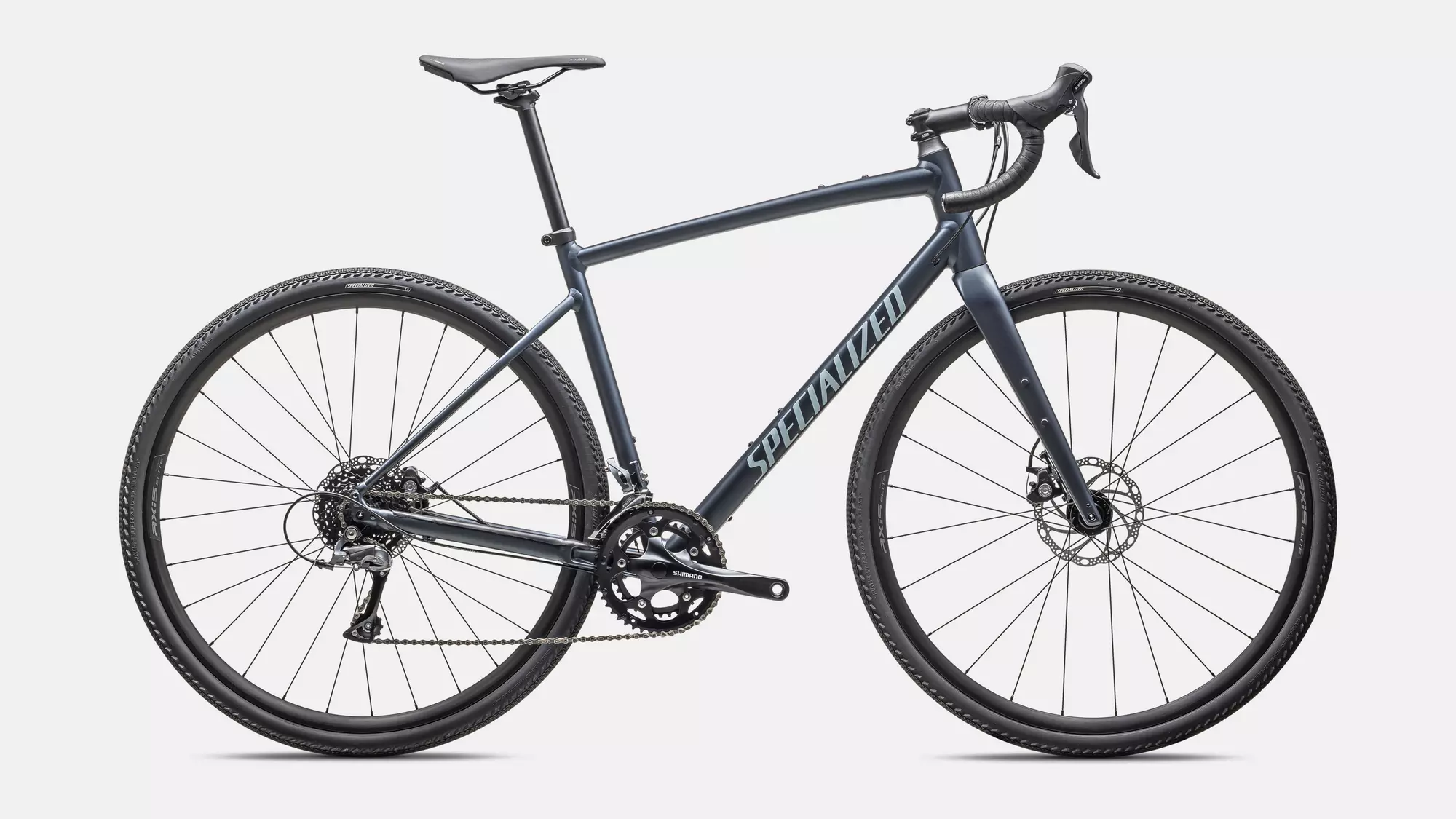

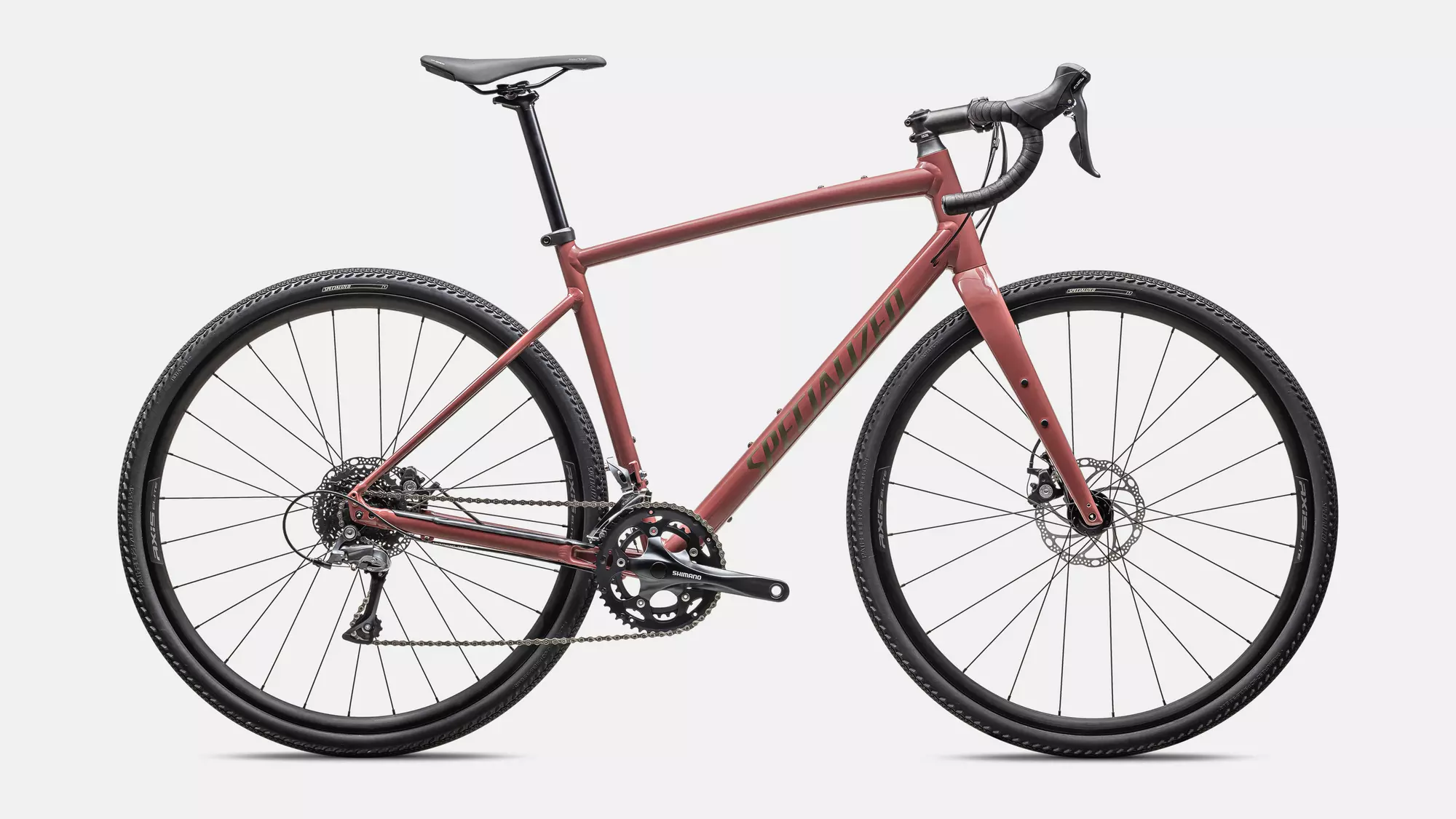

With a premium E5 alloy frame and a full carbon FACT fork the Diverge E5 delivers a fast, confident and comfortable ride on road, in the dirt, and over thick gravel. Shimano’s Claris 2x8 group gives a wide range of gears for any terrain, while Axis Elite alloy wheels and Pathfinder Sport 38mm tires provide an efficient ride on pavement with the versatility for hard pack dirt riding.

• Our Premium E5 Aluminum frame provides a stiff, light, and durable platform. When mated to our full carbon FACT fork, the Diverge E5 becomes a light, lively and versatile bike ready to attack any surface.

• We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out.

• Nothing unlocks a bike’s capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive-side chain stay utilizing a solid beam of carbon behind the chainrings, we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length.

Specs

Frameset

• Frame: Specialized Diverge E5 Premium Aluminum

  • Threaded Bottom Bracket | Internal Cable Routing

  • 12x142mm Thru-Axle | Flat-Mount Disc

• Seat Binder: Alloy | 30.8mm

Suspension

• Fork: FACT Carbon

  • Full Carbon Steerer | 12x100mm Thru-Axle

  • Flat-Mount Disc

Brakes

• Front Brake: Tektro Mira | Mechanical Disc | Flat-Mount

• Rear Brake: Tektro Mira | Mechanical Disc | Flat-Mount

Drivetrain

• Shift Levers: Shimano Claris 2000 | 8-Speed

• Front Derailleur: Shimano Claris | Braze-on Mount

• Rear Derailleur: Shimano Claris | 8-Speed

• Cassette: SunRace | 8-Speed | 11–34T

• Chain: KMC X8 | w/ Missing Link™

• Crankset: Shimano Claris R200

• Chainrings: 50/34T

• Bottom Bracket: Shimano | 68mm Threaded

Wheels & Tires

• Front Wheel: AXIS Elite Disc

• Rear Wheel: AXIS Elite Disc

• Front Tire: Specialized Pathfinder Sport | 700x38c

• Rear Tire: Specialized Pathfinder Sport | 700x38c

• Tubes: 700x28/38mm | 48mm Presta Valve

Cockpit

• Stem: 3D-Forged Alloy | 31.8mm Clamp | 7° Rise

• Handlebar: Specialized Shallow Drop | 6061 Alloy

  • 70mm Reach | 125mm Drop | 31.8mm Clamp

• Tape: Supacaz Suave

• Saddle: Body Geometry Bridge | Steel Rails

• Seatpost: Alloy | 2-Bolt Clamp | 12mm Offset | 27.2mm | Anti-Corrosion Hardware

Product Details

• Product ID: 223493

Weight

• Bike Weight: 10.24 kg / 22 lb 9.2 oz

• Size Measured: 56

---

Weights based on production painted frames as pictured. Actual weights may vary by colorway, frame size, and component selection. Specifications are subject to change without notice.



	44	49	52	54	56	58	61
Crank Length	165mm	165mm	170mm	170mm	170mm	175mm	175mm
Handlebar Width	360mm	380mm	400mm	420mm	420mm	440mm	440mm
Stem Length	60mm	60mm	70mm	80mm	90mm	100mm	100mm
Saddle Width	155mm	155mm	155mm	143mm	143mm	143mm	143mm
Seatpost Length	350mm	350mm	350mm	400mm	400mm	400mm	400mm
Stack	529mm	545mm	561mm	578mm	599mm	618mm	635mm
Reach	357mm	365mm	374mm	383mm	392mm	401mm	410mm
Head Tube Length	110mm	125mm	140mm	155mm	175mm	195mm	213mm
Head Tube Angle	69.5°	70°	70.5°	71.25°	71.75°	71.75°	71.75°
BB Height	270mm	270mm	270mm	270mm	270mm	270mm	270mm
BB Drop	80mm	80mm	80mm	80mm	80mm	80mm	80mm
Trail	72mm	69mm	66mm	61mm	57mm	57mm	57mm
Fork Length, Full	390mm	390mm	390mm	390mm	390mm
