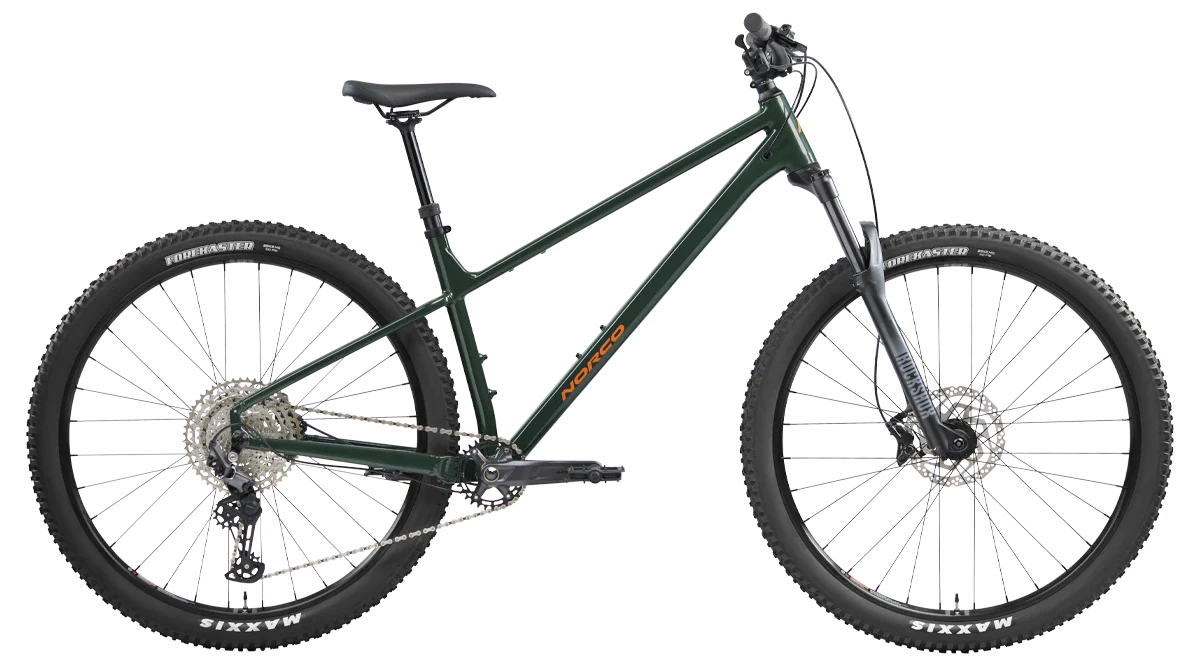

Charger 1 is a durable, modern hardtail trail bike with progressive geometry, stable handling, and premium frame features.

A hard-charging hardtail for pushing riding progression.

A low standover top tube design, modern trail geometry, and short stays make this a solid bike for anyone when heading out on your favourite trails.

Details

• Durable and stable for a sturdy ride you can trust.
• A smooth, refined look.
• Supportive, progressive design for uncompromised performance.
• Premium frame features.
• Frame sizes to accommodate all rider sizes.
• Multiple model options.
• No Other Way Limited Lifetime Warranty.




Specs

Frameset

• Frame: Aluminum, Smooth Welding, 12x148mm Boost, Tapered Head Tube, UDH Hanger

• Fork: RockShox Judy S TK Air, 130mm travel, 51mm offset, 15x110mm Boost

Drivetrain

• Rear Shifter: Shimano Deore SL-M6100-R, 12-speed

• Rear Derailleur: Shimano Deore RD-M6100, 12-speed, SGS

• Crankset: Shimano Deore FC-MT512 2-piece, 30T

  • 170mm (S–M)

  • 175mm (L–XXL)

• Bottom Bracket: Shimano BB-MT501, BSA 68/73mm

• Cassette: Shimano Deore CS-M6100, 10-51T, 12-speed

• Chain: KMC 12-speed

Brakes

• Front Brake: Shimano Deore BD-MT410, resin pads

• Front Rotor: Shimano RT-26, 180mm, Center Lock

• Rear Brake: Shimano Deore BD-MT410, resin pads

• Rear Rotor: Shimano RT-26, 160mm, Center Lock

• Brake Levers: Shimano Deore BD-MT410

Components

• Handlebar: Norco Aluminum, 780mm width, 30mm rise

• Stem: Alloy, 40mm length, 31.8mm clamp

• Seatpost: X-Fusion Manic LC, 31.6mm

  • 130mm (S)

  • 150mm (M)

  • 170mm (L–XXL)

• Headset: Sealed cartridge bearings, tapered

  • IS42/28.6 | IS52/40

• Headset Spacers: 3 × 10mm

• Saddle: WTB Volt Sport, Medium

• Grips: DDK Lock-On, 139mm

• Pedals: Nylon flat pedals

• Seatpost Clamp: Norco Alloy, bolted, 34.9mm ID

Wheels

• Front Hub: Formula DC-511, 15x110mm, 32H, Center Lock

• Rear Hub: Formula DC-3248, 12x148mm Boost, HG, 32H, Center Lock

• Rims: WTB ST TCS 2.0, 27mm internal width, 32H

• Front Tire: Maxxis Forekaster

  • 29×2.4" (27.5×2.25" on size S)

• Rear Tire: Maxxis Forekaster


Geometry

•


  • 29×2.4" (27.5×2.25" on size S)

• Spokes/Nipples: Stainless steel, 14g

Weight

• Weight: 13.54 kg (29.8 lbs)

• Size: L
