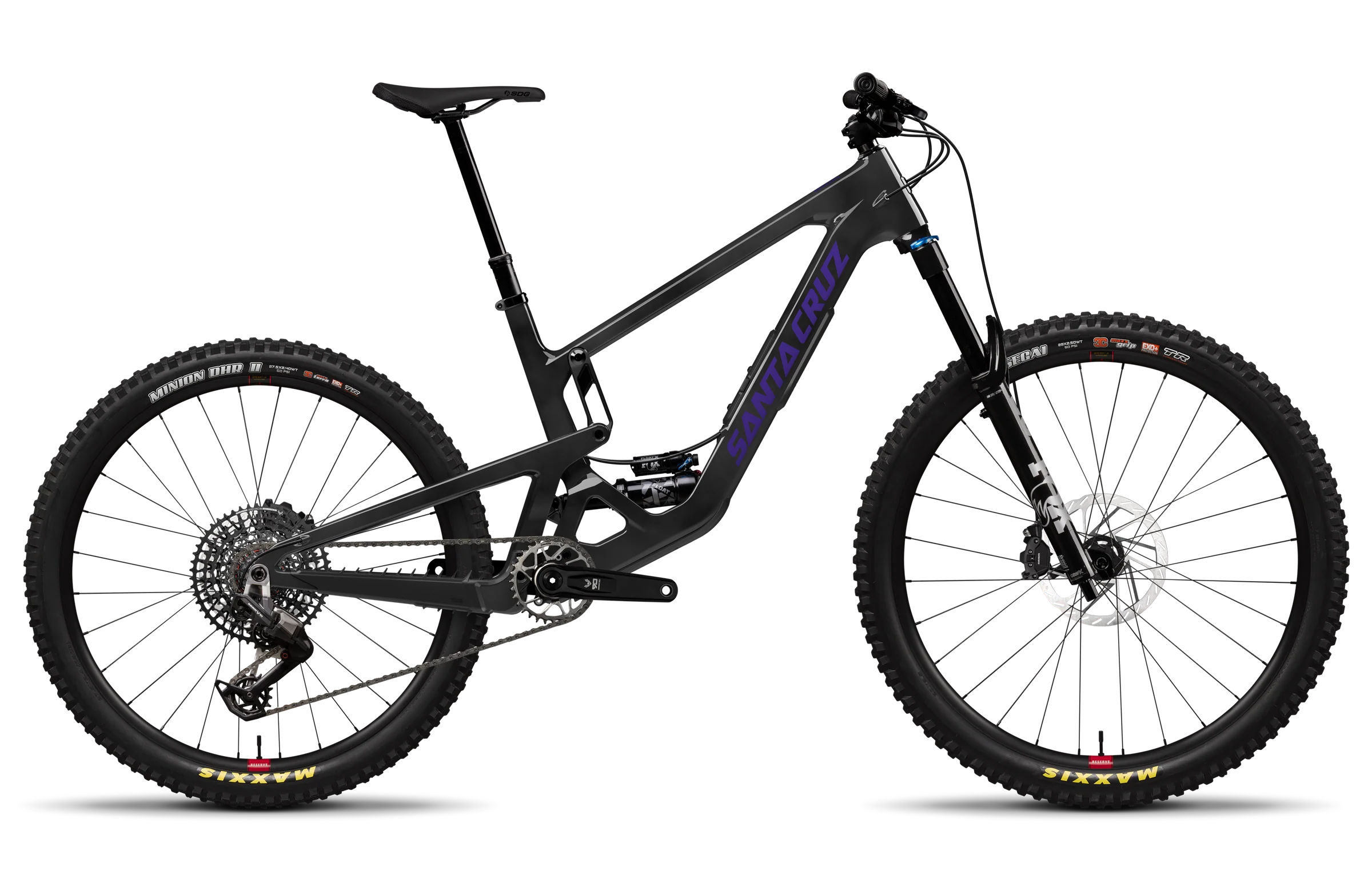

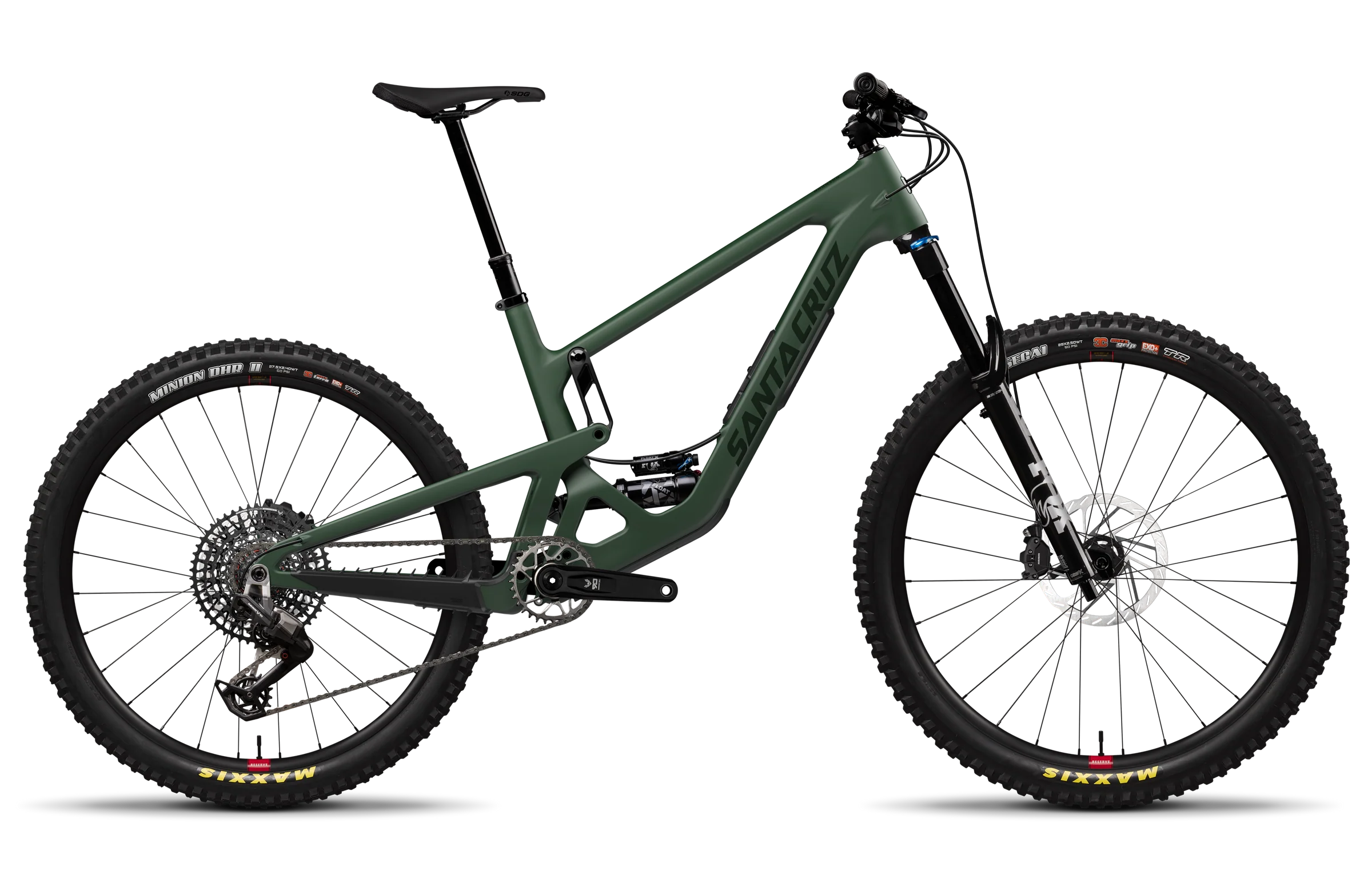

2026 Santa Cruz Bronson C 90-Kit
When you can only have one bike, and your mission is to ride it into oblivion, this is the one. From manicured bike parks to blown-out loamy berms, alpine lines to backyard trails, the Bronson feels just as at home in the air as it does in the dirt. For the rider with a Peter Pan disposition or anyone looking to get into a pan-flat tabletop position, the Bronson encourages bad behavior.
Specs
Frame
Frame: Carbon C MX 150mm Travel VPP™
Weight: 34.14lbs / 15.48 kg
Wheel Size: MX
Suspension
Fork: FOX 36 Float Performance, Grip, 160mm
Shock: FOX Float X Performance, 230x57.5
Drivetrain
Bottom Bracket: SRAM DUB 73mm MTB Wide BB
Cassette: SRAM XS 1275 Eagle T-Type, 10-52t
Chain: SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide: N/A
Crankset: SRAM 90 Eagle DUB T-Type Crankset, 32t
Rear Derailleur: SRAM 90 Eagle T-Type, 12spd
Right Shifter: SRAM 90 Eagle T-Type, 12spd
Brakes
Front Brakes: SRAM Maven Base
Front Rotor: SRAM HS2 200mm
Rear Rotor: SRAM HS2 180mm
Cockpit
Grips / Bar Tape: Santa Cruz Bicycles House Grips
Handlebars: OneUp Aluminum Bar
Headset: Cane Creek 50 IS Integrated Headset
Saddle: SDG Bel-Air V3 Lux-Alloy
Seatpost: OneUp Dropper Post, 31.6
Stem: OneUp Enduro Stem, 42mm
Wheels
Front Rim: Reserve 30|TR AL
Front Hub: DT Swiss 370, 15x110, 6-Bolt, 28h
Front Tire: Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Rear Rim: Reserve 30|TR AL
Rear Hub: DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
Rear Tire: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Specs
Bottom Bracket Shell: 73mm Threaded
Rear Brake Mount: 180 PM
Shock Length: 230mm
Fork Offset: 44mm
Front Derailleur Mount: No compatibility
Headset: Integrated (IS41/52)
Max Chainring Size: 36t
Max Rotor Size: 223mm
Max Tire Clearance: 2.5"
Seat Clamp Diameter: 36.4mm
Seat Post Diameter: 31.6mm
Shock Bushing Size Front: 40x10 (standard bushing)
Shock Bushing Size Rear: 30x8 (roller bearing)
Shock Stroke: 57.5mm
Suspension System: VPP
Water Bottle Mounts: 1
Size Guide
| Size | Rider Height | Reach |
|---|---|---|
| Small | 5'1" – 5'5" | 435mm |
| Medium | 5'5" – 5'9" | 460mm |
| Large | 5'9" – 6'1" | 480mm |
| X-Large | 6'1" – 6'4" | 500mm |
| XX-Large | 6'4" – 6'7" | 525mm |
Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach (Hi/Lo) | 435/432 | 460/457 | 480/478 | 500/498 | 525/523 |
| Stack (Hi/Lo) | 623/625 | 632/634 | 641/643 | 659/661 | 668/670 |
| Head Tube Angle (Hi/Lo) | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Head Tube Length (Hi/Lo) | 110 | 120 | 130 | 150 | 160 |
| Rear Center (Hi/Lo) | 437 | 439 | 442 | 445 | 448 |
| Front Center (Hi/Lo) | 771 | 800 | 825 | 853 | 883 |
| BB Height (Hi/Lo) | 344/341 | 344/341 | 344/341 | 344/341 | 344/341 |
| BB Drop Front (Hi/Lo) | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| BB Drop Rear (Hi/Lo) | 10/13 | 10/13 | 10/13 | 10/13 | 10/13 |
| Wheelbase (Hi/Lo) | 1208 | 1240 | 1267 | 1299 | 1331 |
| Top Tube Length (Hi/Lo) | 572 | 595 | 614 | 636 | 662 |
| Seat Tube Length (Hi/Lo) | 380 | 405 | 430 | 460 | 500 |
| Seat Tube Angle (Hi/Lo) | 77.6°/77.3° | 77.9°/77.6° | 78.2°/77.9° | 78.3°/78° | 78.4°/78.1° |
| Standover Height (Hi/Lo) | 721 | 723 | 725 | 727 | 731 |
