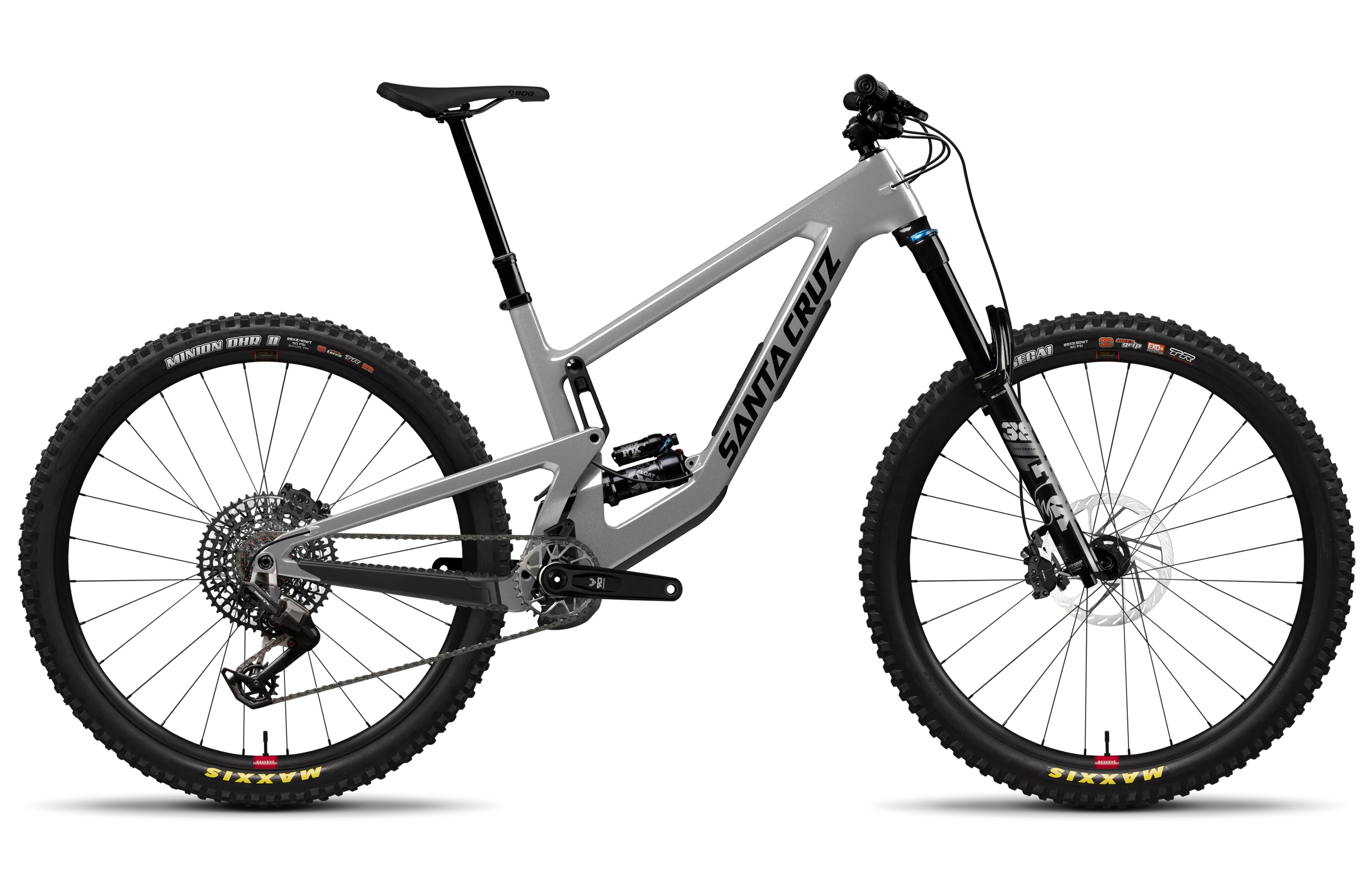

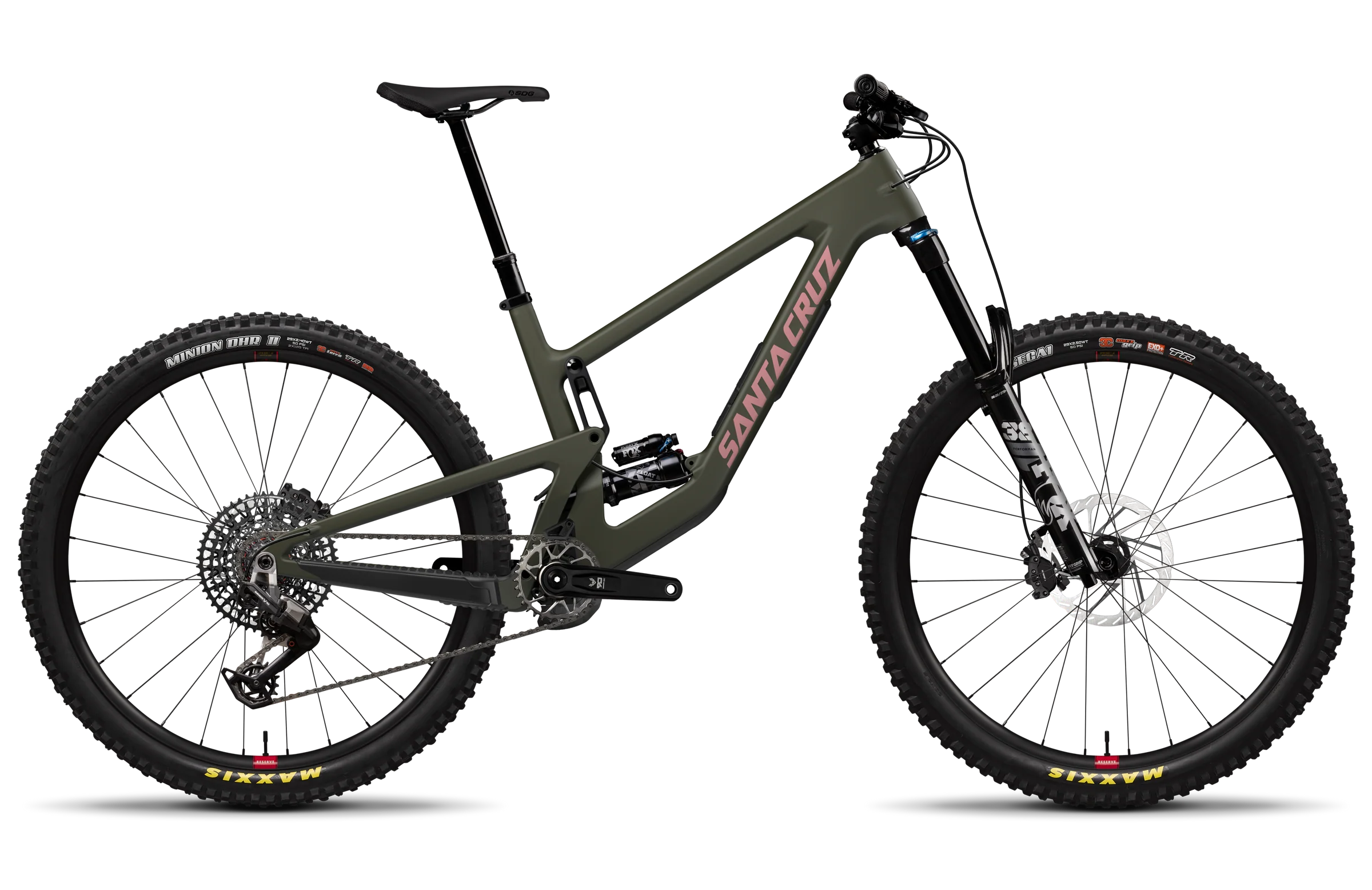

Seriously. The Megatower’s big wheels, long-travel and tough carbon fiber chassis delivers the high-speed security traits of a race bike. Yet the relatively steep seat angle and size-specific geo maintain the Mega’s mega pedaling ability, elevating its reputation as the perfect choice for big gravity rides, park laps and enduro racing.

Specs



Frame
Frame: Carbon C 29" 170mm Travel VPP™
Weight: 36.06lbs / 16.36 kg
Wheel Size: 29"

Suspension
Fork: FOX 38 Float Performance, Grip, 170mm
Shock: FOX Float X Performance, 230x65

Drivetrain
Bottom Bracket: SRAM DUB 73mm MTB Wide BB
Cassette: SRAM XS 1275 Eagle T-Type, 10-52t
Chain: SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide: OneUp Bash Guide
Crankset: SRAM 90 Eagle DUB T-Type Crankset, 32t
Rear Derailleur: SRAM 90 Eagle T-Type, 12spd
Right Shifter: SRAM 90 Eagle T-Type, 12spd

Brakes
Front Brakes: SRAM Maven Base
Front Rotor: SRAM HS2 200mm
Rear Rotor: SRAM HS2 200mm

Cockpit
Grips / Bar Tape: Santa Cruz Bicycles House Grips
Handlebars: OneUp Aluminum Bar
Headset: Cane Creek 50 IS Integrated Headset
Saddle: SDG Bel-Air V3 Lux-Alloy
Seatpost: OneUp Dropper Post, 31.6
Stem: OneUp Enduro Stem, 42mm

Wheels
Front Rim: Reserve 30|TR AL
Front Hub: DT Swiss 370, 15x110, 6-Bolt, 28h
Front Tire: Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+
Rear Rim: Reserve 30|HD AL
Rear Hub: DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 32h
Rear Tire: Maxxis Minion DHR II 29x2.4", 3C MaxxTerra, Double Down

Specs
Bottom Bracket Shell: 73mm Threaded
Rear Brake Mount: 200mm PM
Shock Length: 230mm
Fork Offset: 44mm
Front Derailleur Mount: No compatibility
Headset: Integrated (IS41/52)
Max Chainring Size: 36t
Max Tire Clearance: 2.5"
Seat Clamp Diameter: 36.4mm
Seat Post Diameter: 31.6mm
Shock Bushing Size Front: 30x8
Shock Bushing Size Rear: 30x8
Shock Stroke: 62.5mm or 65mm
Suspension System: VPP
Water Bottle Mounts: 1

Size Guide

Size	Rider Height	Reach
Small	5'1" – 5'5"	430mm
Medium	5'5" – 5'9"	455mm
Large	5'9" – 6'1"	475mm
X-Large	6'1" – 6'4"	495mm
XX-Large	6'4" – 6'7"	520mm
