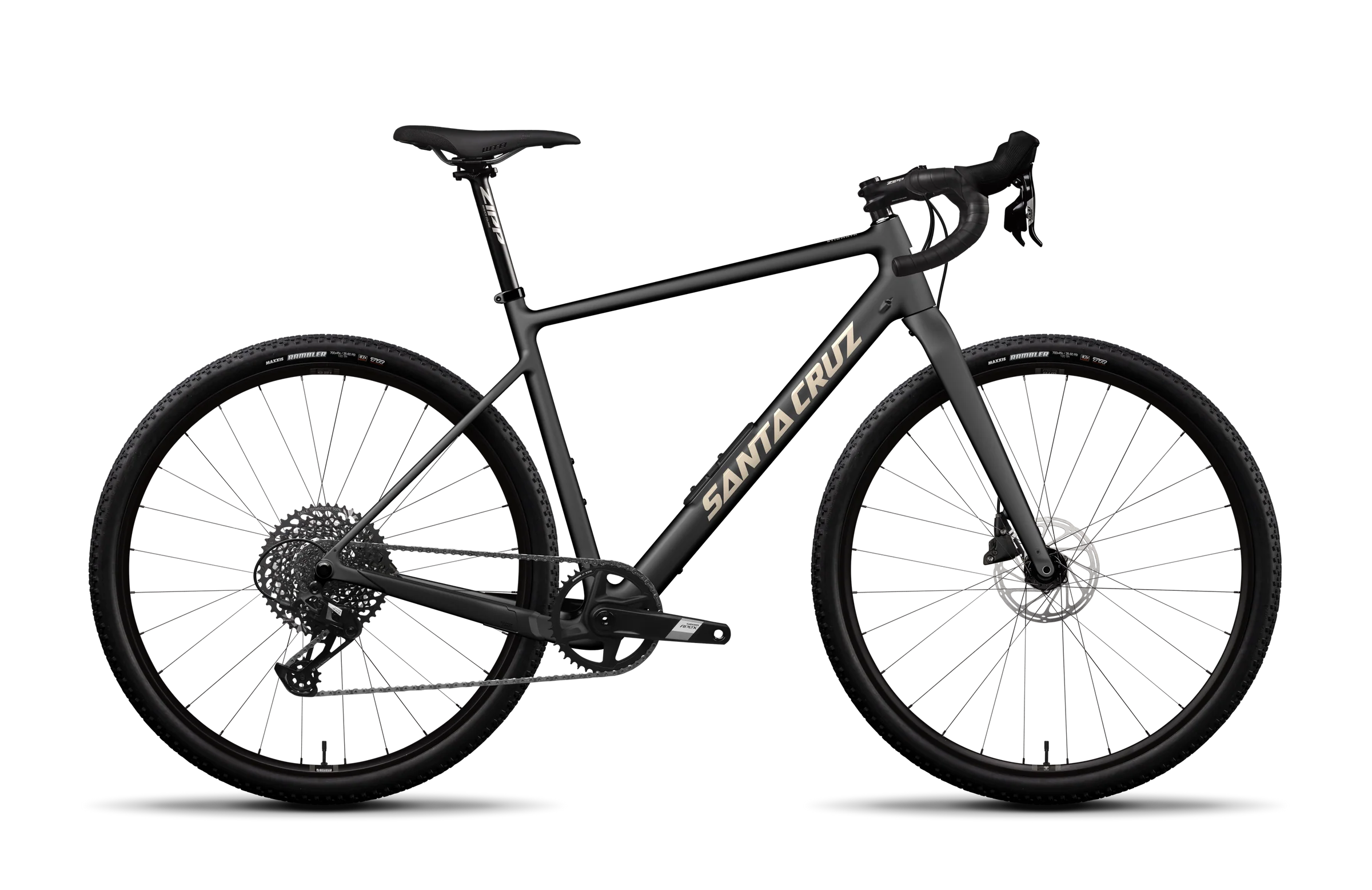

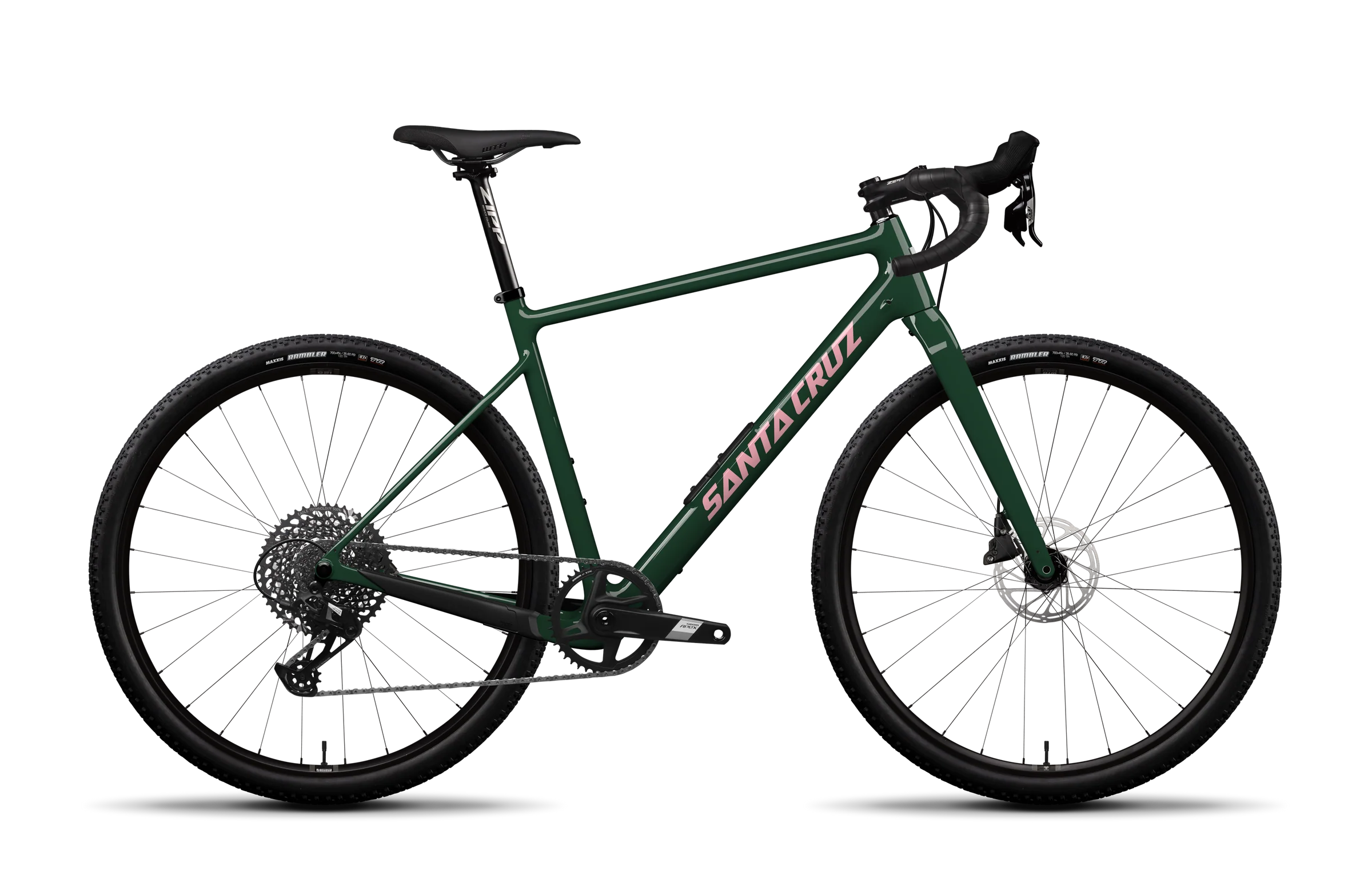

The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.

Specs

*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.

Frame
Material	Carbon CC
Frame	Carbon CC Gravel
Weight	20.86lbs / 9.46kg
Wheel Size	700c
Suspension
Fork	Carbon
Shock	N/A
Drivetrain
Bottom Bracket	SRAM DUB 68mm Road Wide BB
Cassette	SRAM XG1275 Eagle, 12spd, 10-50t
Chain	SRAM SX Eagle, 12spd
Chainguide	N/A
Crankset	SRAM Apex, 42t XS/S: 170mm, M/L: 172.5mm, XL/XXL 175mm
Rear Derailleur	SRAM Apex Eagle, 12spd
Right Shifter	SRAM Apex
Brakes
Brakes	SRAM Apex
Front Rotor	SRAM Centerline, Centerlock, 160mm
Rear Rotor	SRAM Centerline, Centerlock, 160mm
Cockpit
Grips / Bar Tape	Velo Bar Tape
Handlebars	Zipp Service Course 70 XPLR AL Bar, 31.8 XS/S: 42cm, M: 44cm, L/XL/XXL: 46cm
Headset	FSA IS-2/47/42 ACB
Saddle	WTB Silverado Medium, CroMo
Seatpost	Zipp Service Course, 27.2 All Sizes: 350mm
Stem	Zipp Service Course Stem All Sizes: 70mm
Wheels
Front Rim	WTB ASYM i25 28h 700c
Front Hub	DT Swiss 370, 12x100, Centerlock, 28h
Front Tire	Maxxis Rambler, 700x45c, DC, EXO
Rear Rim	WTB ASYM i25 28h 700c
Rear Hub	DT Swiss 370, 12x142, XDr, Centerlock, 28h
Rear Tire	Maxxis Rambler, 700x45c, DC, EXO
Valves	Reserve Fillmore Valves
Specs
Bottom Bracket Shell	Threaded 68mm
Rear Brake Mount	160mm FM
Fork Axle to Crown	430mm
Fork Compatibility	40mm
Fork Offset	45mm
Front Derailleur Mount	Clamp On
Headset	Integrated (IS41/52)
Max Chainring Size	42t (1x) | 50t (2x)
Max Tire Clearance	50mm (1x) | 45mm (2x)
Rear Spacing	142mm
Seat Clamp Diameter	31.8mm
UDH Compatible	Yes
Water Bottle Mounts	3

Size Guide

X-Small

Small

Medium

Large

X-Large

XX-Large

Geometry
