- Frameset
- Frame
- Crux FACT 10r Carbon, Rider First Engineeredâą, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
- Suspension
- Fork
- S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
- Brakes
- Front Brake
- Shimano GRX RX820
- Rear Brake
- Shimano GRX RX820
- Drivetrain
- Crankset
- Shimano GRX RX820 40t
- Rear Derailleur
- Shimano GRX RX822-GS, 12-speed
- Bottom Bracket
- Shimano Threaded BSA BB
- Chain
- Shimano XT M8100, 12-speed w/ quick link
- Cassette
- Shimano XT, 12-speed, 10-45t
- Shift Levers
- Shimano GRX ST-RX820
- Wheels & tires
- Front Wheel
- DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Rear Wheel
- DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Front Tire
- Pathfinder 700x40, Tubeless Ready
- Rear Tire
- Pathfinder 700x40, Tubeless Ready
- Inner Tubes
- Presta, 700x32-50mm
- Cockpit
- Stem
- 3D-forged alloy, 31.8mm, 7-degree rise
- Saddle
- Body Geometry Power Sport, steel rails
- SeatPost
- Roval Terra Carbon Seat Post, 20mm Offset
- Handlebars
- Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12Âș flare
- Seat Binder
- Specialized Alloy, 30mm
- Tape
- Supacaz Super Sticky Kush
- Product details
- Product ID
- 223490
- Weight
- Weight Size
- 56
- Weight
- 8.66 kg (19 lb, 1.5 oz)
đ Free Worldwide Shipping on All Orders!Shop Now
1 / 2

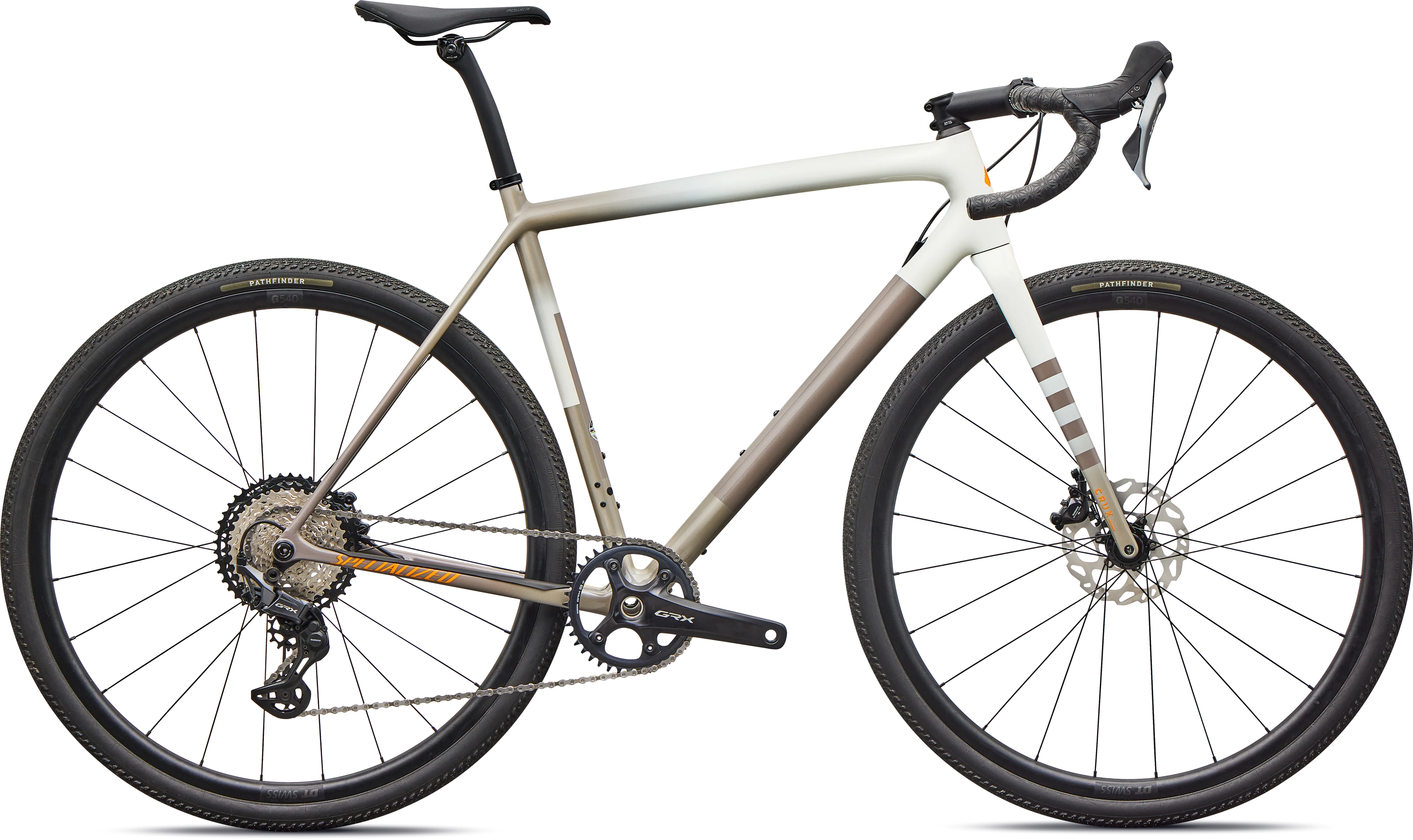

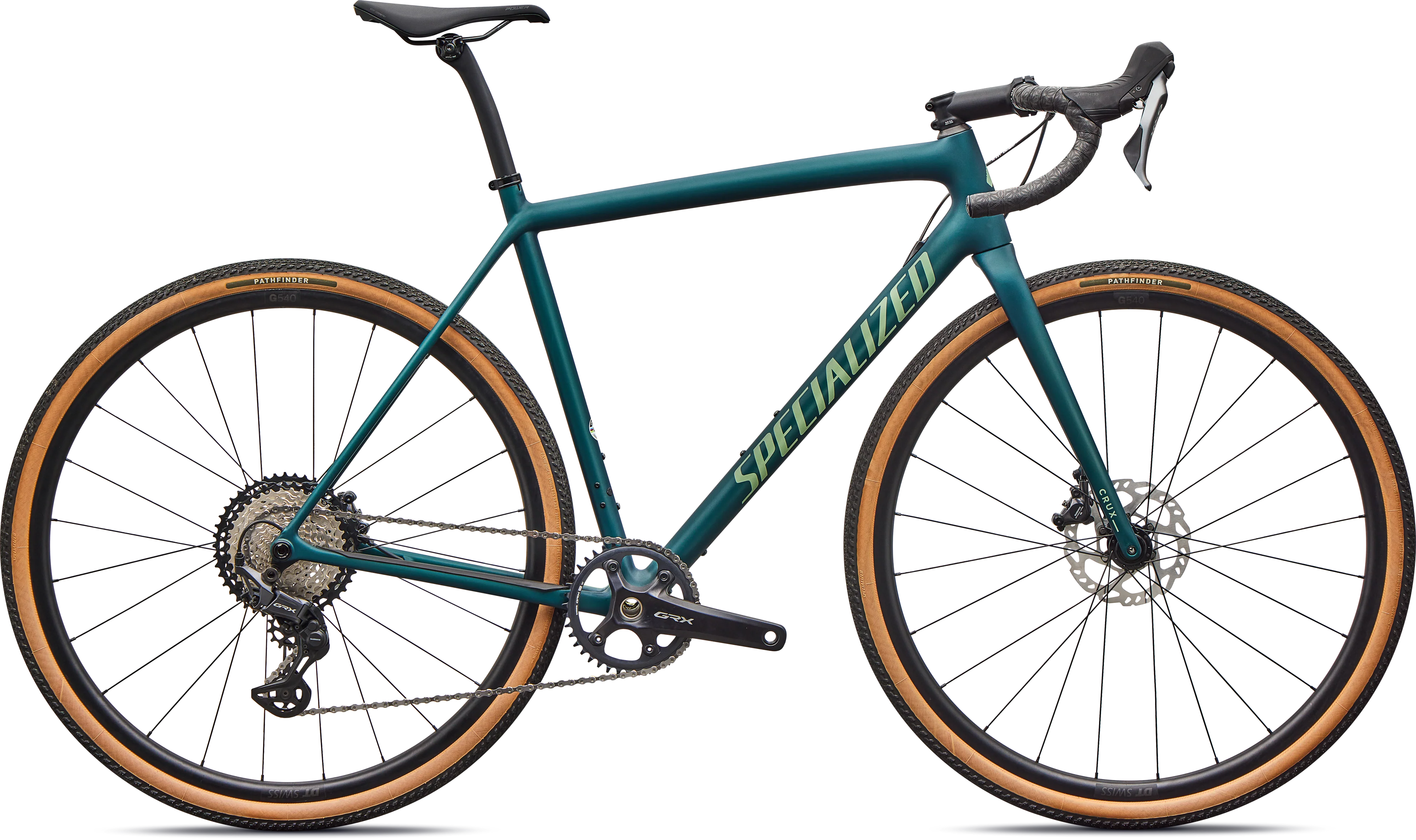

2026 Specialized Crux Comp - Shimano GRX
Details
The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. Itâs not just the ultimate expression of gravel performance, itâs your one-way ticket to gravel enlightenment.
This Crux Comp comes spec'd with a reliable and smooth-shifting Shimano GRX 12-speed groupset, tough DT G540 Disc wheels, and 2Bliss Ready, 700x40mm Pathfinder tires that hookup over nasty terrain.
- Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1â tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Cruxâs iconic history in âcross.
Specs
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 70 | 80 | 90 | 100 | 110 | 110 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 330 | 330 | 330 | 380 | 380 | 380 |
| Stack | 530 | 547 | 560 | 578 | 598 | 621 |
| Reach | 375 | 382 | 388 | 397 | 405 | 415 |
| Head Tube Length | 100 | 115 | 130 | 147 | 167 | 190 |
| Head Tube Angle | 70.5 | 71.25 | 71.5 | 72 | 72.25 | 72.5 |
| BB Height | 284 | 284 | 286 | 286 | 286 | 286 |
| BB Drop | 74 | 74 | 72 | 72 | 72 | 72 |
| Trail | 74 | 69 | 67 | 64 | 62 | 60 |
| Fork Length, Full | 401 | 401 | 401 | 401 | 401 | 401 |
| Fork Rake/Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| Front Center | 594 | 600 | 608 | 618 | 630 | 644 |
| Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 |
| Wheelbase | 1008 | 1014 | 1023 | 1033 | 1045 | 1059 |
| Top Tube Length, Horizontal | 512 | 539 | 549 | 568 | 582 | 599 |
| Bike Standover Height | 749 | 772 | 794 | 816 | 841 | 866 |
| Seat Tube Length | 466 | 496 | 521 | 546 | 576 | 606 |
| Seat Tube Angle | 75.5 | 74 | 74 | 73.5 | 73.5 | 73.5 |
Select Color
Select Size
From $1,277.25
Original: $3,649.30
-65%2026 Specialized Crux Comp - Shimano GRXâ
$3,649.30
$1,277.25Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Details
The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. Itâs not just the ultimate expression of gravel performance, itâs your one-way ticket to gravel enlightenment.
This Crux Comp comes spec'd with a reliable and smooth-shifting Shimano GRX 12-speed groupset, tough DT G540 Disc wheels, and 2Bliss Ready, 700x40mm Pathfinder tires that hookup over nasty terrain.
- Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1â tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Cruxâs iconic history in âcross.
Specs
- Frameset
- Frame
- Crux FACT 10r Carbon, Rider First Engineeredâą, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
- Suspension
- Fork
- S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
- Brakes
- Front Brake
- Shimano GRX RX820
- Rear Brake
- Shimano GRX RX820
- Drivetrain
- Crankset
- Shimano GRX RX820 40t
- Rear Derailleur
- Shimano GRX RX822-GS, 12-speed
- Bottom Bracket
- Shimano Threaded BSA BB
- Chain
- Shimano XT M8100, 12-speed w/ quick link
- Cassette
- Shimano XT, 12-speed, 10-45t
- Shift Levers
- Shimano GRX ST-RX820
- Wheels & tires
- Front Wheel
- DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Rear Wheel
- DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Front Tire
- Pathfinder 700x40, Tubeless Ready
- Rear Tire
- Pathfinder 700x40, Tubeless Ready
- Inner Tubes
- Presta, 700x32-50mm
- Cockpit
- Stem
- 3D-forged alloy, 31.8mm, 7-degree rise
- Saddle
- Body Geometry Power Sport, steel rails
- SeatPost
- Roval Terra Carbon Seat Post, 20mm Offset
- Handlebars
- Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12Âș flare
- Seat Binder
- Specialized Alloy, 30mm
- Tape
- Supacaz Super Sticky Kush
- Product details
- Product ID
- 223490
- Weight
- Weight Size
- 56
- Weight
- 8.66 kg (19 lb, 1.5 oz)
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 70 | 80 | 90 | 100 | 110 | 110 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 330 | 330 | 330 | 380 | 380 | 380 |
| Stack | 530 | 547 | 560 | 578 | 598 | 621 |
| Reach | 375 | 382 | 388 | 397 | 405 | 415 |
| Head Tube Length | 100 | 115 | 130 | 147 | 167 | 190 |
| Head Tube Angle | 70.5 | 71.25 | 71.5 | 72 | 72.25 | 72.5 |
| BB Height | 284 | 284 | 286 | 286 | 286 | 286 |
| BB Drop | 74 | 74 | 72 | 72 | 72 | 72 |
| Trail | 74 | 69 | 67 | 64 | 62 | 60 |
| Fork Length, Full | 401 | 401 | 401 | 401 | 401 | 401 |
| Fork Rake/Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| Front Center | 594 | 600 | 608 | 618 | 630 | 644 |
| Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 |
| Wheelbase | 1008 | 1014 | 1023 | 1033 | 1045 | 1059 |
| Top Tube Length, Horizontal | 512 | 539 | 549 | 568 | 582 | 599 |
| Bike Standover Height | 749 | 772 | 794 | 816 | 841 | 866 |
| Seat Tube Length | 466 | 496 | 521 | 546 | 576 | 606 |
| Seat Tube Angle | 75.5 | 74 | 74 | 73.5 | 73.5 | 73.5 |
