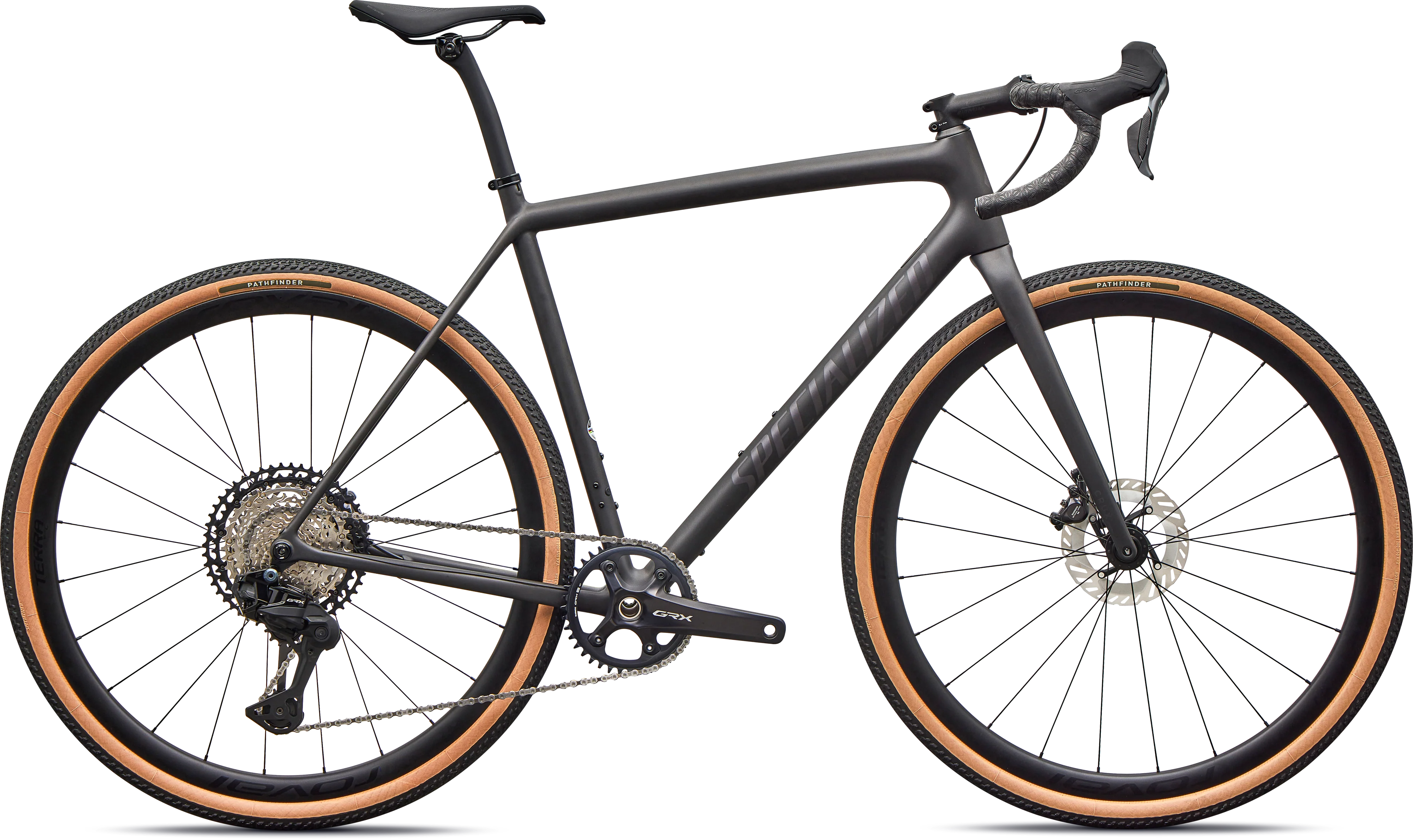

2026 Specialized Crux Expert Shimano GRX Di2

Product image 1

2026 Specialized Crux Expert Shimano GRX Di2

Details

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

This Crux Expert comes spec'd with all-new SRAM Rival XPLR AXS for effortless braking, lighter weight, with massive 13 speed gear range, lightweight and durable Roval Terra C Disc wheels, and 2Bliss Ready, 700x40mm Pathfinder Pro tires that hookup over nasty terrain.

  • Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
  • Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
  • Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.

Specs


Frameset

Frame
Crux FACT 10r Carbon, Rider First Engineeredℱ, threaded BB, 12×142mm thru-axle, flat-mount disc, UDH dropout

Fork
S-Works FACT Carbon, 12×100mm thru-axle, flat-mount disc

Suspension

Fork
S-Works FACT Carbon, 12×100mm thru-axle, flat-mount disc

Brakes

Front Brake
Shimano GRX 800, hydraulic disc

Rear Brake
Shimano GRX 800, hydraulic disc

Drivetrain

Rear Derailleur
Shimano GRX Di2 RD-RX827, 12-speed

Cassette
Shimano Deore XT CS-M8100, 10–51T, 12-speed

Crankset
Shimano GRX RX820, 40T

Bottom Bracket
Shimano threaded BSA

Chain
Shimano XT CN-M8100, 12-speed

Shift Levers
Shimano GRX Di2 RX825

Wheels & Tires

Front Wheel
Roval Terra C — carbon tubeless-ready rim, 25mm internal width, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes

Rear Wheel
Roval Terra C — carbon tubeless-ready rim, 25mm internal width, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes

Front Tire
Pathfinder 700×40, tubeless ready

Rear Tire
Pathfinder 700×40, tubeless ready

Inner Tubes
700×32–50mm, 40mm Presta valve

Cockpit

Saddle
Body Geometry Power Expert

Seatpost
Roval Terra Carbon, 20mm offset

Handlebars
Specialized Adventure Gear — 118.9mm drop, 70mm reach, 12° flare

Stem
Specialized Pro SL, alloy, 4-bolt

Seat Binder
Specialized alloy, 30mm

Bar Tape
Supacaz Super Sticky Kush

Product Details

Product ID: 293746
Weight (Size 56): 7.95 kg (17 lb 8.4 oz)

Geometry

49 52 54 56 58 61
Crank Length 165 170 172.5 172.5 175 175
Handlebar Width 380 400 420 420 440 440
Stem Length 70 80 90 100 110 110
Saddle Width 155 155 143 143 143 143
Seatpost Length 330 330 330 380 380 380
Stack 530 547 560 578 598 621
Reach 375 382 388 397 405 415
Head Tube Length 100 115 130 147 167 190
Head Tube Angle 70.5 71.25 71.5 72 72.25 72.5
BB Height 284 284 286 286 286 286
BB Drop 74 74 72 72 72 72
Trail 74 69 67 64 62 60
Fork Length, Full 401 401 401 401 401 401
Fork Rake/Offset 50 50 50 50 50 50
Front Center 594 600 608 618 630 644
Chainstay Length 425 425 425 425 425 425
Wheelbase 1008 1014 1023 1033 1045 1059
Top Tube Length, Horizontal 512 539 549 568 582 599
Bike Standover Height 749 772 794 816 841 866
Seat Tube Length 466 496 521 546 576 606
Seat Tube Angle 75.5 74 74 73.5 73.5 73.5
Select Color
Select Size
From $1,915.89

Original: $5,473.96

-65%
2026 Specialized Crux Expert Shimano GRX Di2—

$5,473.96

$1,915.89
