E-bike
- UI/Remote
- All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
- Motor
- All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
- Charger
- Specialized 4amp charger
- Battery
- 840Wh battery
Frameset
- Seat Binder
- Alloy, 38.6mm

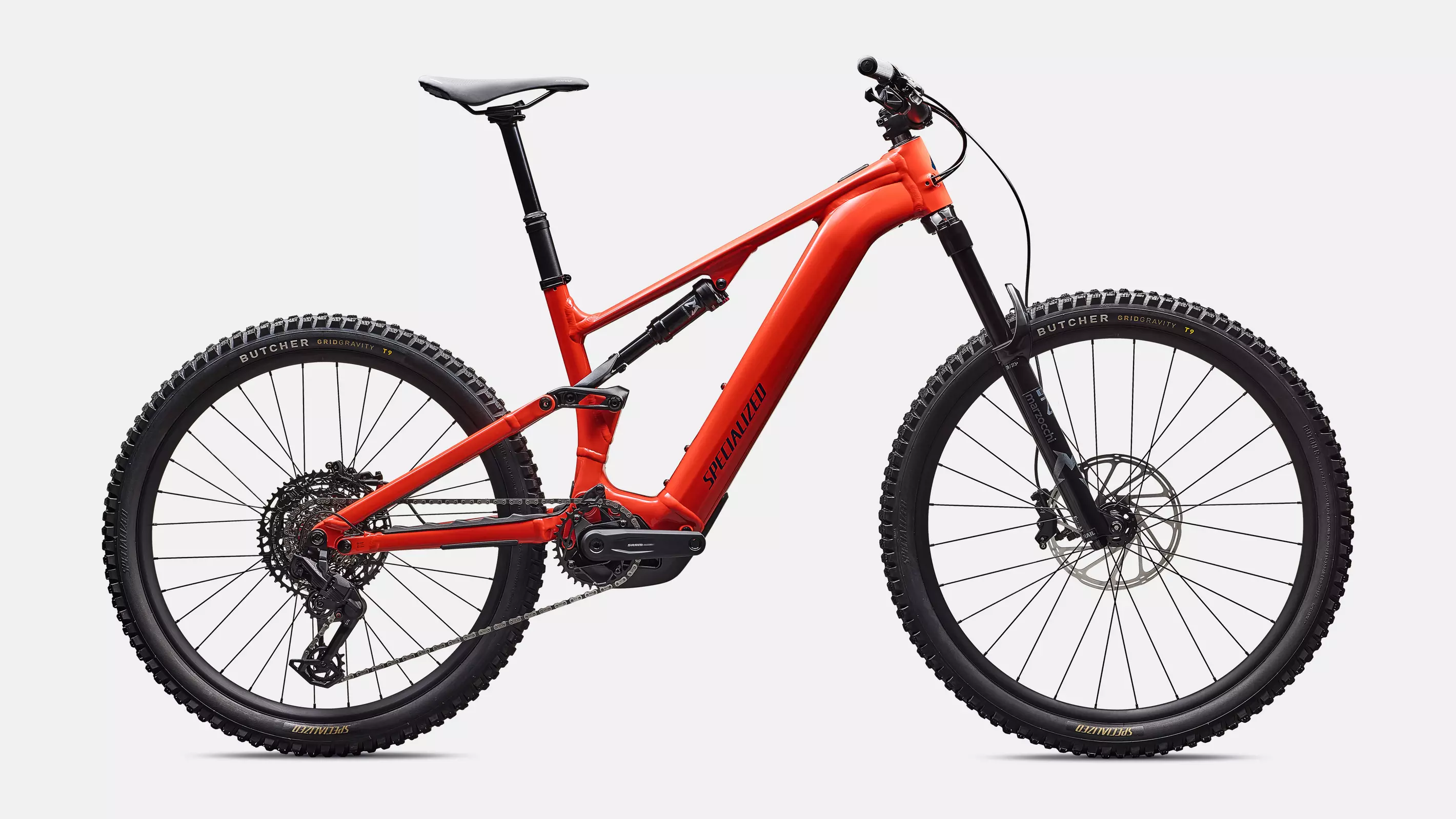

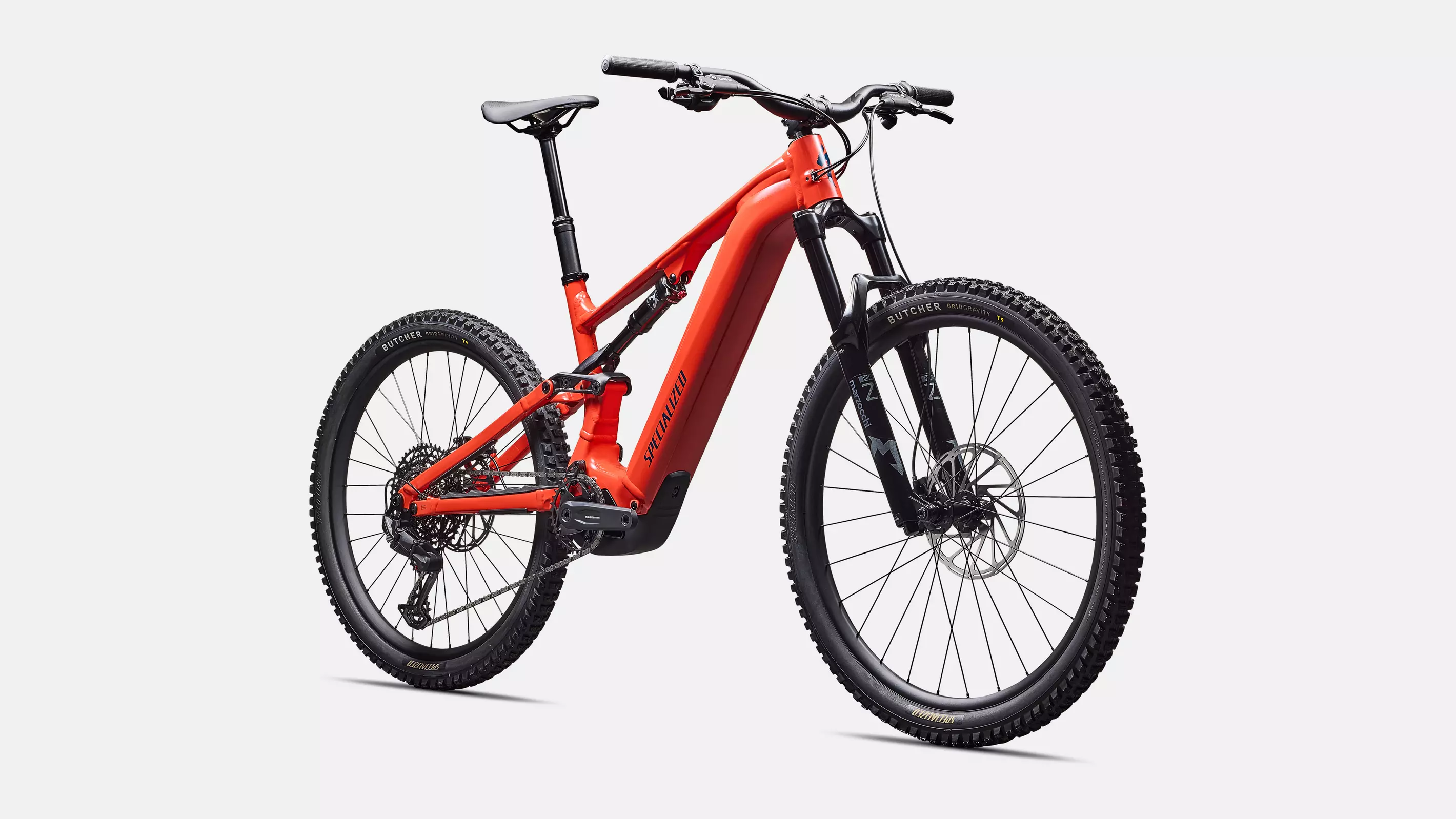

- Frame
- All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Suspension

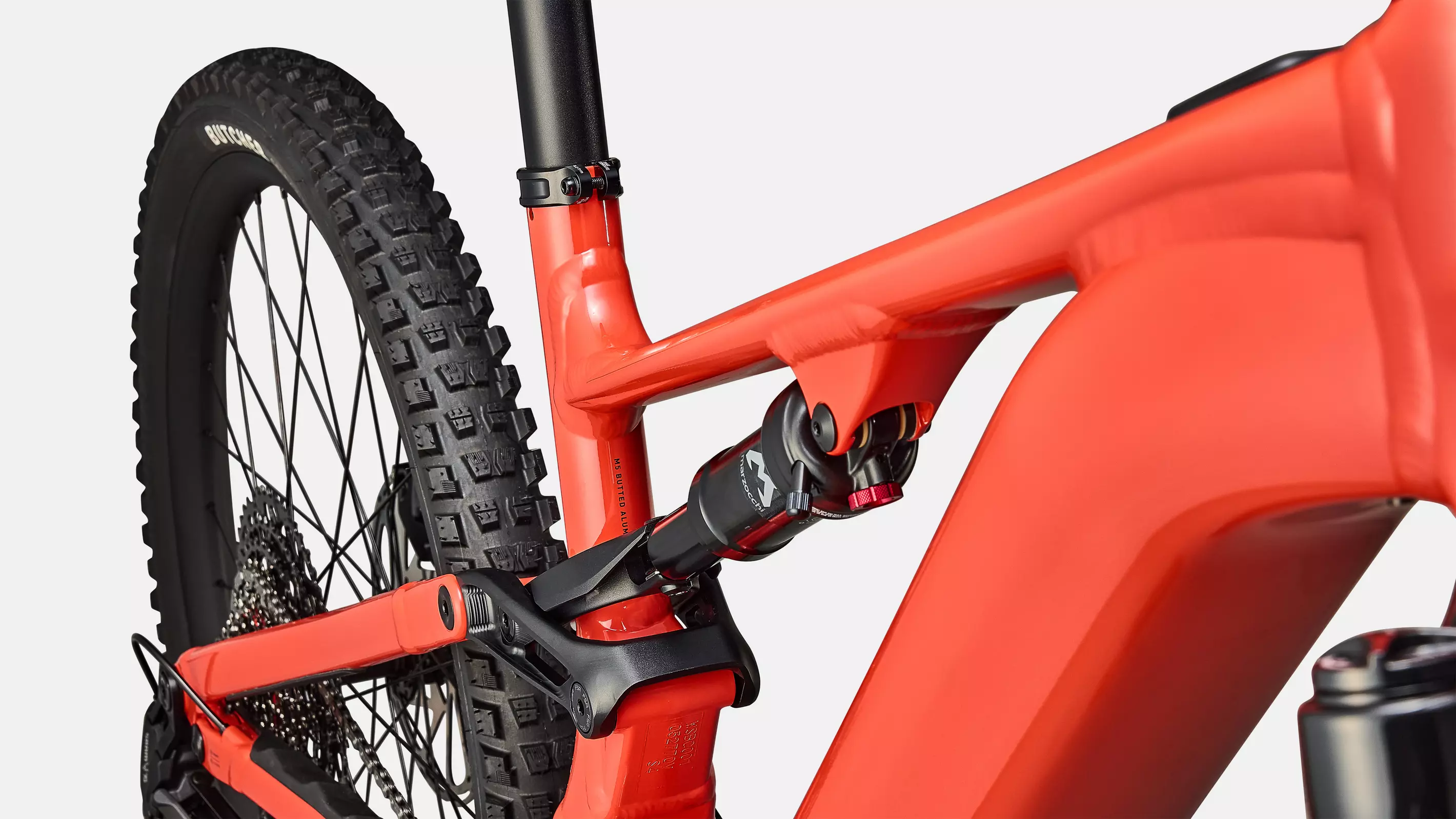

- Rear Shock
- *Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
- Fork
- Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Brakes
- Front Brake
- SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
- Rear Brake
- SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
- Cassette
- XS-1270, 12-speed, 10-52t
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- Chain
- SRAM Eagle 70 T-Type Flattop Chain
- Rear Derailleur
- SRAM Eagle 70 T-Type
- Shift Levers
- SRAM 70 trigger, 12-speed, single click
- Crankset
- SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Wheels & tires
- Rear Tire
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
- Front Tire
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
- Spokes
- DT Swiss Industry
- Front Hub
- Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Rear Hub
- Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
- Rims
- Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta valve
Cockpit
- Stem
- Alloy Trail Stem, 35mm bar bore
- Handlebars
- Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
- Saddle
- Body Geometry Bridge Saddle, steel rails
- Grips
- Specialized Trail Grips
- SeatPost
- TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm
Accessories
- SWAT
- SWAT internal downtube storage
Product details
- Product ID
- 221347
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 26.08 kg (57 lb, 7.8 oz)
- Weight Size
- S4
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Crank Length | 155 | 155 | 155 | 155 | 155 | 155 |
| Handlebar Width | 780 | 780 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 100 | 125 | 150 | 170 | 200 | 200 |
| Stack | 609 | 618 | 626 | 638 | 652 | 667 |
| Reach | 407 | 435 | 455 | 480 | 505 | 535 |
| Headtube Length | 94 | 95 | 103 | 117 | 132 | 149 |
| Headtube Angle | 64 | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| BB Height | 355 | 350 | 350 | 350 | 350 | 350 |
| BB Drop | 24.13 | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| Trail | 132 | 132 | 137 | 132 | 132 | 132 |
| Fork Length (full) | 567 | 577 | 577 | 577 | 577 | 577 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| Front Center | 744 | 765 | 789 | 820 | 851 | 888 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1179 | 1200 | 1223 | 1254 | 1286 | 1323 |
| Top-tube Length (horizontal) | 556 | 578 | 599 | 627 | 655 | 689 |
| Bike Standover Height | 753 | 753 | 754 | 753 | 758 | 761 |
| Seat Tube Length | 379 | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 76 | 77 | 77 | 77 | 77 | 77 |
| Saddle Height for Effective ST Angle | 645 | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion | 264 | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
