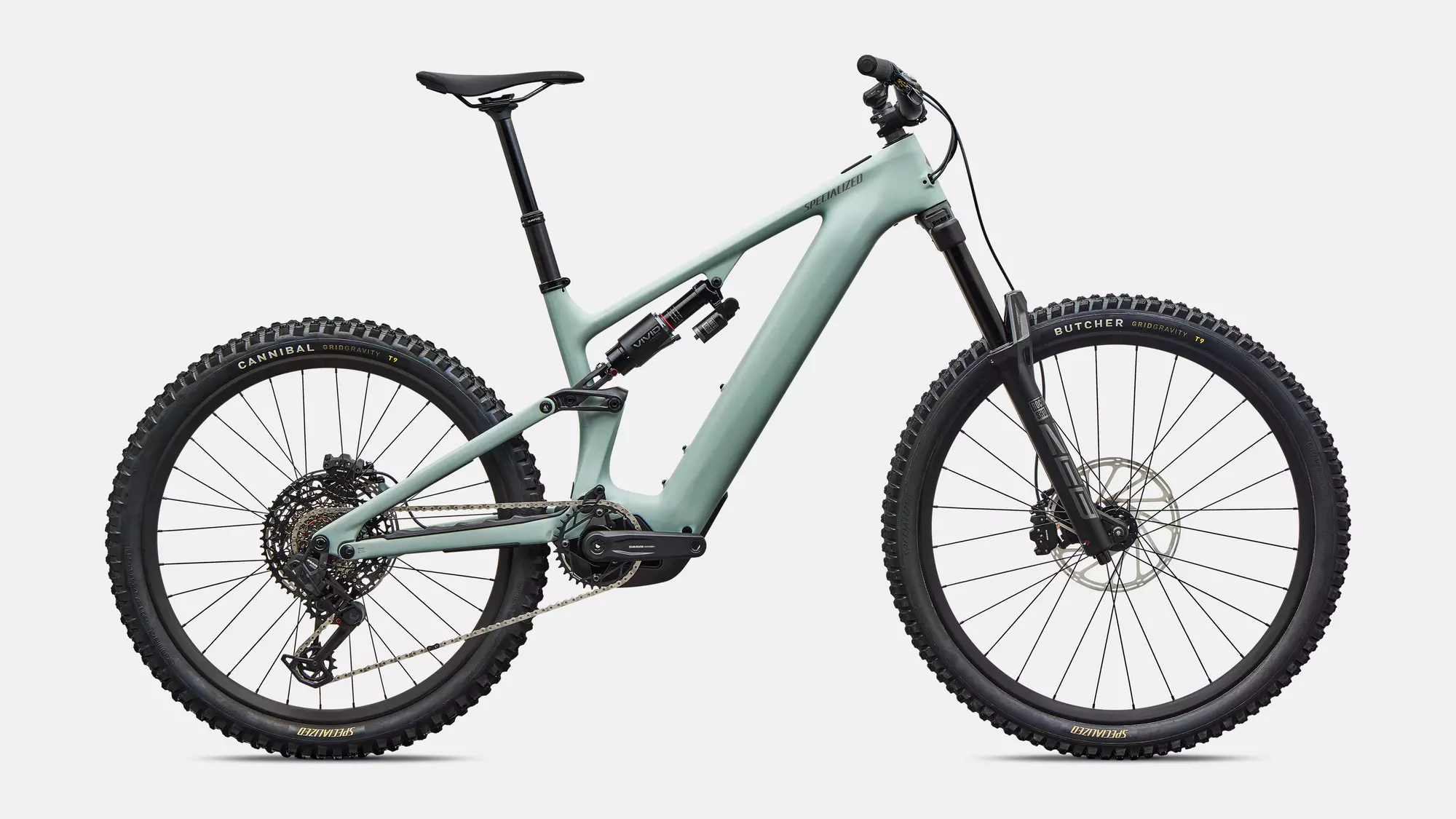

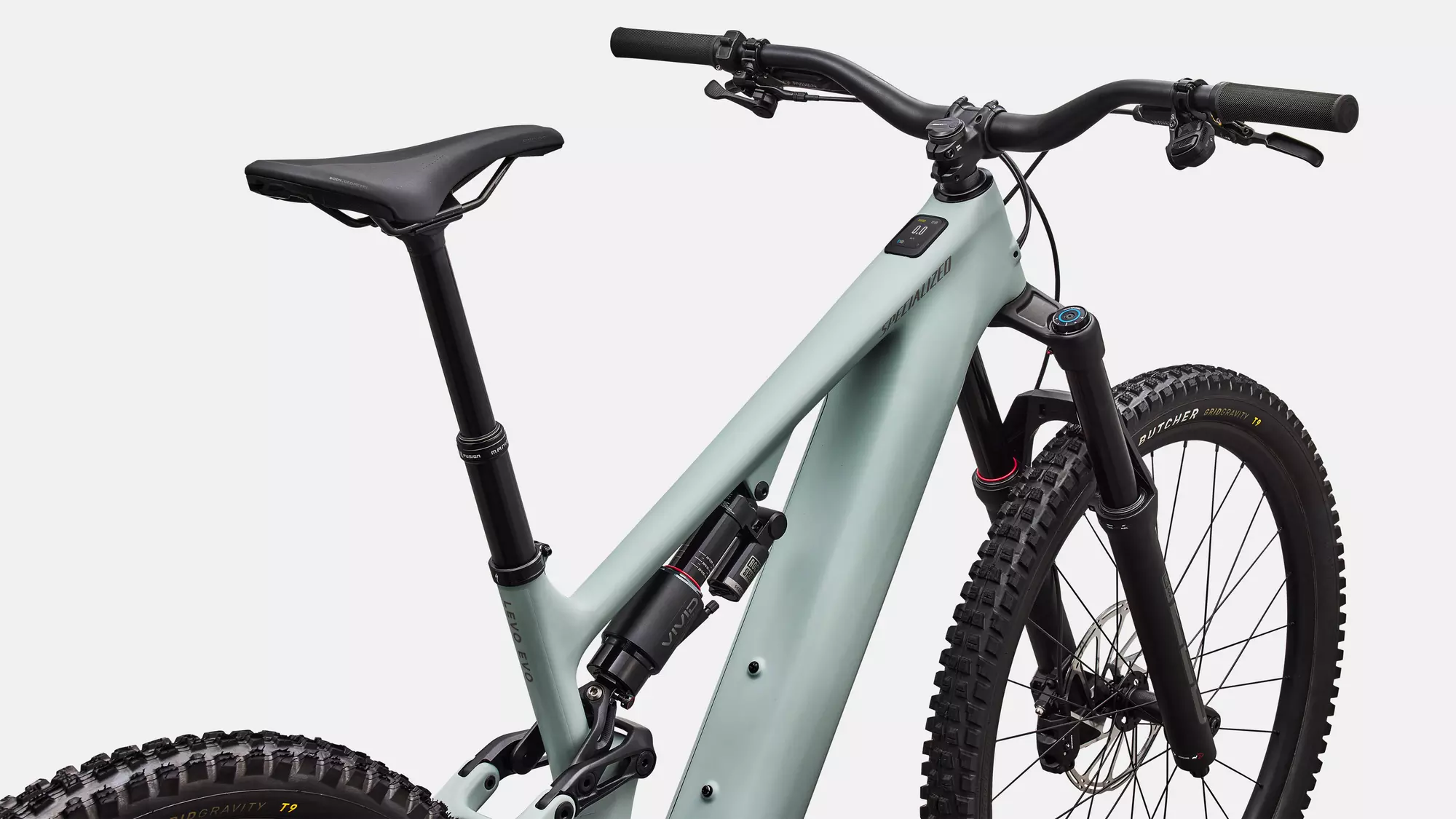

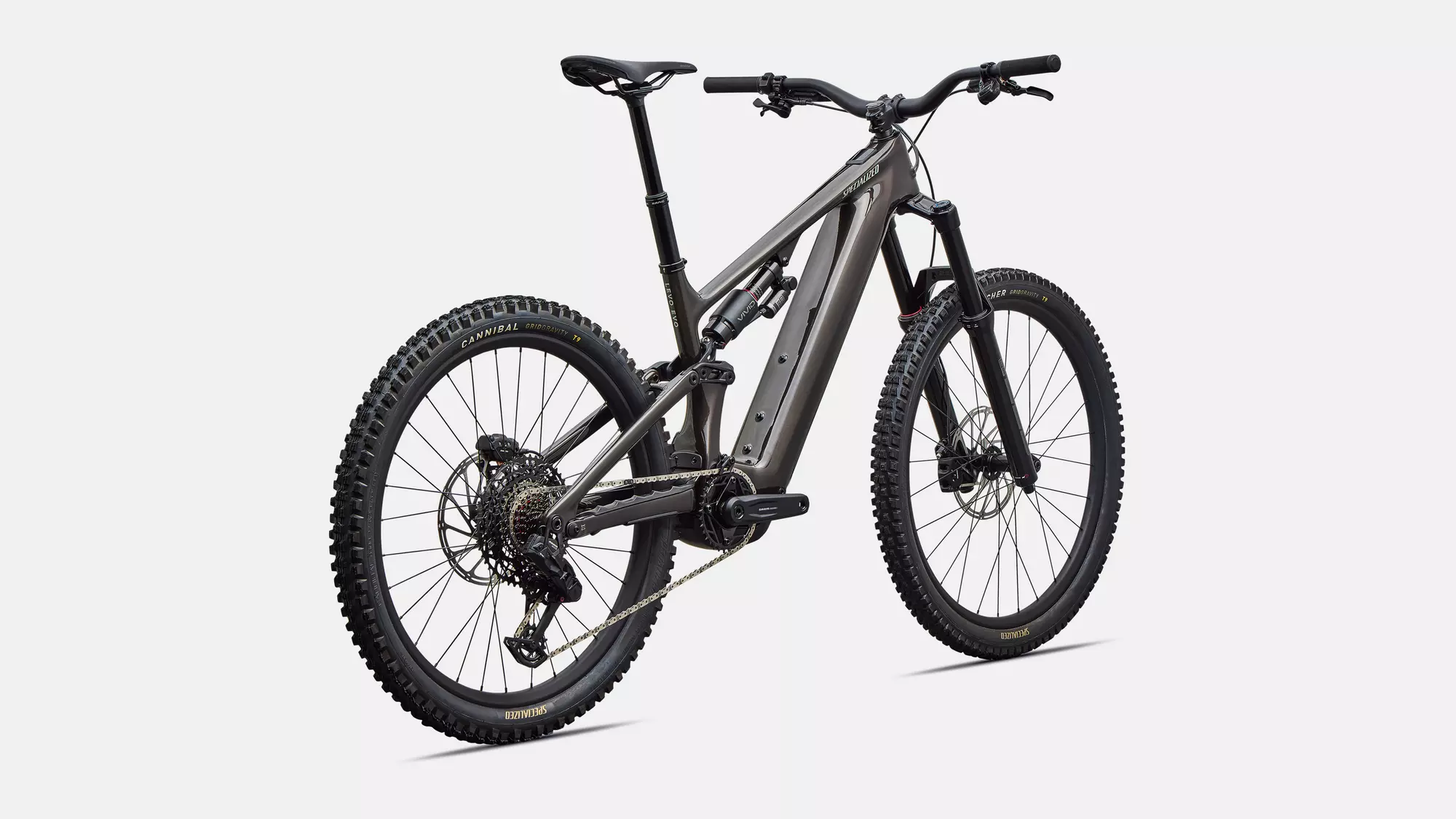

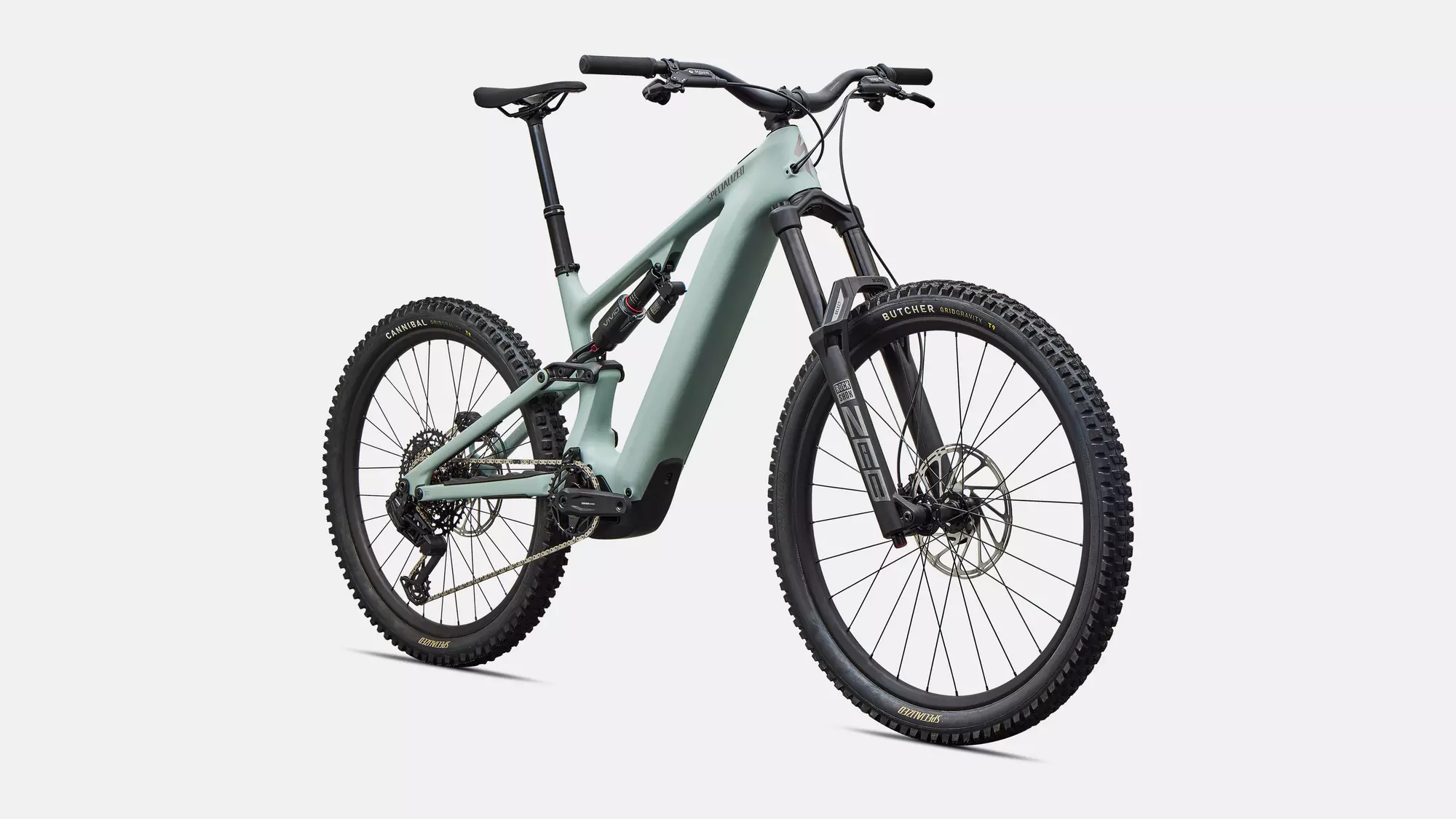

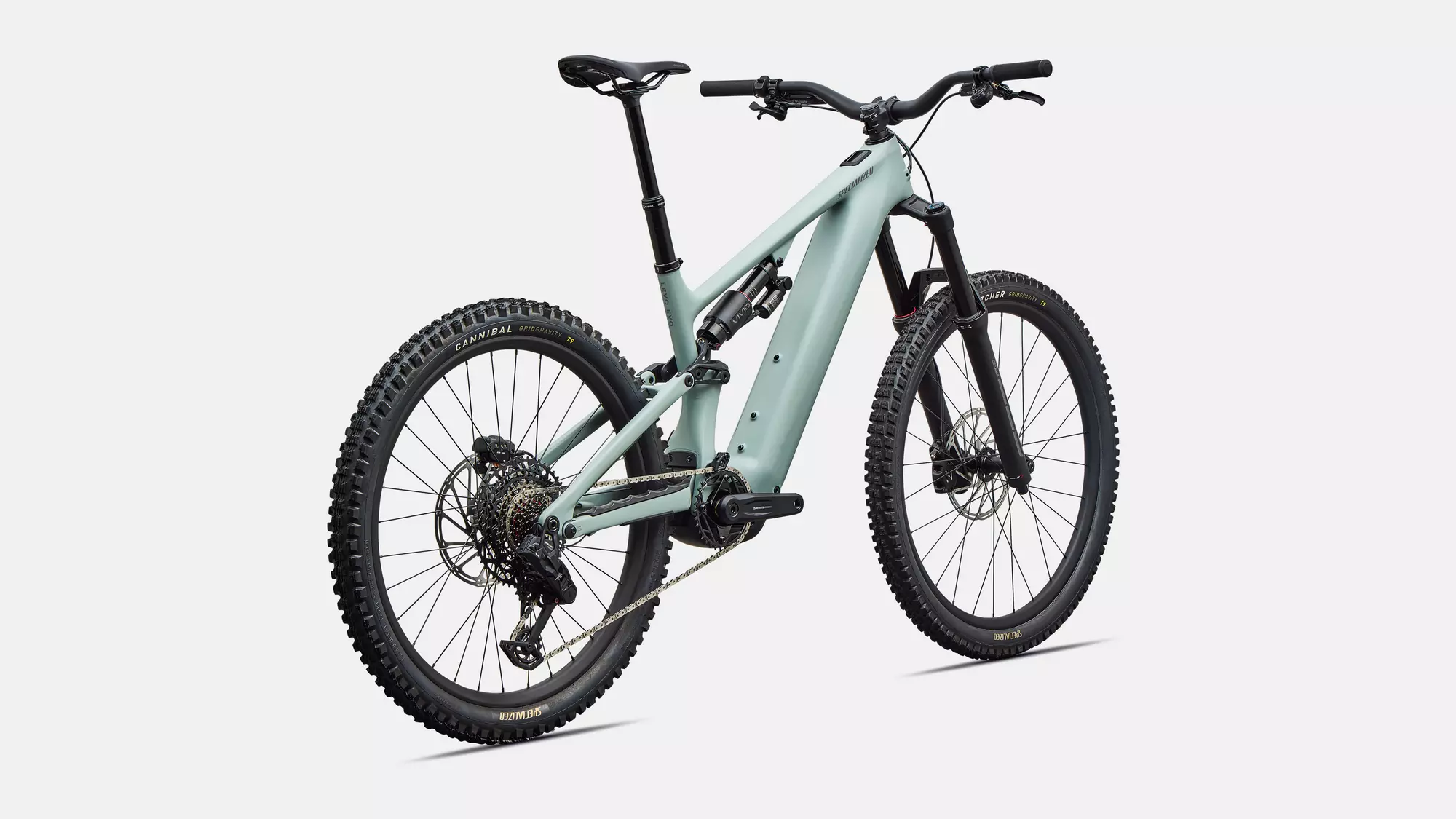

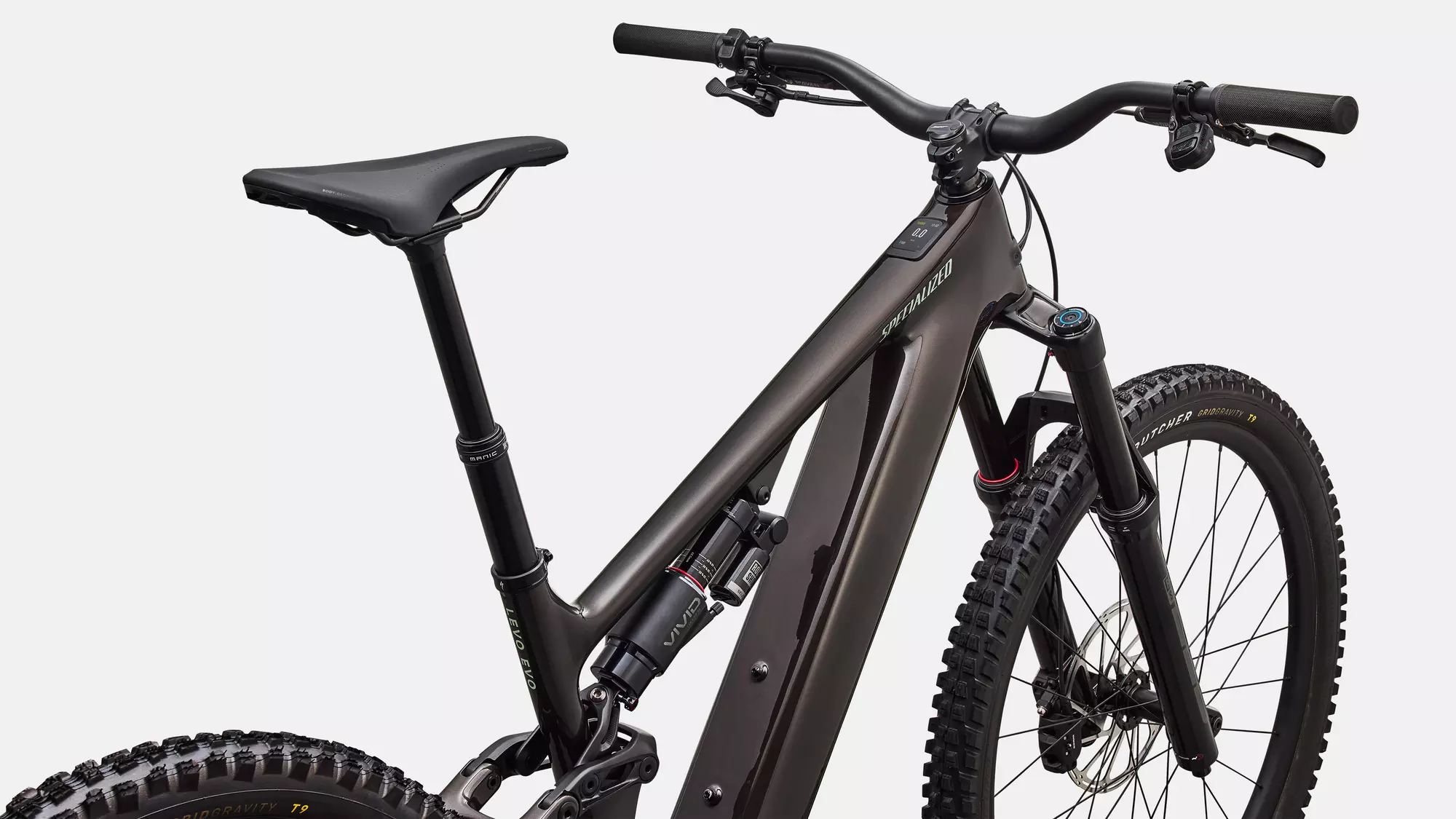

2027 Specialied Levo 4 EVO Comp
Levo 4 EVO Comp
SuperNatural Power, Capability, and Range
Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential.
This is Electric Enduro.
Technical Specifications
E-Bike
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
Battery
840Wh battery
UI/Remote
Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Charger
Specialized 4amp charger
Frameset
Frame
Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
All New Vivid Select air, 230x62.5mm, Linear XL spring, RT damper w/climb switch, rebound adjust
Fork
All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust
Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Drivetrain
Shift Levers
SRAM AXS Pod Controller w/discrete clamp
Rear Derailleur
SRAM S1000 Eagle AXS
Cassette
SRAM 12-speed,10-52t
Chain
SRAM GX Eagle Transmission 12-Speed Flattop Chain
Crankset
SRAM S1000 Alloy crank, ISIS interface, 155mm length
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tires
Rims
Specialized Alloy Rims
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Hub
Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HG Steel Fhb
Spokes
DT Swiss Elemental
Front Tire
Butcher, GRID Gravity, T9, TLR, 29x2.4"
Rear Tire
Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars
Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
Grips
Specialized Trail Grips
Saddle
Bridge Comp, Hollow Cr-mo rails 155/143
SeatPost
Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
Accessories
SWAT
SWAT Internal downtube storage
Product Details
Product ID
294787
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight
Weight
25.16 kg (55 lb, 7.5 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|
| Crank Length | 155mm | 155mm | 155mm | 155mm | 155mm |
| Handlebar Width | 780mm | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 40mm | 40mm | 40mm | 40mm | 40mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 125mm | 170mm | 200mm | 200mm | 200mm |
| Stack | 625mm | 633mm | 646mm | 659mm | 675mm |
| Reach | 425mm | 445mm | 470mm | 495mm | 525mm |
| Headtube Length | 95mm | 103mm | 117mm | 132mm | 149mm |
| Headtube Angle | 63.6° | 63.6° | 63.6° | 63.6° | 63.6° |
| BB Height | 356mm | 356mm | 356mm | 356mm | 356mm |
| BB Drop | 24mm | 24mm | 24mm | 24mm | 24mm |
| Trail | 139mm | 139mm | 139mm | 139mm | 139mm |
| Fork Length (full) | 597mm | 597mm | 597mm | 597mm | 597mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 773mm | 797mm | 828mm | 859mm | 897mm |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1208mm | 1232mm | 1263mm | 1294mm | 1331mm |
| Top-tube Length (horizontal) | 580mm | 602mm | 630mm | 658mm | 691mm |
| Bike Standover Height | 764mm | 765mm | 763mm | 768mm | 771mm |
| Seat Tube Length | 390mm | 405mm | 425mm | 445mm | 465mm |
| Seat Tube Angle | 76° | 76° | 76° | 76° | 76° |
| Saddle Height for Effective ST Angle | 690mm | 735mm | 780mm | 825mm | 870mm |
| Max Seatpost Insertion | 274mm | 289mm | 313mm | 337mm | 357mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm |
Original: $8,393.40
-65%$8,393.40
$2,937.69Product Information
